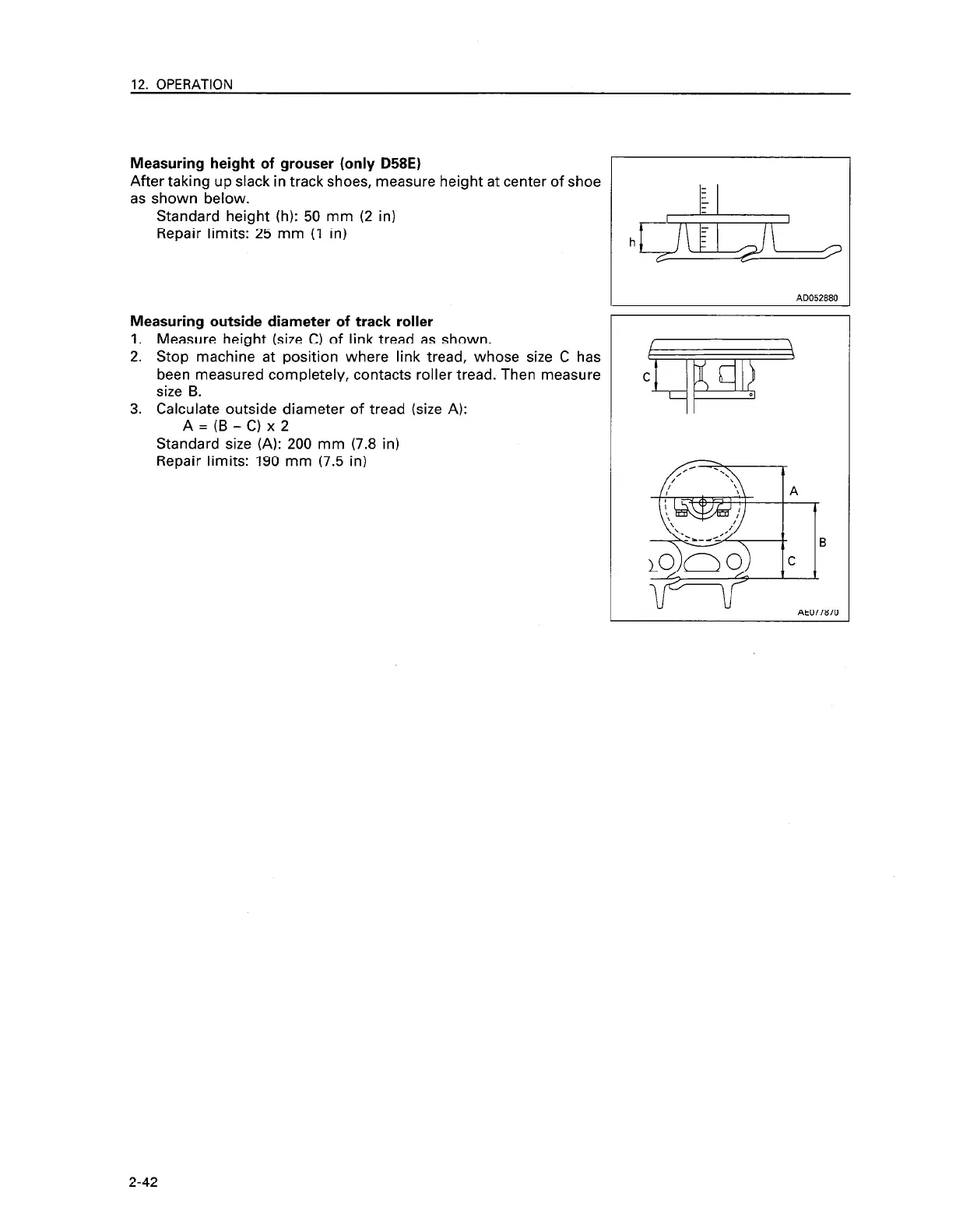

Measuring height of grouser (only D58E)
After taking up slack in track shoes, measure height at center of shoe
as shown below.
Standard height (h): 50 mm (2 in)
Repair limits: 25 mm (I in)
AD052880
Measuring outside diameter of track roller
1.
2.
3.
Measure height (size C) of link tread as shown.
Stop machine at position where link tread, whose size C has
been measured completely, contacts roller tread. Then measure
size B.
Calculate outside diameter of tread (size A):
A=(B-C)x2
Standard size (A): 200 mm (7.8 in)
Repair limits: 190 mm (7.5 in)
AE077870
1
2-42
