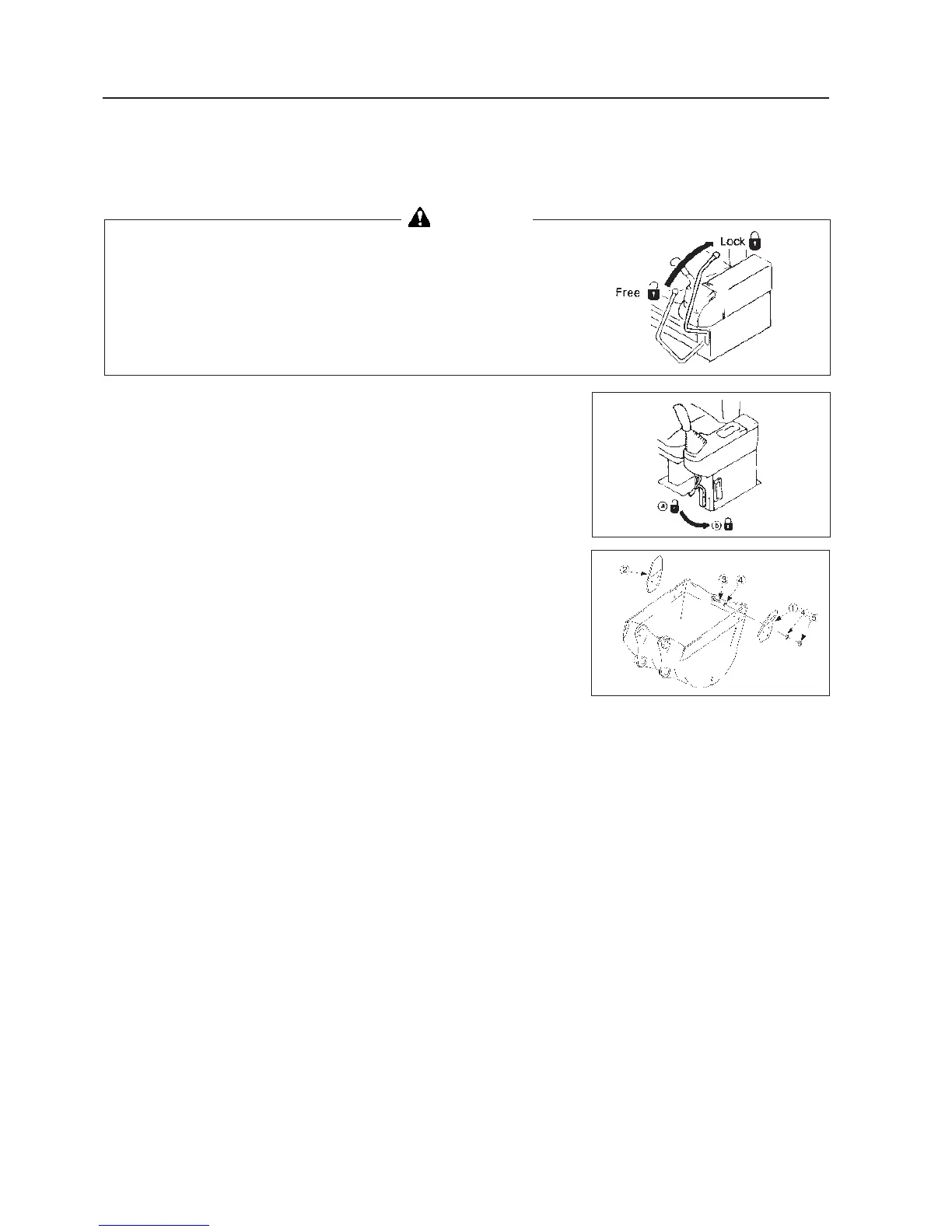

24.2.6 REPLACE BUCKET SIDE CUTTERS
It is dangerous if the work equipment moves by mistake when the
teeth are being replaced. Set the work equipment in a stable con-
dition, then stop the engine and apply the locks securely to the
levers.
1. Untighten nuts e and bolts c and remove side cutters a and b.
2. Clean cutter mounting face on bucket side plate.
3. Check nuts and bolts and replace if damaged.
4. Fit new side cutters.
5. Tighten bolts to 110 ± 10 kgm.
NOTICE
When side cutters are not being used shrouds f should be fitted to
prevent wear of the bucket side plate.
