2-23
PC210/240-ENG

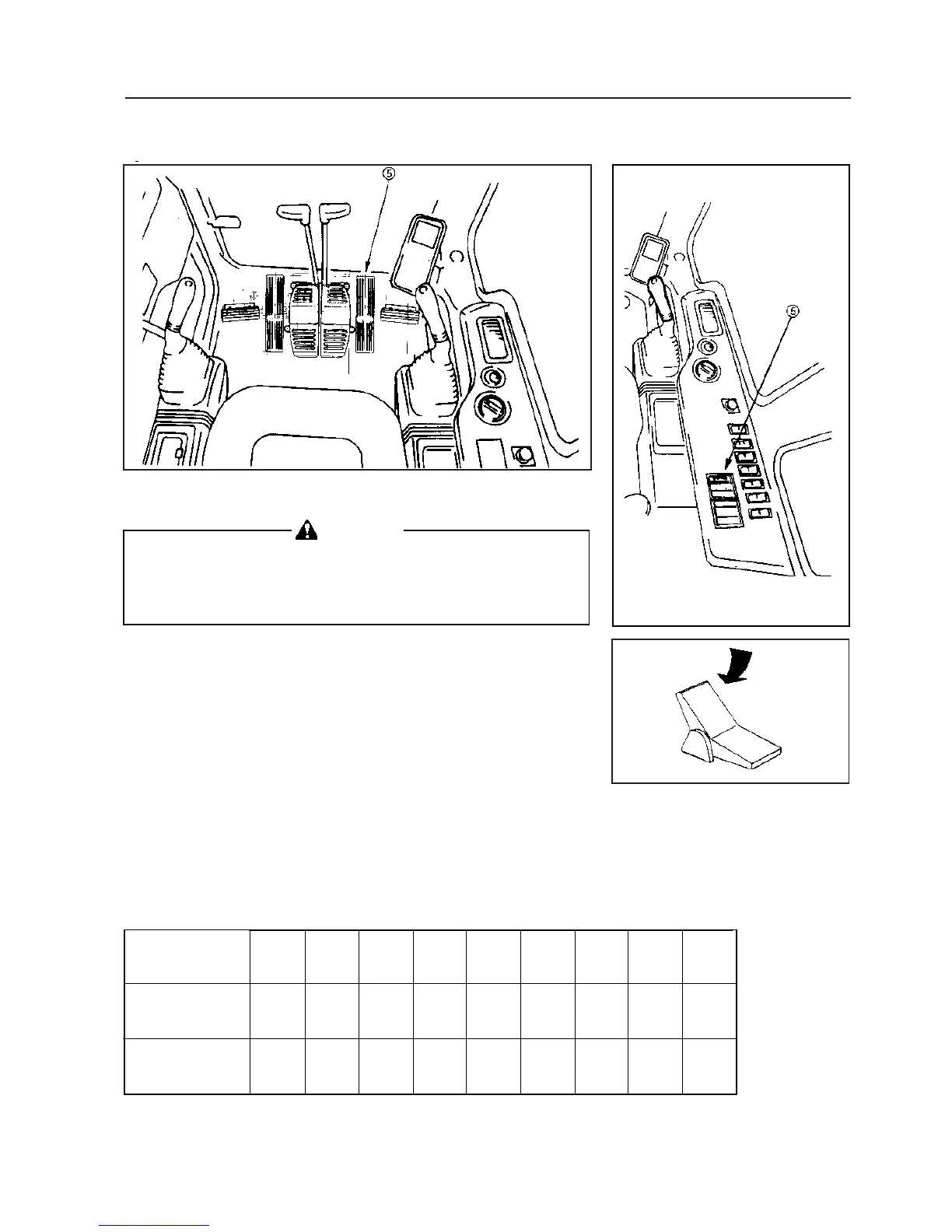

5. ATTACHMENT CONTROL PEDAL
WARNING
Do not put your foot on the pedal except when operating the
pedal. If resting your foot on the pedal during operation, and it is
depressed by accident, by accident the attachment may move
suddenly and cause serious damage or injury.
When breaker is installed
• When the front part of the pedal is depressed, the breaker is actu-
ated.
• Set the working mode to the breaker (B.O).
When general attachment is installed
• When the pedal is depressed, the attachment is actuated.
• The right hand switch panel has a ten position thumb-wheelswitch.
This allows nine values of flow for the right hand foot pedal and no
flow at position zero. When selecting switch positions, the RH foot
pedal must be fully released before beginning work at the new flow
setting.
• Please note your prefered switch position against attacment used for
your future reference.
• Adjustment of these range of flows is possible.
Contact your Komatsu dealer if required.
11. EXPLANATION OF COMPONENTS
Approximate
Maximum Flow
(L/min)
Attachment
Switch
Position
123456789
30 50 100 125 150 170 202 280
Full
Flow
