Operating and Control Elements

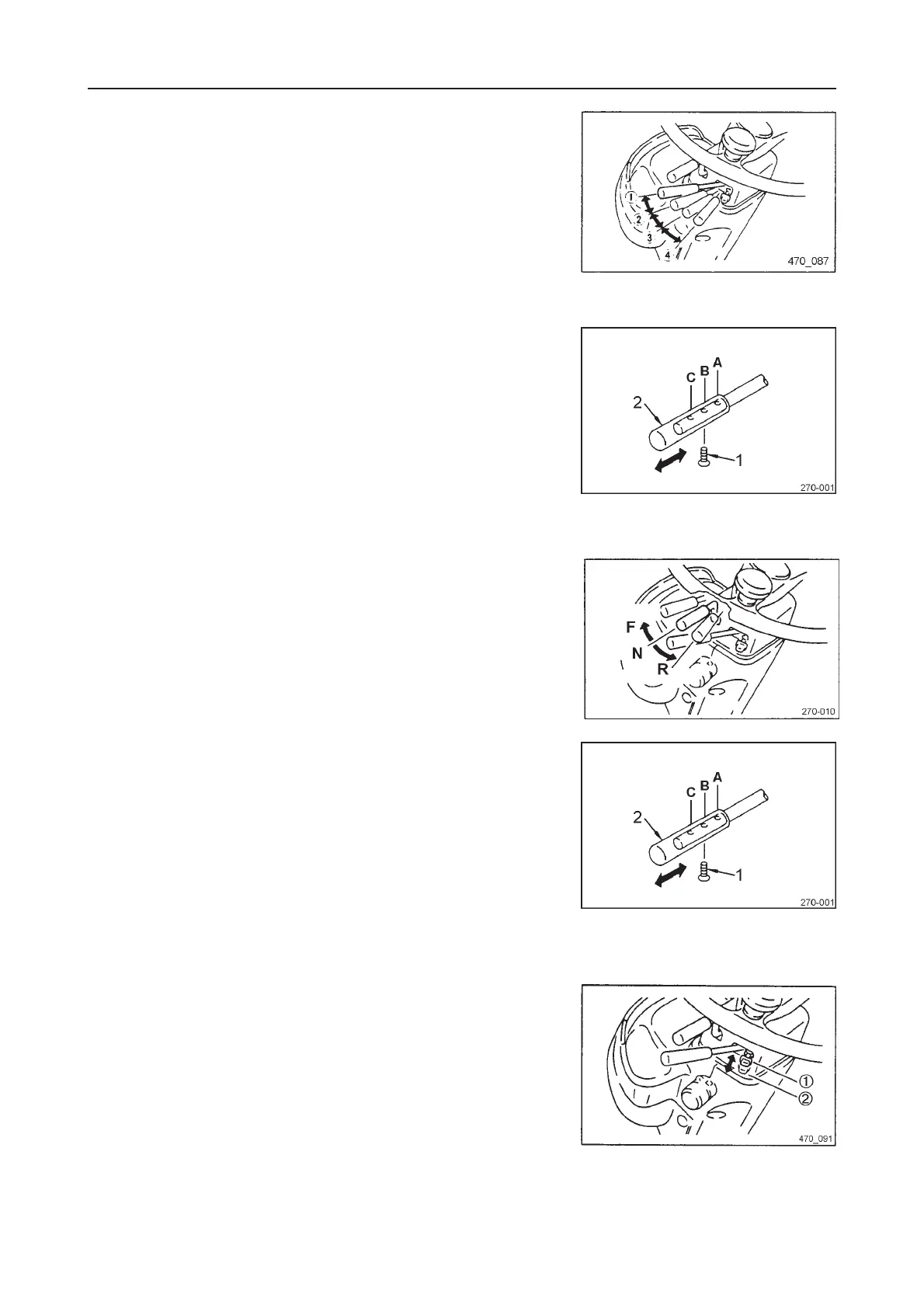

1. CONTROL LEVER
This lever is used to select the machine speed.
The machine is provided with an automatic gear-shift transmission with
four forward gears and three reverse gears.
Set the lever to the appropriate position for the required speed range.
Position (1): 1st forward and reverse gear
Position (2): 2nd forward and reverse gear
Position (3): 3rd forward and reverse gear
Position (4): 4th forward and 3rd reverse gear
Working range: 1st and 2nd gear
Transport range: 3rd and 4th gear
The 3rd and 4th gears can be blocked using a gear-shift lever limit-stop.
ADJUSTING THE LENGTH OF THE GEAR-SHIFT LEVER
The gear-shift lever can be adjusted to three lengths (positions A, B and
C). To adjust it, remove the screw (1), push the lever end section (2) to
the required position and retighten the screw.
2. DRIVING DIRECTION LEVER
Use this lever to change the driving direction.
The engine can only be started, if the driving direction lever - or the driving
direction switch - is in its the neutral position (N).
F Forward
N Neutral
R Reverse
IMPORTANT
If your machine is equipped with a multifunctional lever, it is
provided with a driving direction switch instead of a driving direction
lever.
Adjusting the length of the driving direction lever
The lever can be adjusted to three lengths (positions A, B and C). To
adjust it, remove the screw (1), push the lever end section (2) to the
required position and retighten the screw.
3. SWITCH LEVER LIMIT-STOP
This limit stop blocks the 3rd and 4th gear.
Position (1): Limit stop activated
Position (2): Limit stop switched off
