SECTION 2 - SET-UP & OPERATIONS
PODIUM KP3
SECTION 2
Set-Up & Operations
Overview
In Section 2, Set-Up
& Operations, describes addressing the
installation, setting up the machine and
operations.
This section covers the following topics:
•
Physical
Specications
•
Environmental
Specicati
ons
•
Unpacking and Inspecting
•
Candle (Signal Tower) Installation
•
Drop Box Door Switch
•
Slot Accounting System
•
Opening and Closing Doors
•
Lock Installation
•
Setting the Hopper Level Probe
•
Installing Coin Acceptor Sample Coins
•
Bill Validator Options
•
Power-Up
•
Random-Acces
s Memory
(RAM) Clearing
•
Option Settings

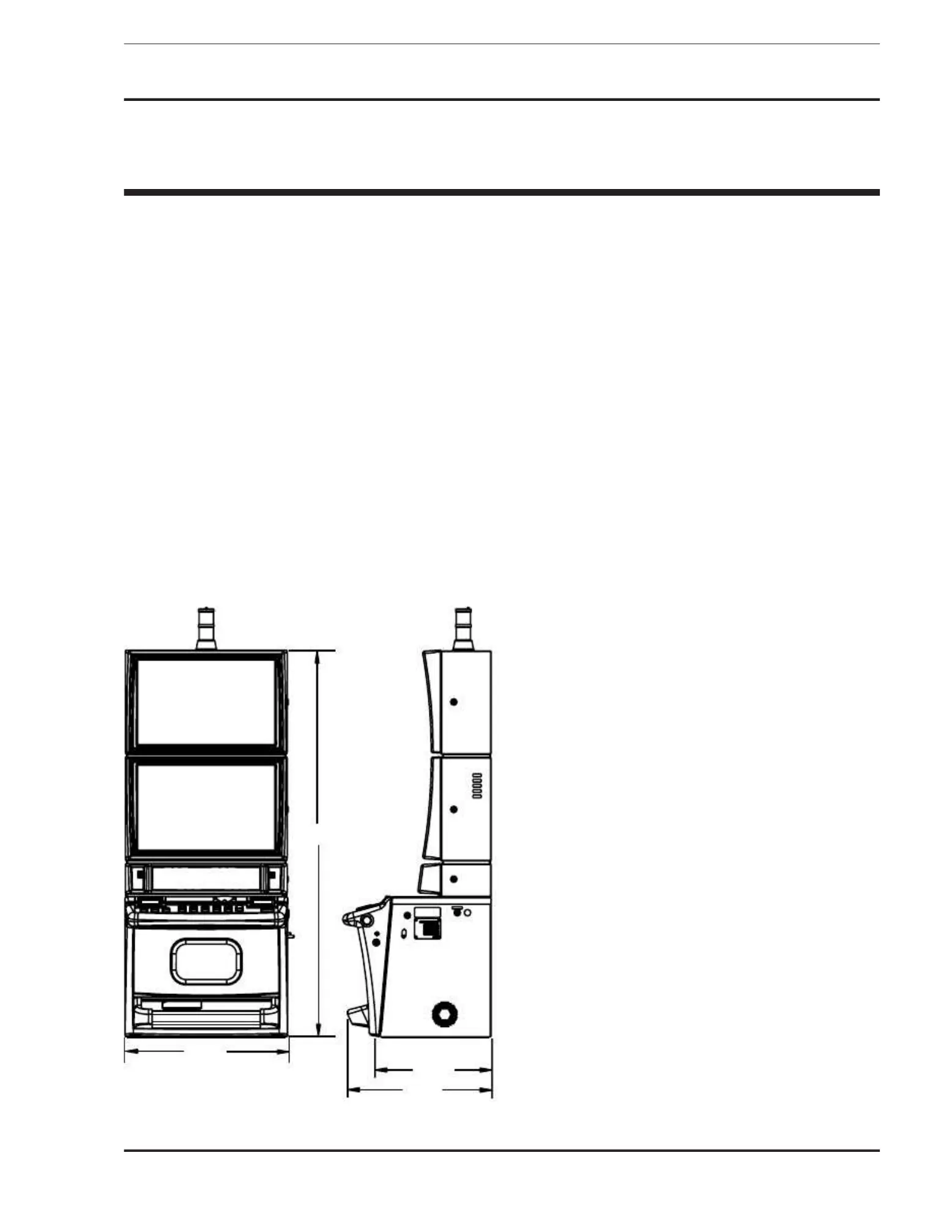

HEIGHT
WIDTH
 DEPTH
(CABINET)
DEPTH
(AT COIN BOWL)
Physical Specications
Cabinet Specifications
•
Height
(Extended
T
op)
52.39"
133.0cm
•
Height
(Tombstone
T
op)
54.39"
138.3cm
•
Height
(Short
T
op)
45.00"
114.3cm
•
Depth
(At
Coin
Bowl)
19.44"
49.4cm
•
Depth
(Cabinet
Only)
15.00"
38.1cm
•
Width
(Cabinet)
22.00"
55.9cm
•
Weight
234.5
lbs
516kg
Environmental Specications
Line Voltage Input: 100–240 VAC, 50 or 60 Hz.
The following calculations are based on an input voltage of
120 VAC:
•
Power supply input voltage 110 VAC: 108–120 VAC
(nominal 120 VAC) at 50/60 Hz.
•
Power supply output voltage: +12 VDC, +24 VDC.
•
Current draw at
rest: 1.83 A (220 W).
•
Current draw during game play: 1.9 A (228 W).
•
Maximum operating ambient temperature: 104° F
(40° C).
•
Minimum operating ambient temperatu
re: 32° F
(0° C).
•
Maximum surface ambient temperature: 105° F (41.5° C).
•
Minimum surface ambient temperature: 32° F (0° C).
•
Maximum relative humidity: 95%
(non-condensin
g).
Unpack and Inspect
Unpack and inspect the machine before power is
turned on. If
the machine has been damaged during shipping, contact your Konami
Distributor
, or
Konami Customer Service Representative, depending
on warranty and sales contract terms.
For Return
Merchandise Autho
rization (RMA) information, see
Section 1 of this manual.
Carefully unpack and remove all loose parts and shipping
materials. Inspect components for damage. Verify the power
cord is
properly routed out of
the cabinet. Verify all wire connectors are rmly
seated. Check all display areas for signs of
broken glass or bulbs.
