9
100 mm(3.94 in) or more
(space for heat rediation)
100 mm(3.94 in)
or more
100 mm(3.94 in)
or more
Place the rifle unit to keep its scope away
from direct sunlight or other strong light.
ENGLISH

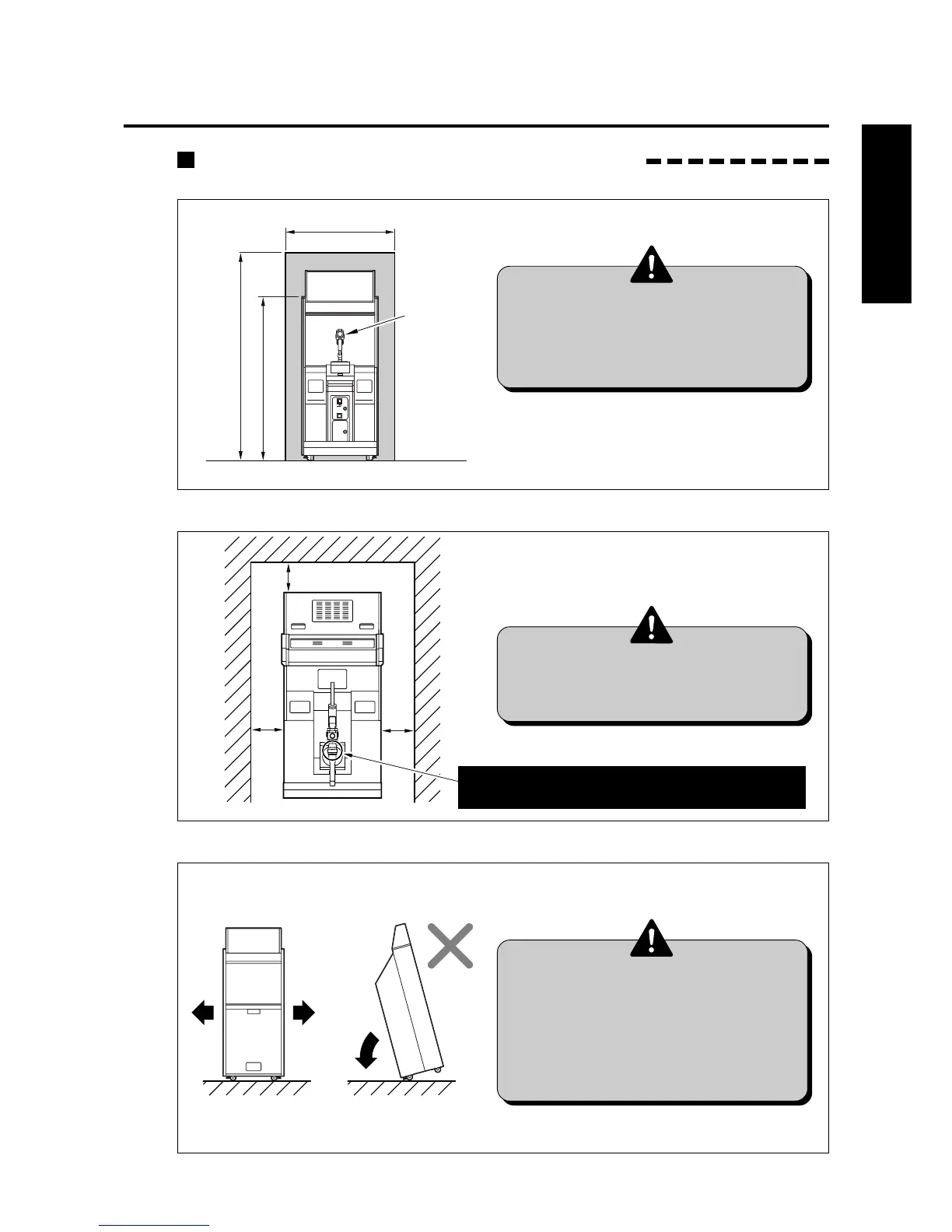

Allowance for Carrying-in and Installation of Product
The following allowance dimensions are necessary for carrying the product indoors.
Provide a space of the following dimensions for installation of the product.
•Install the product more than 100
mm(3.94 in) away from the wall
and other products.
•Do not apply a strong force for
moving the machine.
•Do not hold the rifle unit when
moving the machine.
ENGLISH
Follow the instructions below when carrying in this product with its units disconnected.
•When moving the monitor unit, be
sure to push it along sideways (to
the right or left). When moving it
on a slope or getting it over a level
difference, be sure to take the
buddy system.
•To move the monitor unit, be sure to push
it in either of the directions of arrow.
2040 mm(80.3 in) or more
816 mm(32.1 in) or more
Rifle unit
1800 mm(70.9 in) or more
Never move the monitor
unit tilted backward.
It is hazardous.
1 Specifications
