6 INSTALLATION
6.1 General
This section provides detailed information required to
successfully install an IS15 Instrument System utilising the IS15
Combi, IS15 Multi and IS15 Compass instruments. It also
describes the interconnection with an IS15 Wind System and the
connection to peripheral equipment.
6.2 Mounting of Instrument Head
The instrument head is fully waterproof from the front and can,
therefore, be installed on deck or below. The connections at the
rear should be protected from water ingress. The position
selected should, in the first instance, meet the requirements of
the helmsman, or crew.

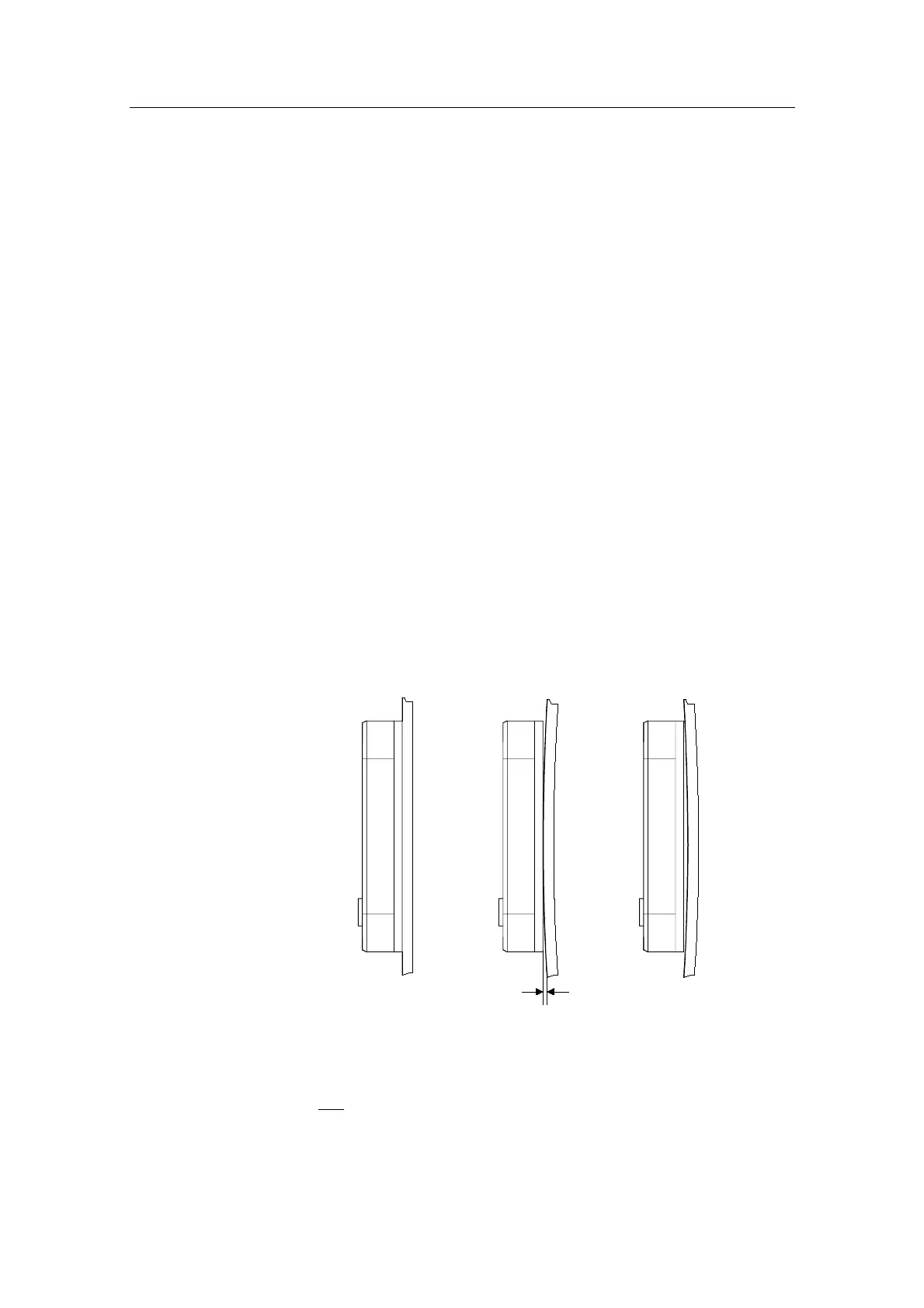

The selected surface for the instrument head must be flat and
even to within 0.5 mm.
Before installation, note the Serial Number of the unit and keep
it in a safe place.
0.5 mm max.
✓✗ ✗
Figure 6-1 - Installation
1. Do not remove the protection film on the display before the
installation and setup is completed.
2. Carefully position the self-adhesive template provided on the
surface where the display head is to be mounted.
