Installation
20220760I 69
Interconnections
Connection between the instrument head and the IS15
Transceiver is made by the 10 m (33’) Roblink cable supplied
with the Transceiver.
Connect the Roblink cable between one of the three Roblink
sockets on the IS15 Transceiver and the PWR-ROBLINK socket
(1) on the display head.
Interconnection between instrument heads is made by the
supplied 0.3 m Roblink cable. Refer to Figure 6-5
Interconnection diagram on page 66.
6.8 NMEA connections
General
Note ! The NMEA port on the IS15 instruments is unidirectional, i.e. it
is automatically configured for input (listening) or output
(talking). Thus you will need a minimum of any two instrument
heads to make the system both ‘listen’ and ‘talk’ (I/O).
Roblink cables have to be ordered separately for NMEA
connections (see page 67).

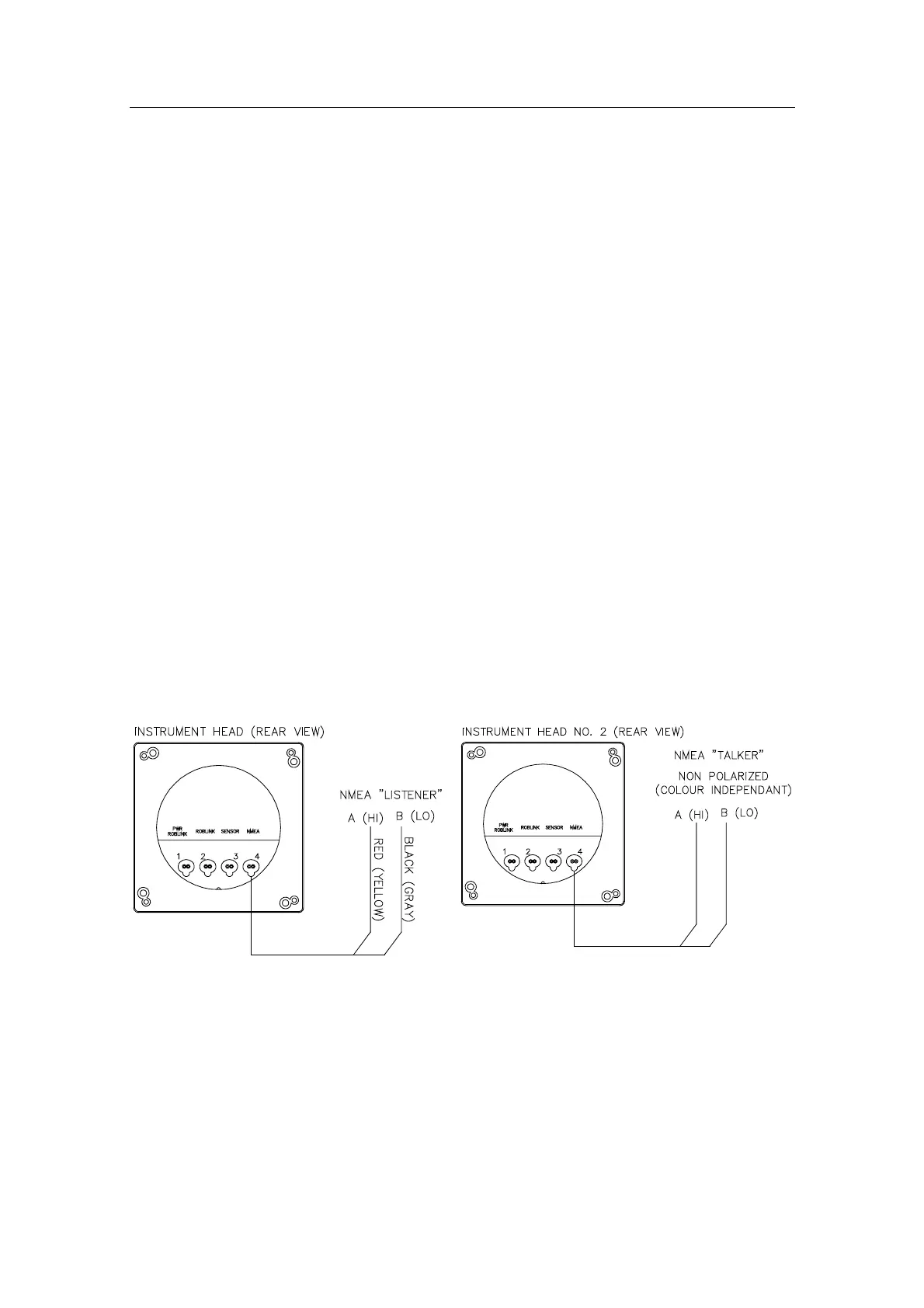

Figure 6-9 NMEA out
Figure 6-10 NMEA in
Use no other connector than no. 4.
