Kongsberg SIMRAD IS15 - System Layout and Connections

Installation
20220760I 63

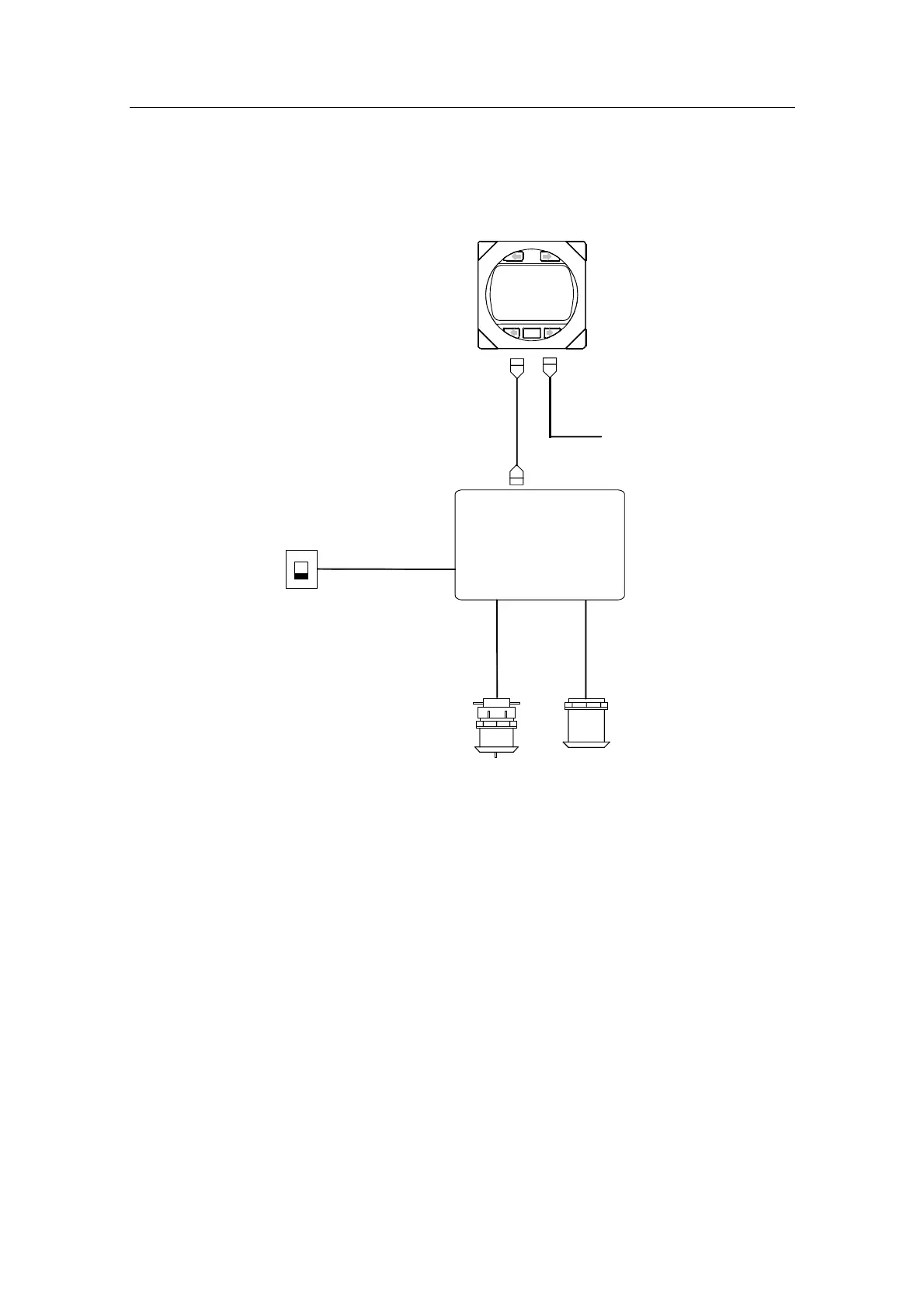

6.3 System layout
Basic SDT-1 System
Speed/temp
transducer
Depth
transducer
Supply 10,8-15,6VDC
SIMRAD
IS15 Combi
10 m (33')
10 m (33')
10 m (33')
IS15
Transceiver
NMEA from GPS/Chart plotter
Circuit breaker
***
*
**
Denotes Roblink
cable with connector
Optional extra
Figure 6-3 IS15 Combi (Tri-data) System layout
The SDT-1 system is capable of displaying Speed, Depth and
Temperature on a single IS15 Combi instrument head. It can also
display navigation data from a GPS receiver/Chart plotter via the
NMEA input. (Please order separate cable).
The transducers come with 10 m (33’) cable as standard. The
IS15 transceiver comes with a 10 m (33’) Roblink cable as
standard to connect to the instrument head.
