Kongsberg Simrad Mk3 - Processor Unit Rear Panel Description: HT20470 (DC Version)

110-0001063/A
19
ProcessorUnitrearpaneldescription:
HT20470(DCVersion)

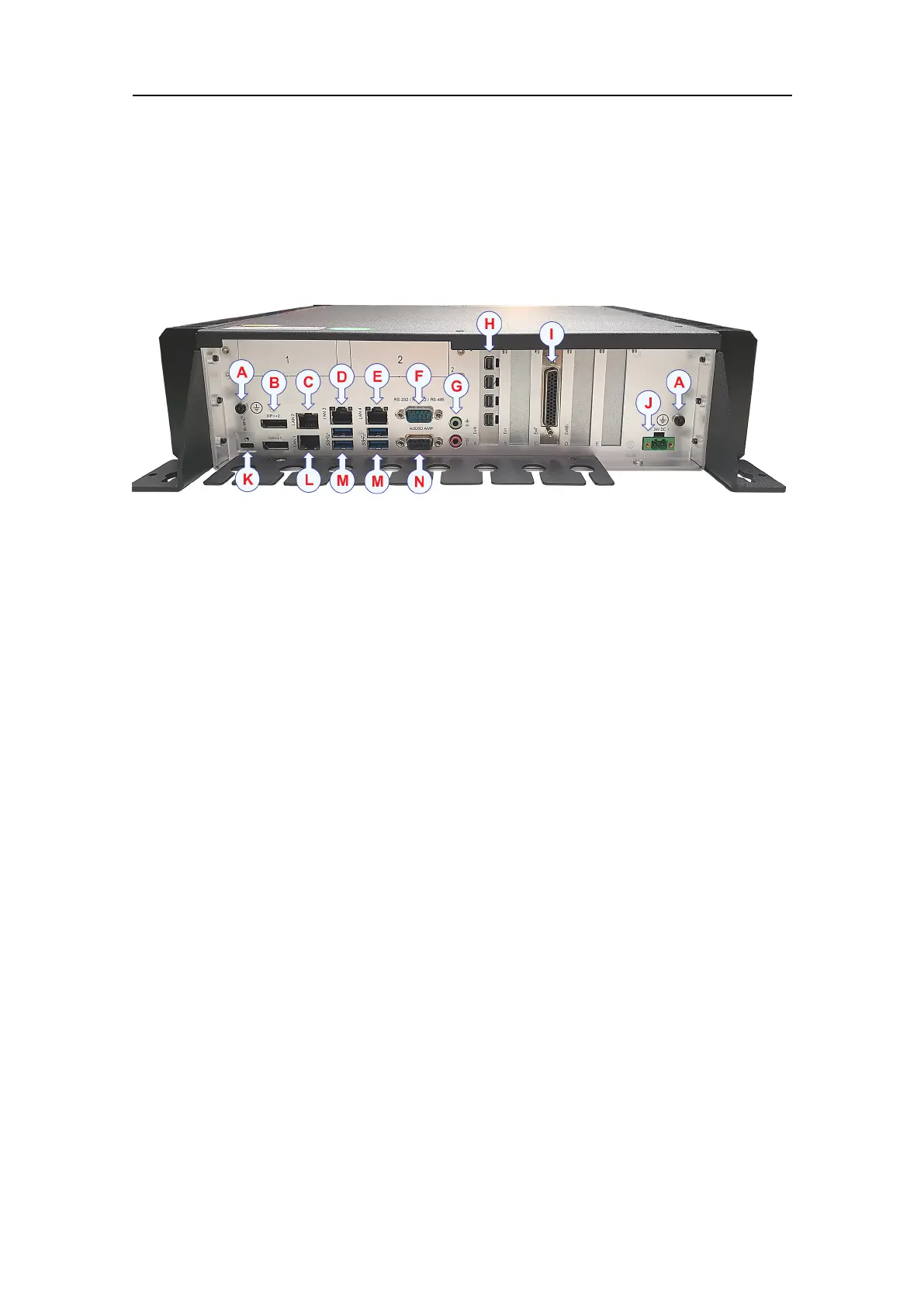

TherearpaneloftheProcessorUnitholdsthepowersocketandmultipleinterfaceports.
AGround
BGraphicsadapter(Notused)
CEthernetconnector(LAN2)
DEthernetconnector(LAN3)
EEthernetconnector(LAN4)
FSerialport(COM5)
GAudioinput/output
HGraphicsadapter(Mini
DisplayPorts)
ISerialports(COM1-4)
JDCpowersocket
KUSB-Cport(Notused)
LEthernetconnector(LAN1)
MUSB3.0ports
NPoweredaudiooutput
Ethernetconnectors
ThepurposeofeachEthernetconnectorispredened.
LAN1Spare
Notused.
LAN2Shipnetwork
Usethissocketifyouwanttoconnectyoursonarsystemtotheship’slocalarea
network(LAN).
LAN3SimradConnect
UsethissocketforEthernetcommunicationwithotherSimradproducts.TheMk2
OperatingPanelmustbeconnectedtothisEthernetsocket.
LAN4Sonarroom/Transceiver
UsethissocketforEthernetcommunicationwiththerelevantsonarsystemunitin
thesonarroom.Itisveryimportantthatahigh-qualityEthernetcableisused.You
mustuseCAT-5ESTP(ShieldedTwistedPair)qualityorbetter.Usingcableswith
lowerbandwidthcapacitywillreduceperformance.
