Kongskilde SUC-E 100 - Page 9

9

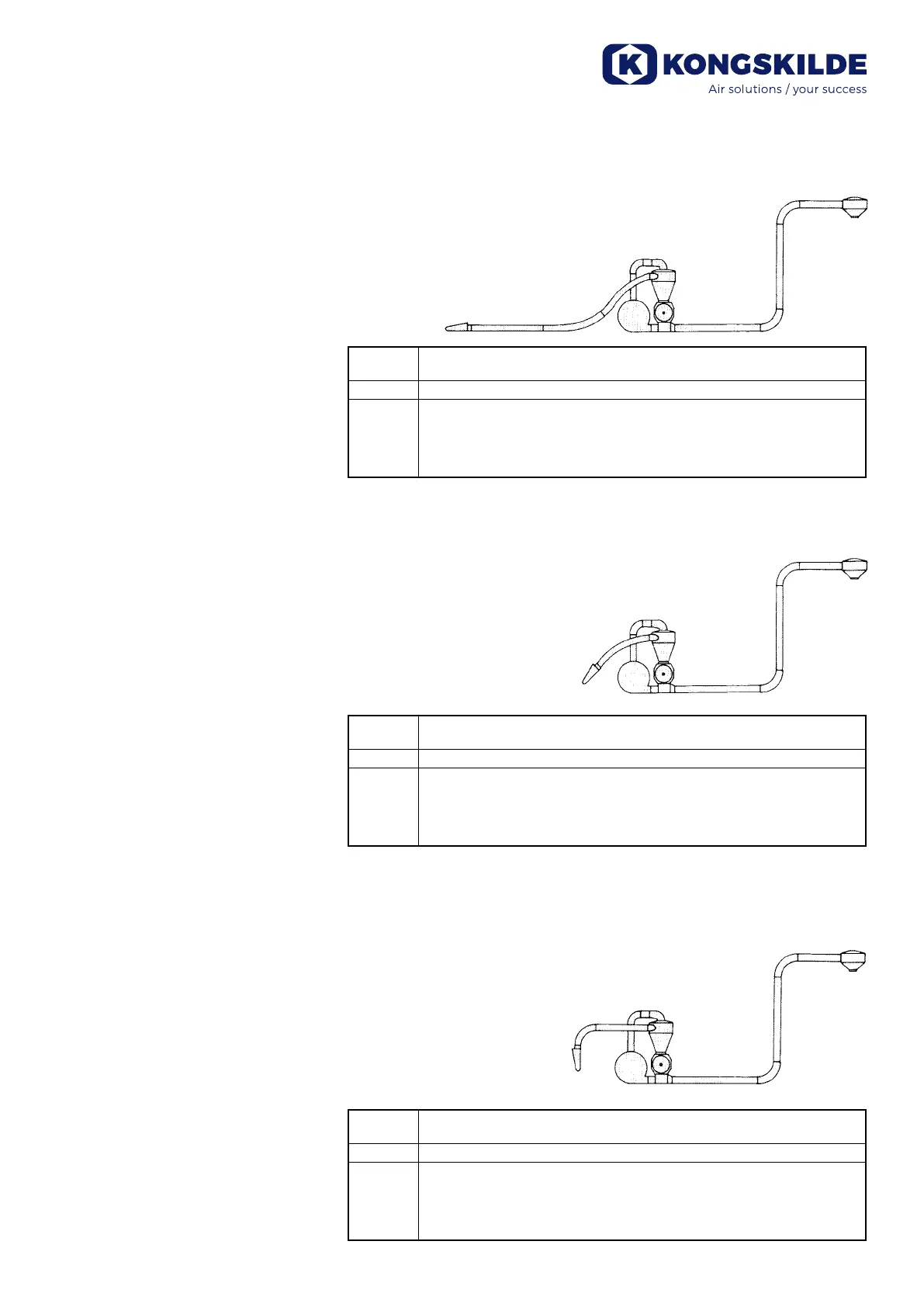

Table 4
Suction pipeline
One horizontal universal suction
head
One 2.5 m polyurethane suction
hose, straight
Two2msteelexiblesuction
hoses
Pressure pipeline
A number of metres of horizontal
piping
4 m vertical piping
Two 90° bends
One outlet cyclone
Table 6
Suction pipeline
One vertical universal suction head
One 90° bend
2 m horizontal piping
Pressure pipeline
A number of metres of horizontal
piping
4 m vertical piping
Two 90° bends
One outlet cyclone
Table 5
Suction pipeline
One horizontal universal suction
head arranged at an angle of 45°
One2msteelexiblesuctionhose
Pressure pipeline
A number of metres of horizontal
piping
4 m vertical piping
Two 90° bends
One outlet cyclone
Conveying Conveying capacities in wheat, rape and peas (t/h)
distance
(metres) 10 20 30 40 50 60 80 100 120 150 200
SUC 100E 4.0 3.6 3.2 2.8 2.5 2.2 1.7 1.3 0.9 0.4
SUC 150E 7.1 6.5 5.9 5.5 5.0 4.6 3.9 3.3 2.8 2.1
SUC 200E 9.1 8.4 7.8 7.2 6.7 6.3 5.4 4.7 4.1 3.3 2.3
SUC 300E 12.7 11.7 10.8 10.1 9.4 8.7 7.6 6.7 6.0 5.0 3.7
SUC 500E 20.3 19.0 17.8 16.7 15.8 14.9 13.3 12.0 10.9 9.5 7.6
Conveying Conveying capacities in wheat, rape and peas (t/h)
distance
(metres) 10 20 30 40 50 60 80 100 120 150 200
SUC 100E 6.7 5.8 5.1 4.5 3.9 3.4 2.6 2.0 1.4 0.8
SUC 150E 11.2 10.1 9.1 8.2 7.4 6.7 5.6 4.6 3.9 2.9
SUC 200E 14.4 13.0 11.8 10.7 9.8 9.0 7.6 6.5 5.6 4.4 3.0
SUC 300E 19.1 17.2 15.5 14.2 13.0 11.9 10.2 8.8 7.6 6.3 4.6
SUC 500E 30.9 28.2 25.8 23.7 22.0 20.4 17.8 15.7 13.9 11.9 9.3
Conveying Conveying capacities in wheat, rape and peas (t/h)
distance
(metres) 10 20 30 40 50 60 80 100 120 150 200
SUC 100E 7.1 6.2 5.4 4.7 4.1 3.6 2.7 2.0 1.5 0.8
SUC 150E 12.1 10.7 9.6 8.6 7.8 7.0 5.8 4.8 4.0 3.0
SUC 200E 15.4 13.9 12.5 11.3 10.3 9.4 7.9 6.7 5.8 4.6 3.1
SUC 300E 20.4 18.2 16.4 14.9 13.6 12.5 10.6 9.1 7.9 6.4 4.7
SUC 500E 33.2 30.1 27.4 25.1 23.1 21.4 18.6 16.3 14.4 12.2 9.5
Conveying capacities in wheat, rape and peas
