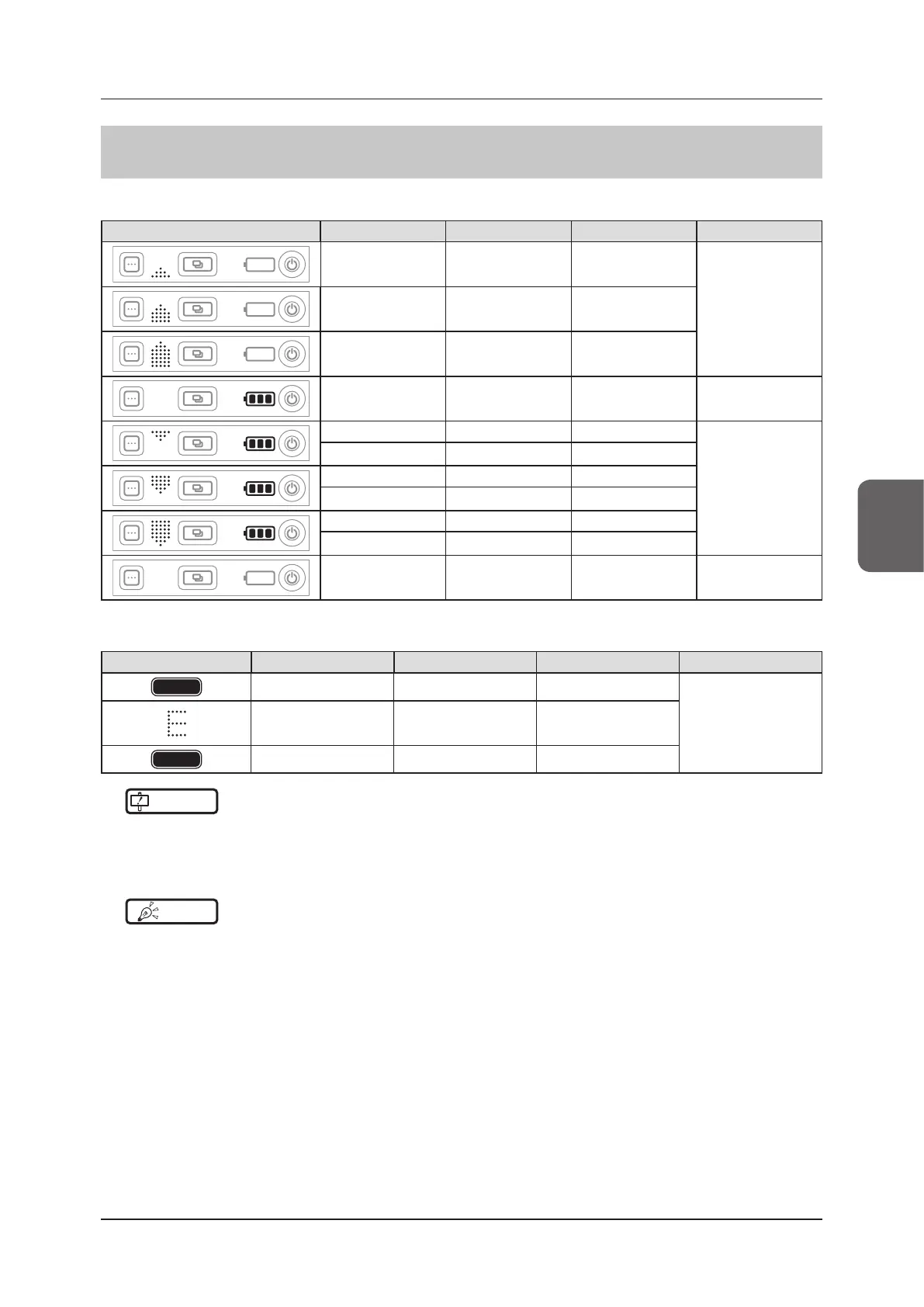

4.1.3 AeroDR 3 1417HD/AeroDR 3 1717HD/AeroDR 3 1012HQ
Startup/shutdown LED display patterns
Display pattern
LED
Lighting color Lighting pattern Status
Information LED White Fast ashing
Startup condition
Information LED White Fast ashing and on
Information LED White Fast ashing and on
Battery LED Blue or Orange On or Flashing Startup completed
Information LED White Fast ashing
Shutdown condition
Battery LED Blue or Orange On or Flashing
Information LED White Fast ashing and on
Battery LED Blue or Orange On or Flashing
Information LED White Fast ashing and on
Battery LED Blue or Orange On or Flashing
- - O󰀨
Shutdown complet-
ed
Startup/shutdown LED display patterns
Display pattern
LED
Lighting color Lighting pattern Status
Mode LED Orange On
Error occurred
Information LED White Flashing very fast
Status LED Orange On
IMPORTANT
•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
When an error occurs, all 3 LEDs, which are the Mode LED, Information LED and Status LED, light or ash at the
same time.
•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
HINT
•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
The Battery LED changes according to the level of battery power of the DR Detector.
•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
