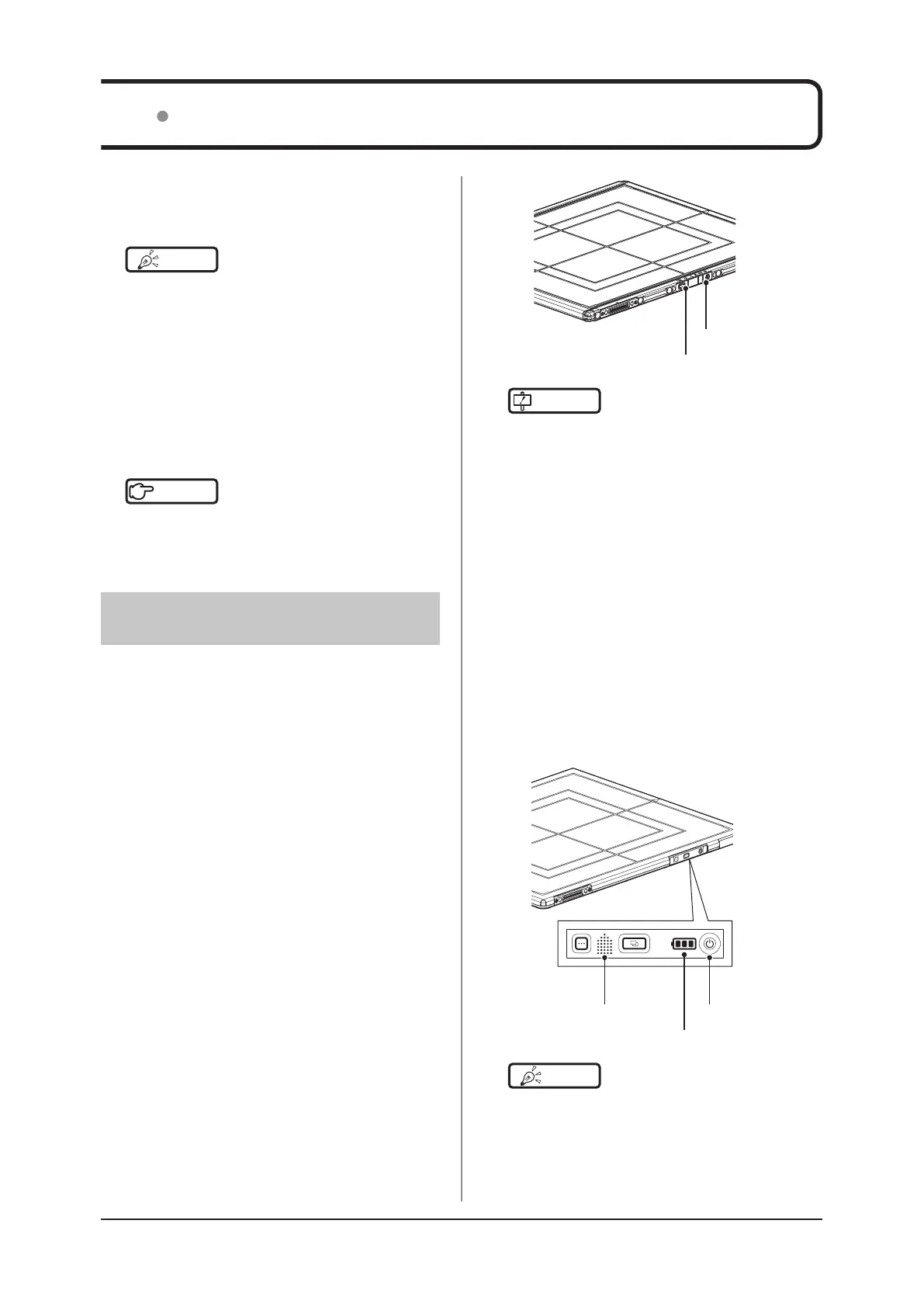

3.1 Startup and shutdown
LED (green)
Power switch
IMPORTANT
•••••••••••••••••••••••••••••••••••••
• Do not use a sharp object to operate the switch; doing so
may damage the AeroDR 2 1417HQ and AeroDR 2 1417S.
•••••••••••••••••••••••••••••••••••••••••••••••••••••

AeroDR 3 1417HD, AeroDR 3 1717HD,
AeroDR 3 1012HQ
• If the DR Detector is inserted into the AeroDR
Battery Charger2 with a wireless connection, the
DR Detector should be removed.
• For a wired connection, confirm that the wired
Cable is connected securely to the wired con-
nection connector of the DR Detector.
• Next, press the Power SW of the DR Detector
for 2 seconds to turn it on and conrm that the
Information LED (white) gradually extends while
the triangle part ashes and the rectangular part
below it lights and then goes out before the Bat-
tery LED lights.
Battery LED (blue/orange)
Information LED (white) Power SW
HINT
•••••••••••••••••••••••••••••••••••••
• The Battery LED changes according to the level of
battery power of the DR Detector.
•••••••••••••••••••••••••••••••••••••••••••••••••••••
Normally, this device is used with the power on.
When not used for more than 1 day, operate the start-
up/shutdown as follows.
HINT
•••••••••••••••••••••••••••••••••••••
• There is no specic sequence which should be started
up rst, this device or the image processing controller.
The startup and shutdown sequences of this device
are as follows.
• If the power synchronization function of the DR De-
tector is enabled and the wired cable is connected,
the startup / shutdown of the DR Detector will be per-
formed along with the startup / shutdown of the syn-
chronizing device.
•••••••••••••••••••••••••••••••••••••••••••••••••••••
Reference
•••••••••••••••••••••••••••••••••••••
• Refer to the "Operation Manual" of the image processing
controller regarding on/o󰀨 for the image processing controller.
•••••••••••••••••••••••••••••••••••••••••••••••••••••
3.1.1 Startup of this device
The startup methods of this device are as follows.

AeroDR 1417HQ, AeroDR 1417S, Aero-
DR 1717HQ, AeroDR 1012HQ, AeroDR 2
1417HQ, AeroDR 2 1417S
• If the DR Detector is inserted into the AeroDR
Battery Charger or AeroDR Battery Charger2
with a wireless connection, the DR Detector
should be removed.
• For a wired connection, confirm that the wired
cable is connected securely to the wired con-
nection connector of the DR Detector.
• Next, press the power switch of the DR Detec-
tor for 2 seconds and turn it on, and conrm that
the LED (green) is slowly ashing or lit.
