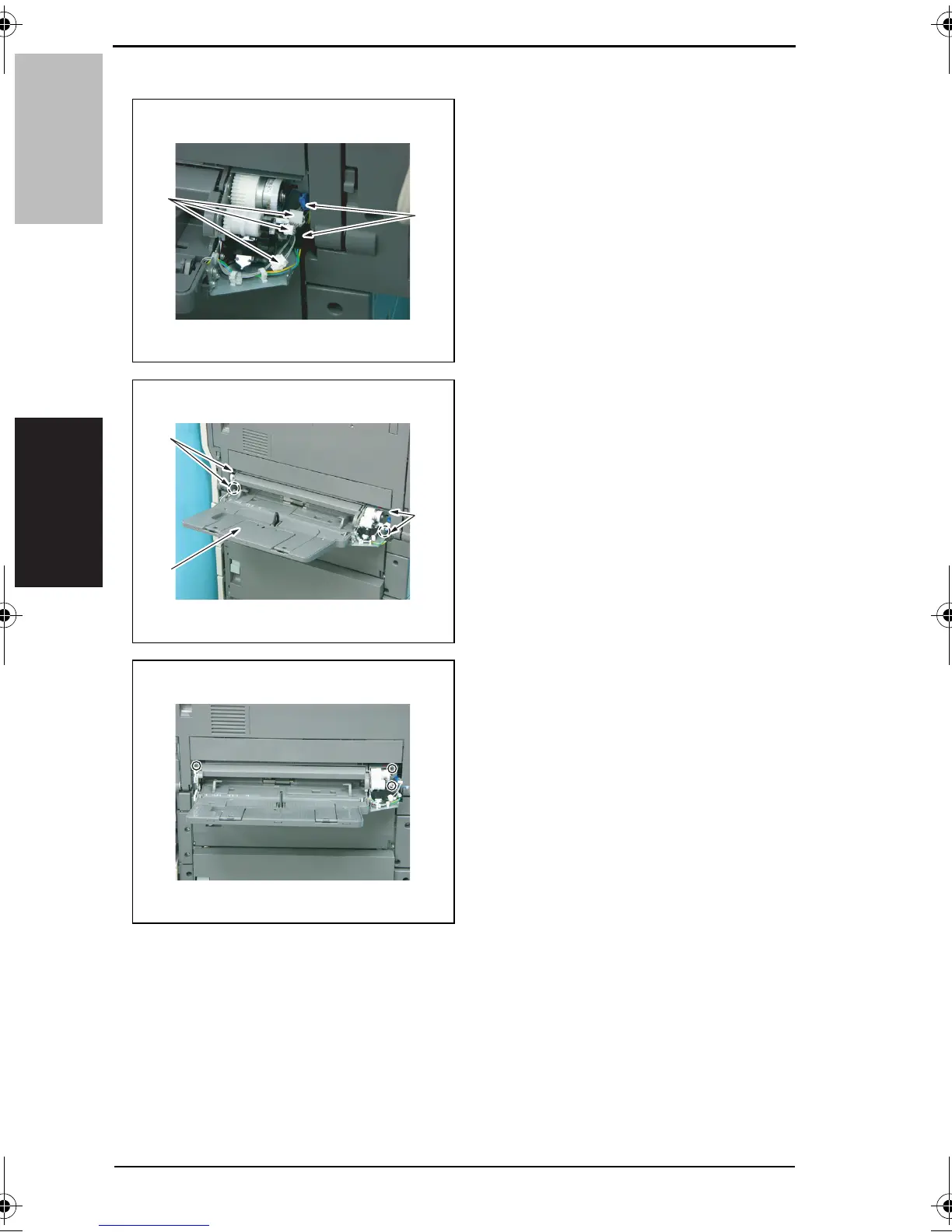

11.3.23 Multi Bypass Unit
1. Remove the Multi Bypass Tray Right
Cover and the Multi Bypass Tray Left
Cover.
See P.75
2. Disconnect five Connectors [1].
3. Remove four Screws [2], and remove
the Multi Bypass Unit [3].
NOTE
• When installing the Multi Bypass
Unit, fit the position of dowel shown
in the left illustration.
[1]
[1]
4038F2C103DA
[2]
[2]
[3]
4038F2C104DA
4038F2C105DA
