Before Using
the Instrument
1
Display (LCD Screen)
The LCD screen displays measurement settings, measurement results, and messages. It also indicates the status of
the instrument with icons.

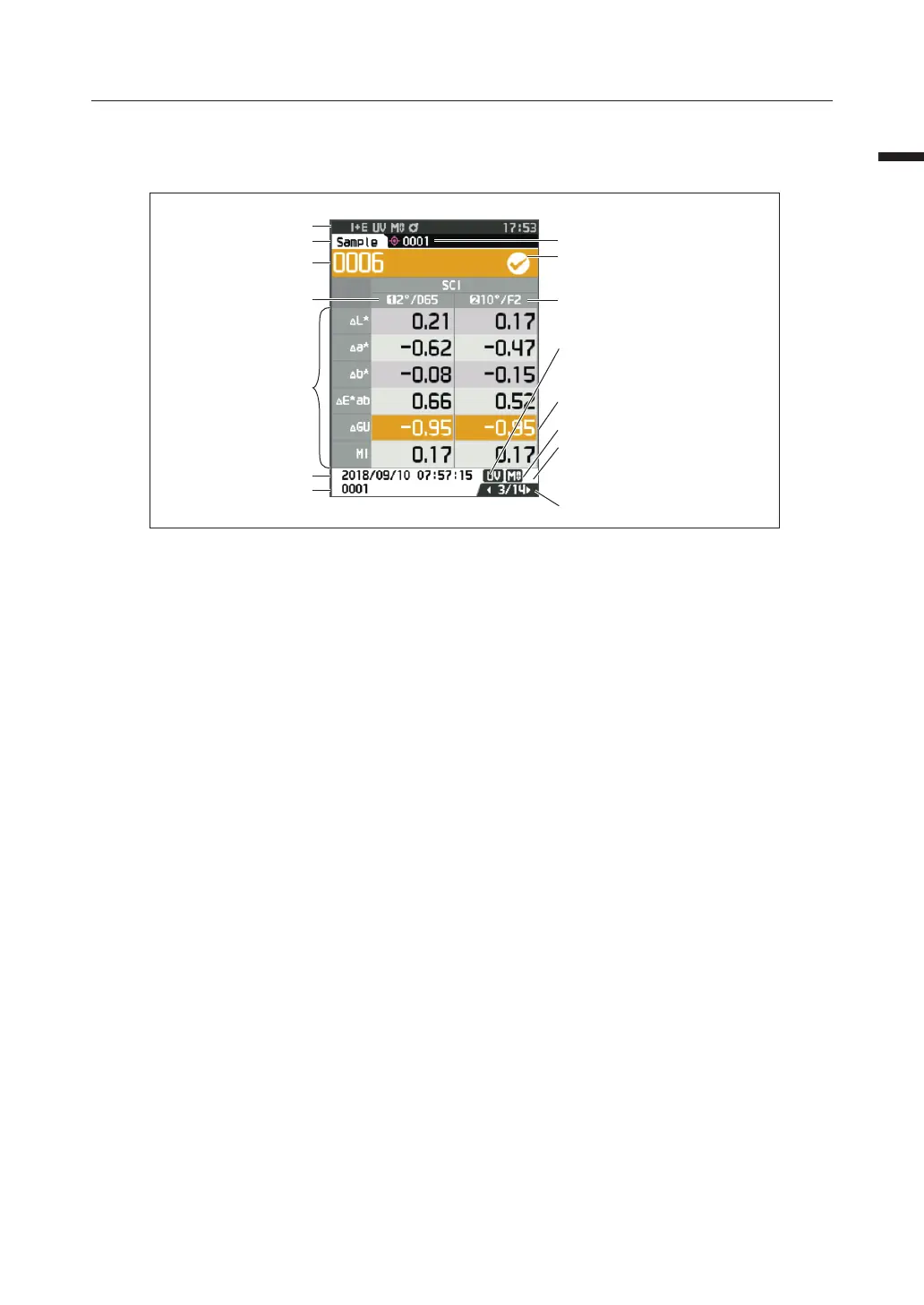

The basic screen layout is shown below.
Status bar
Data/graph display area
Data number and name
Target reference (sample) /
Aliated group (target)
Target/Sample
Measurement date/time
Observer/Illuminant 1
Display type of currently displayed screen
“!” is displayed when the calibration interval
has arrived, when measurement is performed
with an insucient amount of light, or when
the sample is outside the guaranteed range.
Measurement area
Color is applied when the tolerance is
exceeded or when a warning occurs. (sample)
UV setting: Displays the UV setting
status.
Observer/Illuminant 2
Pass/fail result
A dierent mark or background color
will be applied according to the result.
Target to be used for association with
the next measurement or filter (target)
To Next Page
