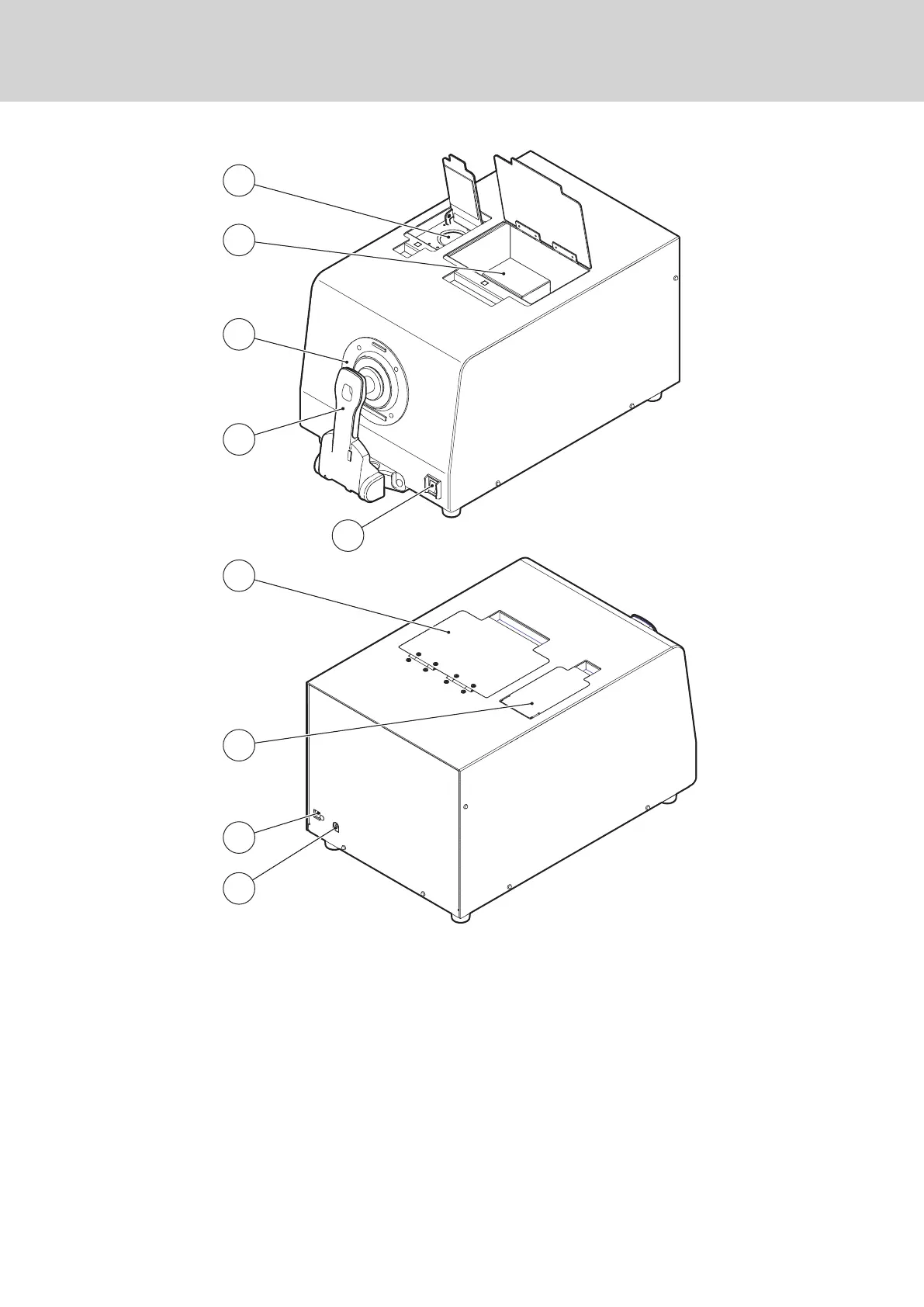

Names and Functions of Parts
① Viewfinder .............................Used to locate the position of the specimen for measurement of reflectance.
② Transmittance chamber .......Place the specimen in this chamber to perform
measurement of transmittance.
③ Target mask ..........................Select a suitable target mask (for ø30 mm (LAV), ø11 mm (MAV) and ø7 mm
(SAV) illumination) according to the specimen and attach it to the CM-3600A.
④ Sample holder .......................Used to hold the specimen, white calibration plate or zero calibration box.
⑤ Power switch .........................Used to turn power ON and OFF.
⑥
Transmittance chamber cover
...Covers the transmittance chamber used for transmittance measurements.
⑦ Viewfinder cover ...................Open this cover to check the position of the
specimen for measurement of reflectance.
⑧
USB connection terminal
.........Used to connect the instrument to a PC with the supplied USB cable
(IF-A21 or IF-A22).
⑨
AC adapter input socket
.........Used to connect the AC adapter supplied with the CM-3600A.
1
6
7
2
3
8
4
9
5
