Parameter Guide
43

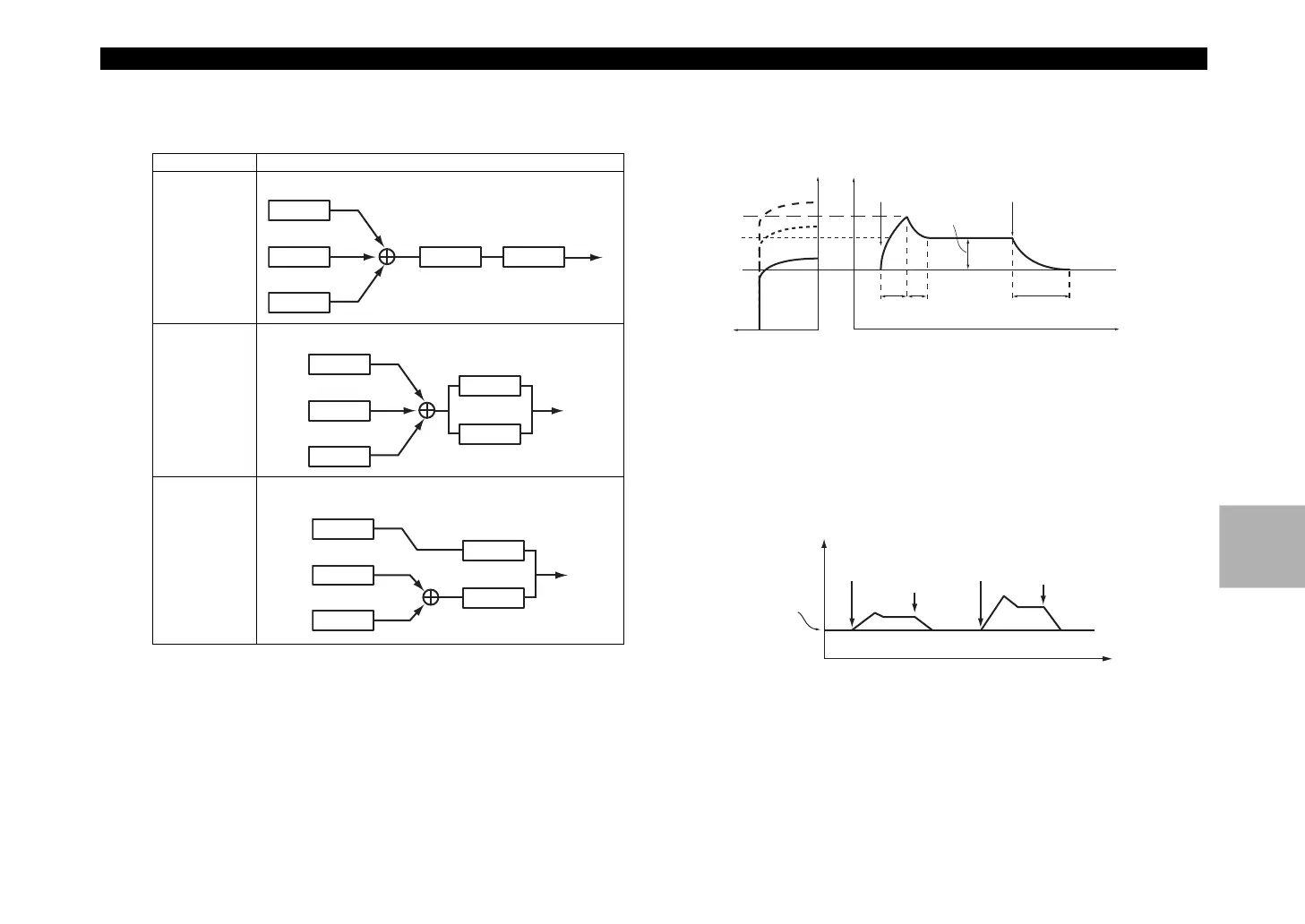

ROUTING.............................................[SINGLE, SERIAL, PARALLEL, INDIV]
Specifies the routing (connection) between filter 1 and filter 2.
EG1 INT (EG1 Intensity/Filter1) ................................................ [–63...63]
Time
Note on
Note off
Cutoff
Sustain Level
Attack
Time
Decay
Time
Release Time
Note on
Note off
Note on
Note off
Cutoff
Int=+32
Int=0
Int=+63
Time
Cutoff frequency
specified by
“Cutoff”
This specifies how time-variant modulation from the EG1 will be applied to
the cutoff frequency.
The cutoff frequency will change over t
ime according to the EG1 settings,
modifying the tone. For example, you can use this to create a sound that
gradually begins to brighten when you press the key, and then gradually
becomes darker.
“EG1 INT” parameter specifies the depth (sensitivity) to which the EG1 will
affect the cutoff frequency.
With a setting of 0, the EG1 will not affect the cutoff frequency.
Increasingly positive (+) settings will allow the EG1 to have a correspond-
ingly greater effect on the cutoff frequency.
SINGLE
Only filter 1 is used.
SERIAL
Filter 1 and filter 2 are connected in series.
PARALLEL
Filter 1 and filter 2 are connected in parallel.
INDIV
Filter 1 is applied to oscillator 1, and filter 2 is applied to oscillator
2 and noise.
OSC1
Filter1
OSC2
Noise
Filter2
OSC1
Filter1
OSC2
Noise
Filter2
OSC1
Filter1
OSC2
Noise
Filter2
