microKORG XL
68
B1 TYPE .................................................................. [PEAKING, SHELV LO]
Selects the EQ type of Band 1.
B1 FREQ (B1 Frequency)............................................... [20Hz…20.0kHz]
Sets the center frequency of Band 1.
B1 Q ..................................................................................[00.5…10.0]
Sets the bandwidth of Band 1.
B1 GAIN ............................................................... [–18.0…+18.0dB]
Sets the gain of Band 1.
B2 FREQ (B2 Frequency).................................................. [20Hz…20kHz]
Sets the center frequency of Band 2.
B2 Q ..................................................................................[00.5…10.0]
Sets the bandwidth of Band 2.
B2 GAIN ............................................................... [–18.0…+18.0dB]
Sets the gain of Band 2.
B3 FREQ (B3 Frequency) ................................................. [20Hz…20kHz]
Sets the center frequency of Band 3.
B3 Q ..................................................................................[00.5…10.0]
Sets the bandwidth of Band 3.
B3 GAIN ............................................................... [–18.0…+18.0dB]
Sets the gain of Band 3.
B4 TYPE .................................................................. [PEAKING, SHELV HI]
Selects the EQ type of Band 4.
B4 FREQ (B4 Frequency) ..................................................[20Hz…20kHz]
Sets the center frequency of Band 4.
B4 Q ................................................................................. [00.5…10.0]
Sets the bandwidth of Band 4.
B4 GAIN ...............................................................[–18.0…+18.0dB]
Sets the gain of Band 4.

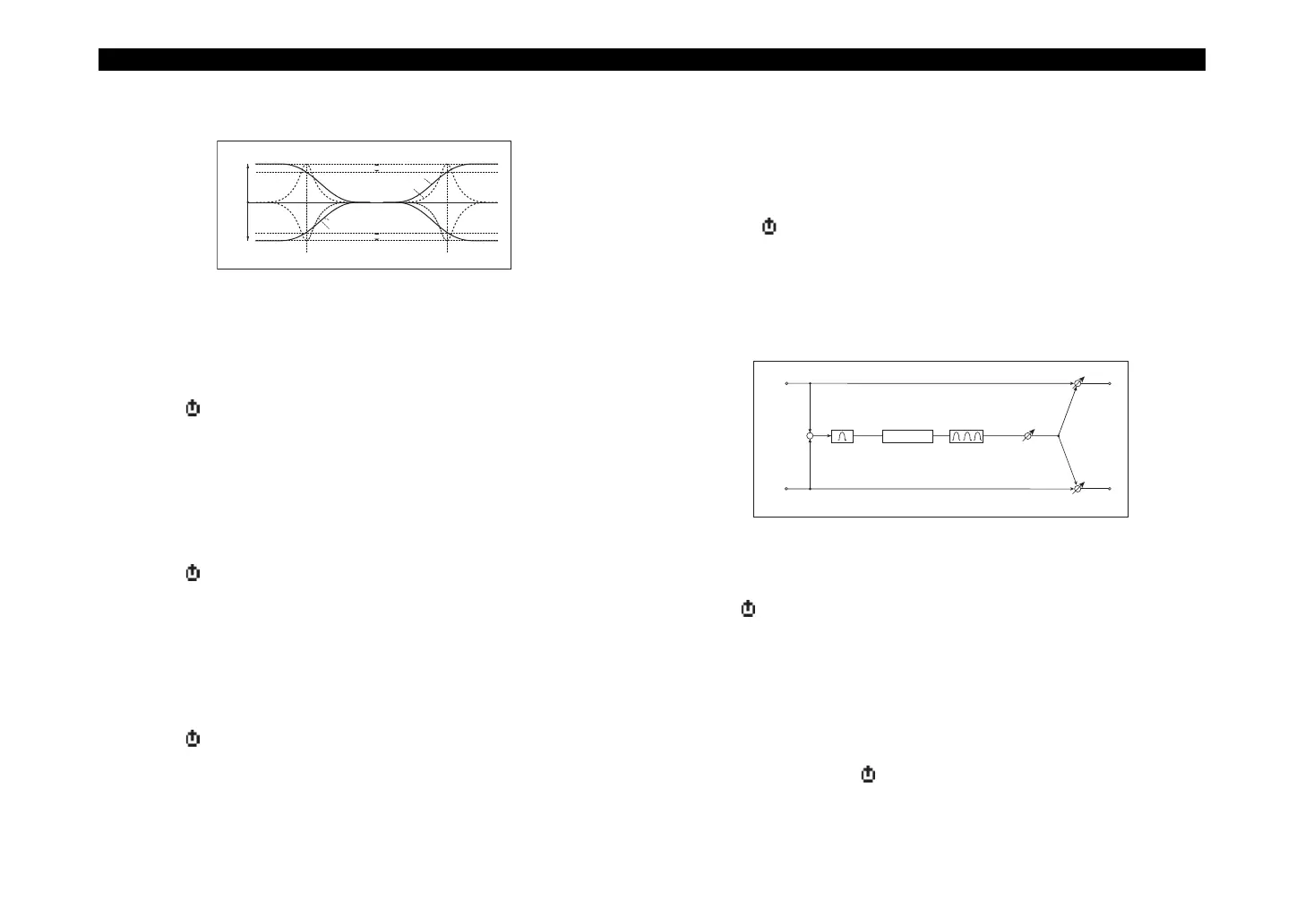

4. DISTORT (Distortion)
Left
Right
Dry / Wet
Dry / Wet
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
3 Band PEQ
Output Level
Pre EQ
Distortion
This is a distortion effect with a three band EQ, giving you a broad range of
variations.
DRY/WET...................................................... ["DRY", 99:1…1:99, "WET"]
Sets the balance between the effect and dry sounds.
GAIN .............................................................................. [000…127]
Sets the degree of distortion.
PRE FREQ (Pre EQ Frequency)........................................ [20Hz…20.0kHz]
Sets the center frequency of Pre EQ.
PRE Q (Pre EQ Q)................................................................. [00.5…10.0]
Sets the bandwidth of Pre EQ.
PRE GAIN (Pre EQ Gain) ..........................................[–18.0…+18.0dB]
Sets the gain of Band PreEQ.
3dB
3dB
Band1 Cutoff
Band4 Cutoff
0dB
+Gain
–Gain
Band1 Type=Peaking
Band1 Type=Shelving Low
Band4 Type=Peaking
Band4 Type=Shelving High
Band1/ Band4 Type
