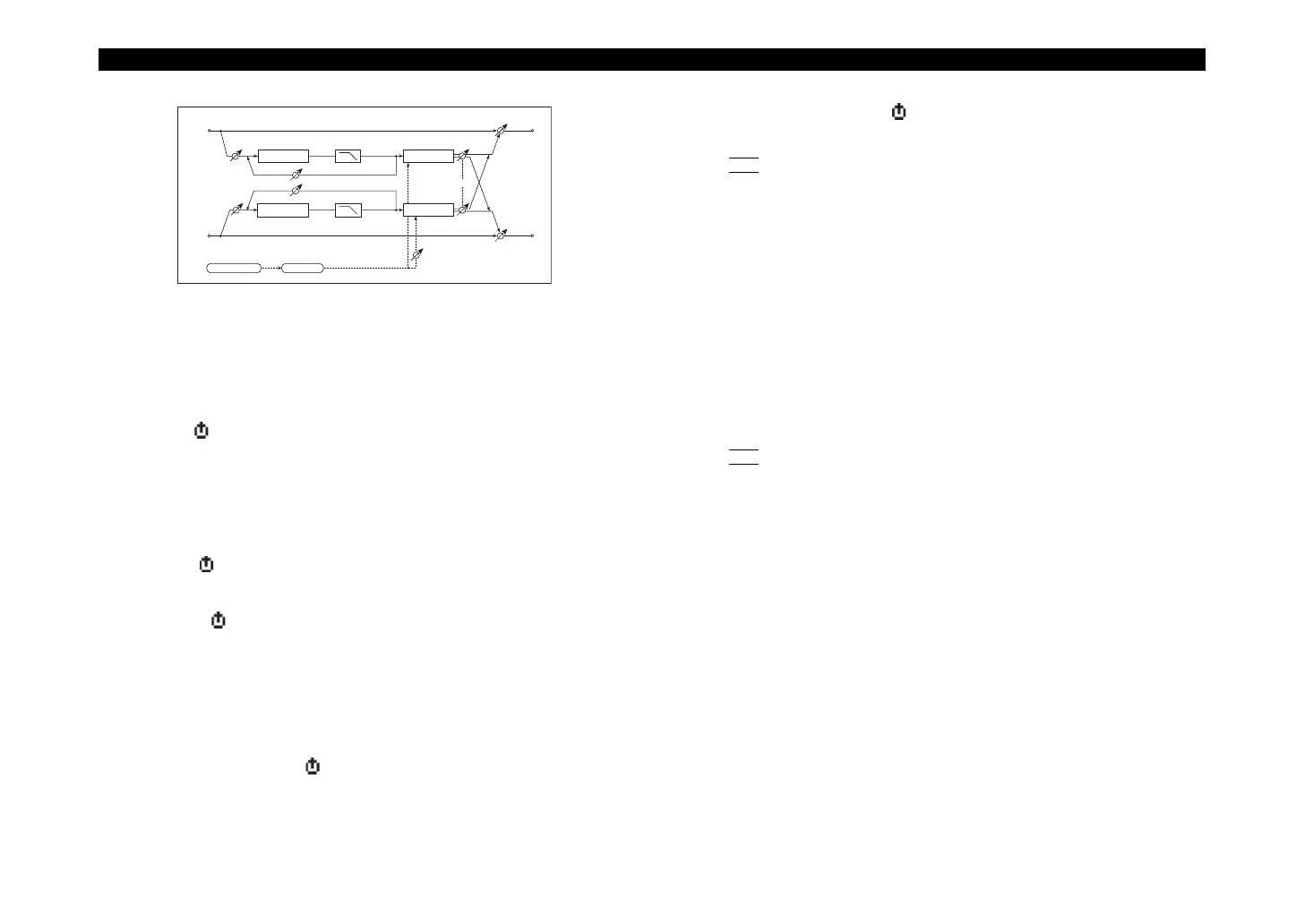

Korg MicroKORG XL User Manual

Left
Right
Dry / Wet
Dry / Wet
Stereo In - Stereo Out
LFO Spread
LFO Shape
Pan
Pan
LFO
MOD Depth
Delay
Delay
High Damp
High Damp
Feedback
Trim
Trim
microKORG XL
72
DRY/WET ......................................................["DRY", 99:1…1:99, "WET"]
Sets the balance between the effect and dry sounds.
BPM SYNC (DelayTime Tempo Sync) ...........................................[OFF, ON]
J p. 70 “BPM SYNC (DelayTime Tempo Sync)”
TM RATIO ...............................[BPM SYNC OFF: 000.5…400.0% (OVER)/
BPM SYNC ON: 012.5…400.0% (OVER)]
J p. 70 “TM RATIO”
L DELAY, R DELAY (L, R Delay Time) ................ [000…1400ms, 1/64… 1/1]
J p. 70 “L DELAY, R DELAY (L, R Delay Time)”
FEEDBACK .......................................................................[000…127]
J p. 71 “FEEDBACK”
MOD.DEPTH .....................................................................[000…127]
Sets the depth of modulation.
LFO SYNC (LFO Tempo Sync) .......................................................[OFF, ON]
Specifies whether the LFO cycle will be synchronized with the tempo speci-
fied by the [TEMPO] knob or MIDI clock.
J p. 66 “LFO SYNC (LFO Tempo Sync)”
LFO FREQ (LFO Frequency) ........................................ [0.01…100.0Hz]
Sets the LFO speed.
J p. 66 “LFO FREQ (LFO Frequency)”
SYNC .NOTE (LFO Sync Note) .............................................[8/1…1/64]
Sets the LFO frequency as a proportion of the tempo set by the [TEMPO]
knob.
NOTE This parameter will be displayed and can be set if “LFO Sync” is On.
J p. 66 “SYNC.NOTE (LFO Sync Note)”
LFO WAVE (LFO Waveform)................ [SAW, SQUARE, TRIANGLE, SINE, S&H]
Selects the LFO waveform.
J p. 66 “LFO WAVE (LFO Waveform)”
LFO.SHAPE ......................................................................... [–63…+63]
J p. 66 “LFO.SHAPE”
KEY SYNC (LFO Key Sync) ............................................................[OFF, ON]
Specifies whether the LFO will be reset by note-on.
J p. 67 “KEY SYNC (LFO KeySync)”
INI.PHASE (LFO Init Phase) .................................................. [000…180°]
Sets the starting location of the waveform.
NOTE This parameter will be displayed and can be set if “KEY SYNC” is ON.
J p. 67 “INI.PHASE (LFO Init Phase)”
LFO SPRD (LFO Spread)....................................................[–180…+180°]
Sets the phase difference between the left and right channels.
HI DAMP ...........................................................................[000…100%]
Sets the damping amount in the high range.
TRIM................................................................................... [000…127]
Sets the input level.
