Korg Synthesizer User Manual

2:1 OSC 1 (08: Organ Model)
08: Organ Model
This is an oscillator used to produce organ-type sounds. The oscillator simulates three drawbars
similar to electric organs of the past.
You can specify the footage [Harmo] and waveform setting for each drawbar, allowing a wide range
of sounds to be created.
2–1a: Drawbar 1
Wave [Sine 1, Sine 2, Sine 3, Triangle]
Specifies the waveform for drawbar 1. Sine 1 contains only the fundamental (i.e., a pure sine wave). Sine 2 and
Sine 3 are waveforms which contain the first two and the first three harmonics respectively.
Coarse (Harmonics Coarse) [1…16]
Specifies the pitch of drawbar 1, relative to one octave below the oscillator pitch.
Fine (Harmonics Coarse Fine) [–99…+99]
Makes fine adjustments to the pitch of drawbar 1.
Level [0…99]
Specifies the volume level of drawbar 1.
AMS (Alternate Modulation Source) [OFF…MIDI (CC#83)]
Selects a modulation source (
☞
page 64 of this manual) that will control the “Level” of drawbar 1.
Intensity (Level AMS Intensity) [–99…+99]
Specifies the depth and direction of the effect of “AMS.1.”

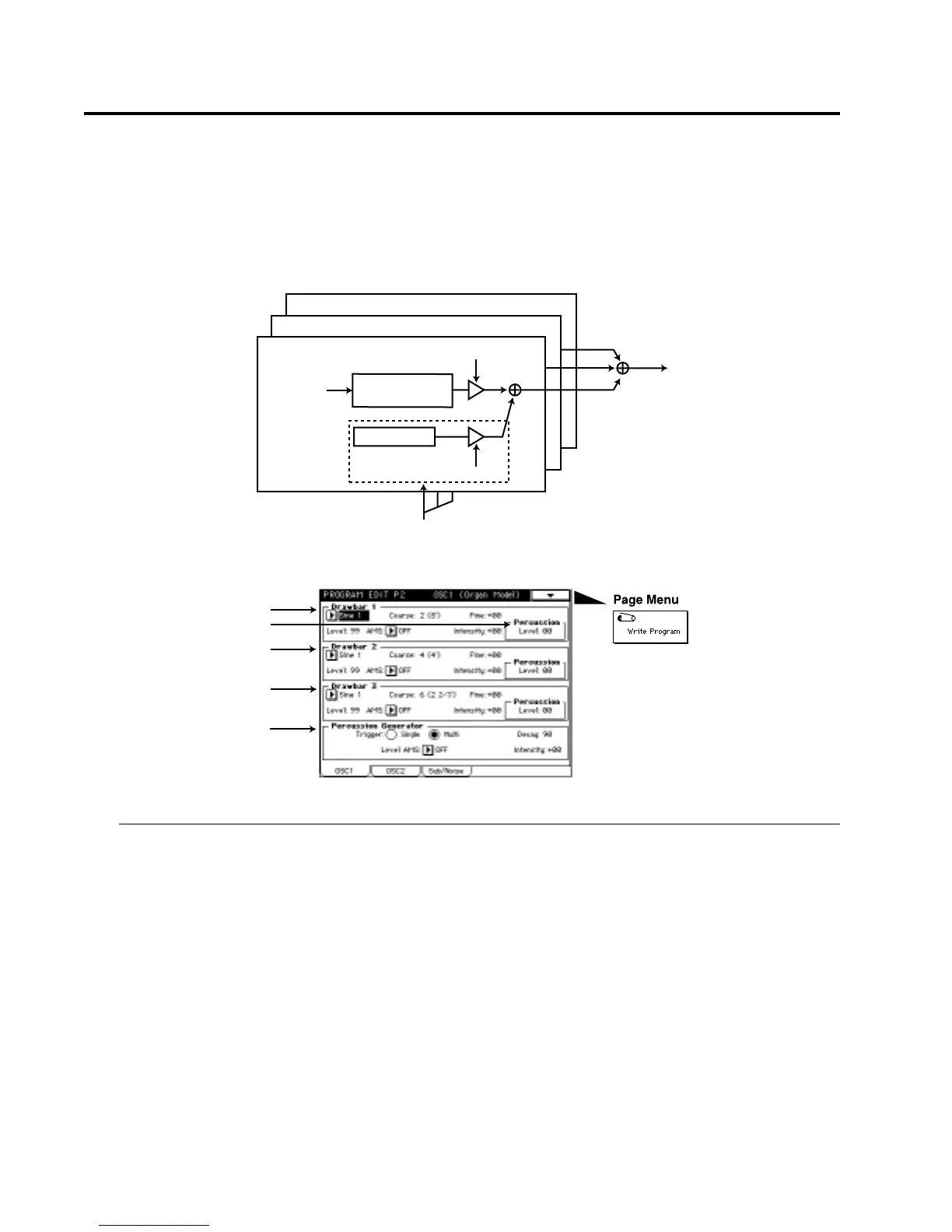

Wave
Sine1 or Sine2
/Sine3/Triangle
Harmonics
(Pitch)
Level
Drawbar1
Drawbar2
Drawbar3
Percussion Level
Precussion
Precussion
Decay/Level Mod.
2–1a
2–1c
2–1d
2–1e
2–1b
