3-2: Filter 1
Parameters
Prog.
Edit
P3
3–2: Filter 1

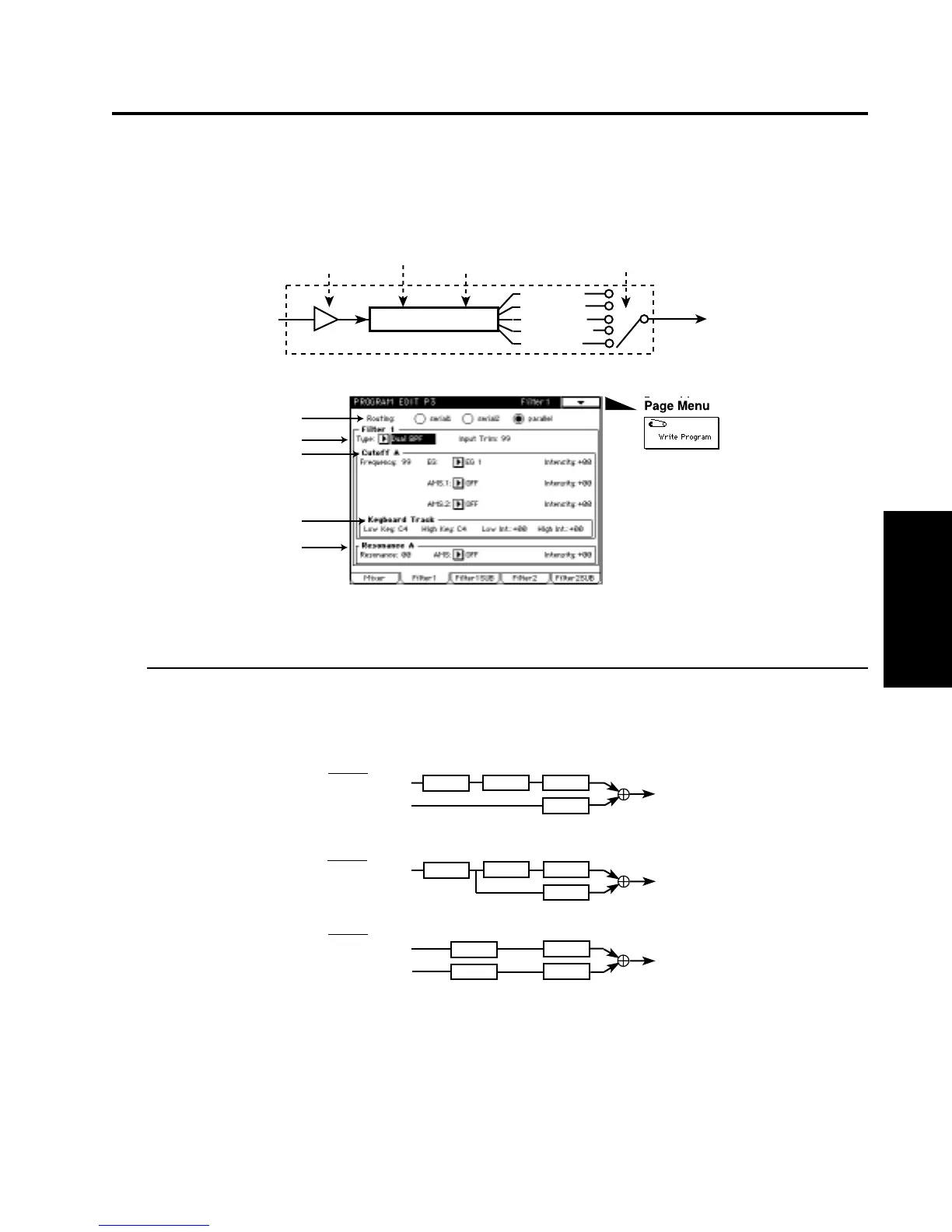

Here, you can make settings for one of the two multi-mode filters. Each multi-mode filter can be set
to one of five filter types.
3–2a: Routing (Filter Routing) [serial 1/serial 2/parallel]
Use the radio buttons to select the way in which filters 1 and 2 will be combined.
The connections from mixer output → filter → amp can be routed in the following three ways.
Multimode Filter
Low Pass
High Pass
Band Pass
Band Reject
Dual BPF
Filter Type
Input Trim
Cutoff Frequency
Resonance
3–2a
3–2b
3–2c
3–2d
3–2e
Serial1
Parallel
Mixer Output1
Mixer Output2
Filter1
Filter2
Amp1
Amp2
Mixer Output1
Mixer Output2
Filter1
Filter2 Amp1
Amp2
Mixer Output1
Mixer Output2
Filter1
Filter2
Amp1
Amp2
Serial2
To Next Page
