Korg X3 User Manual

step
4
Checking disk change
-
Check that the LCD goes froi HI to LOW when the floppy disk drive
eject button is pressed and the
disk is
taken
out.
After you
have completed this check, press CENTER] and proceed to
the next test.

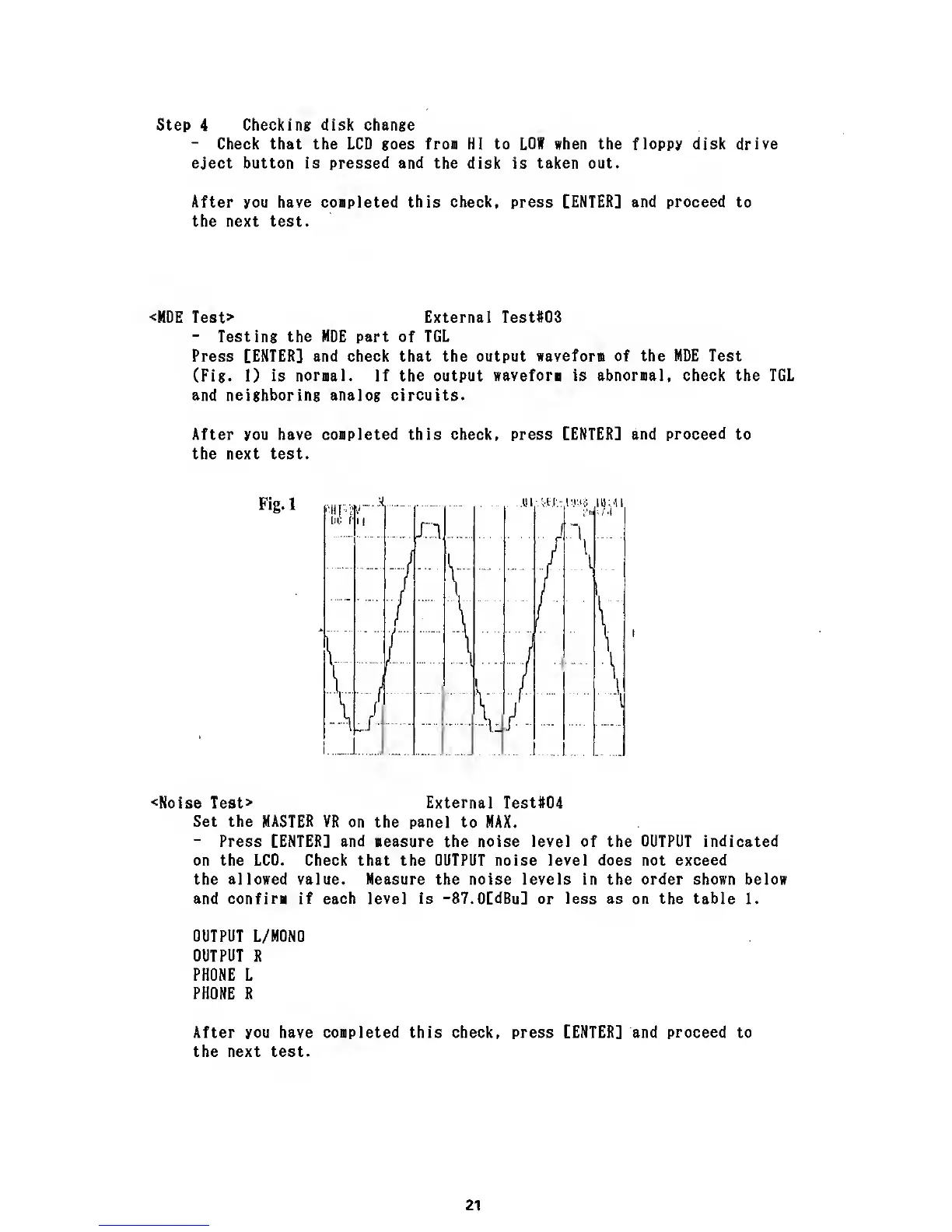

<MDE Test> External
TestiJ03
-
Testing the MDE part of TGL
Press CENTER] and check
that
the output
waveform of the MDE Test
(Fig.
1)
is
normal. If the output waveform is abnormal, check the TGL
and neighboring
analog circuits.
After you have completed this check, press CENTER]
and proceed
to
the next test.
<Noise Test>
External TestW04
Set the MASTER
VR on the panel to
MAX.
-
Press [ENTER] and measure the noise level of the OUTPUT indicated
on the LCD. Check that the OUTPUT noise
level does
not
exceed
the
allowed
value. Measure the noise levels in
the
order shown below
and confirm if each level is -87.0CdBu] or less as on the table
1.
OUTPUT L/MONO
OUTPUT
R
PHONE L
PHONE R
After you
have
completed this check, press CENTER]
and proceed
to
the next test.
21

Korg X3 Specifications

General

Polyphony	32 voices
Multitimbral	16 parts
Presets	200 programs, 200 combinations
User Patches	100 programs, 100 combinations
MIDI	In, Out, Thru
Weight	10.5 kg
Type	Workstation
Keyboard	61 keys
Sequencer	16-track
Display	LCD
Outputs	Stereo
Memory	Internal
