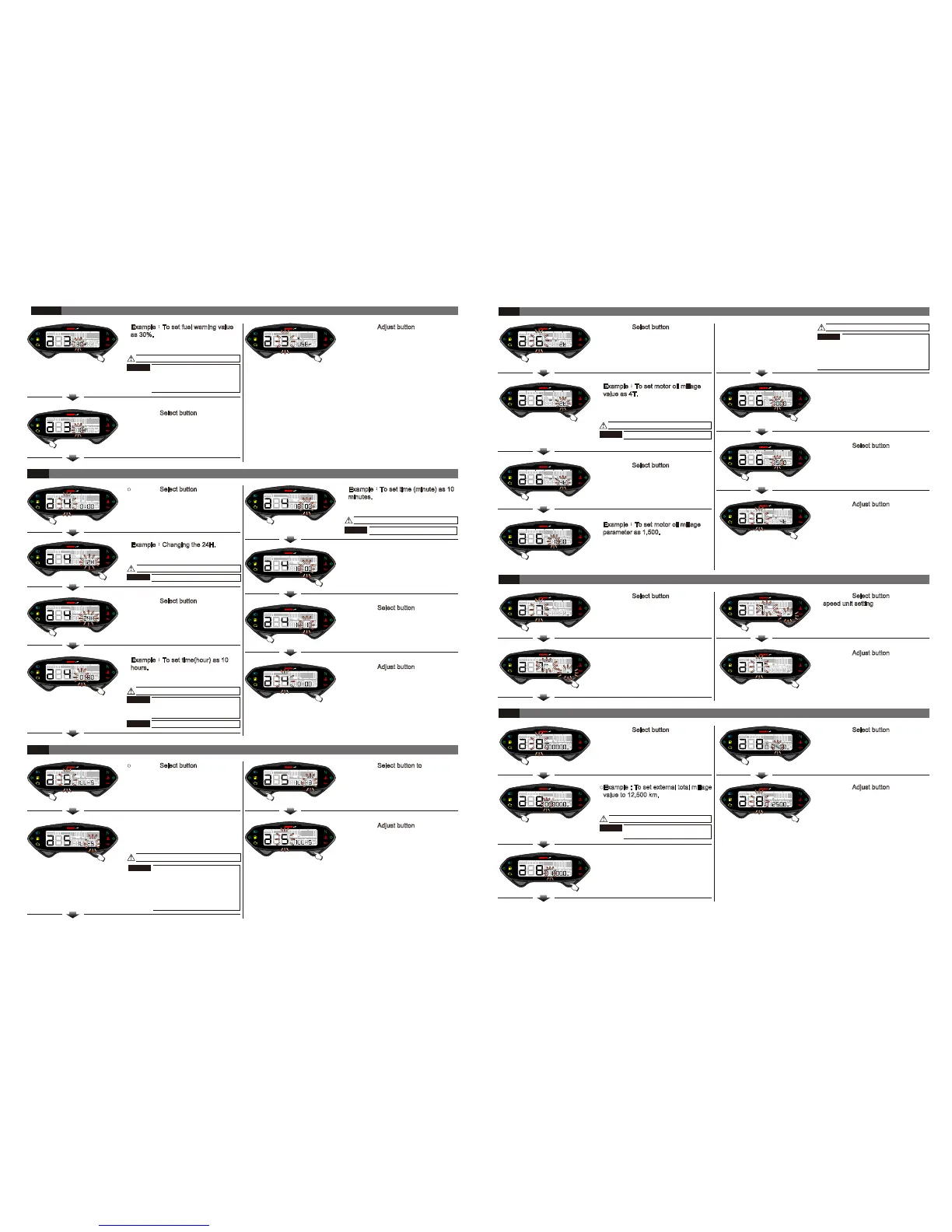

4-3-3
Fuel warning setting
Setting range：00 ~ 59 minutes.
NOTE
4-4
Clock setting
4-5
Backlight brightness setting
4-6
Oil maintenance mileage setting
4-8
External ODO
4-7
Speed unit setting
Setting range：
1 (Darkest) ~ 5 (Brightest),
5 different levels available.
Setting unit：20% per level.
The backlight brightness will
change immediately after you
set the value.
NOTE
Setting range :
0 ~ 99,999 km (mile)
NOTE
Setting range : 2T / 4T
NOTE
●Press the Select button to enter the
external ODO setting screen.
Currently setting value will blink.
●Example : To set external total millage
value to 12,500 km.
●Press the Select button
to choose
the setting number.
●Press the
Adjust button
to choose
the setting number.
●Press the Select button to the
external ODO setting screen.
●EX. The external ODO is changed 0 to
12,500 km.
●Press the Adjust button to enter next
operation setting.
●Press the Select button to enter the
speed unit setting screen.
●Press the
Adjust button
to choose
the setting number.
●Press the Adjust button to enter next
operation setting.
●Press the Select button to go back
speed unit setting
screen.
●EX. The speed unit setting is changed
km/h、km to MPH、mlie.
●Press the Select button
to enter the
oil maintenance mileage setting
screen.
●Example
：To set motor oil millage
value as 4T.
●Press the Adjust button
to choose
the setting number.
●EX. Current motor oil millage is 2T.
Currently setting value will blink.
●Press the Select button to enter 4T
motor oil millage setting main screen.
●EX. Setting motor oil millage value
from 2T to 4T.
●Press the
Adjust button
to choose
the setting number.
●Press the Adjust button to enter next
operation setting.
●Press the Select button
to go back
oil maintenance mileage setting
screen.
●EX. Setting motor oil millage
parameter from 1,000 to 1,500.
●Press the Select button
to choose
the setting number.
●Example
：To set motor oil millage
parameter as 1,500.
●EX. Current motor oil millage
parameter is 1,000.
NOTE
●2-stroke motor oil millage is
indicated by external signal warning
(motor oil indicator will lit).
●4-stroke motor oil millage is internally
set by the chronograph.
Currently setting value will blink.
●Press the Select button to enter the
backlight brightness setting screen.
Currently setting value will blink.
●Example：You want to set the
brightness at 60 % (3).
●Press the
Adjust button
to choose
the setting number.
●Press the Adjust button to enter next
operation setting.
●Press the Select button to
go back to
the backlight brightness setting screen.
●EX. The backlight brightness setting is
changed from 5 (100%) to 3 (60%).
Currently setting value will blink.
●Example：Changing the 24H.
●Press the
Adjust button
to choose
the setting number.
●
Press the Select button to enter the
clock setting screen.
●Press the Select button to enter time
adjustment (hour / minute) setting
screen.
●EX. Setting time format from 12-hours
to 24-hours.
Cursor moving order is：
Hour > Digit in ten minutes >
Digit in minutes
NOTE
Setting range：0 ~ 23
NOTE
Currently setting value will blink.
NOTE
Currently setting value will blink.
●Example：To set time(hour) as 10
hours.
●Press the
Adjust button
to choose
the setting number.
●Press the Adjust button to enter next
operation setting.
Now the setting value is flashing!
●Example：To set time (minute) as 10
minutes.
●Press the Select button
to choose
the setting number.
●Press the Select button
to return to
time setting screen.
●EX. Setting hour/minute from 0 hour
0 minute to 10 hours 10 minutes.
●Press the
Adjust button
to choose
the setting number.
NOTE
Setting range: 12 / 24 H
●Press the Adjust button to enter next
operation setting.
●Example：To set fuel warning value
as 30%.
●Press the
Adjust button
to choose
the setting number.
Setting range : 10%, 20%, 30%,
40%, 50%.
Fuel meter will not display when
fuel meter's wire is not installed.
●Press the Select button
to return to
fuel level resistance value setting
screen.
●EX. Setting maximum fuel level from
30% to 10%.
wh041ba02a(P6-5)
