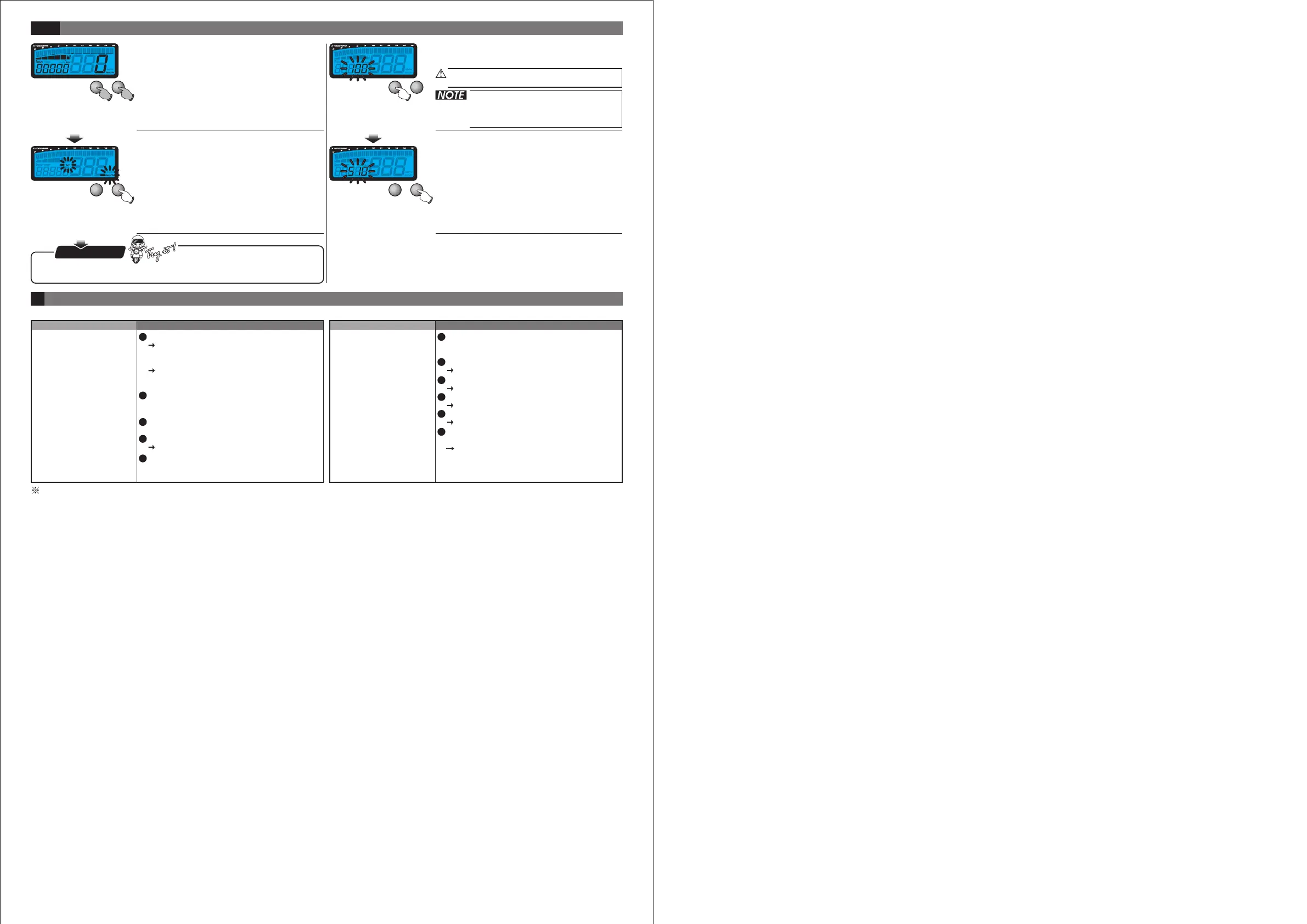

4-4
Usually the fuel gauge resistance is 100 on YAMAHA system, and
510 on HONDA system.
Ù
Ù
P.S.P.S.
Press the Adjust button to choose the
setting number. EX. Now the fuel gauge
resistance setting is 100 .Ù
Now the resistance setting number is
flashing!
The fuel gauge resistance setting
range: 100 , 510
If you don't install the fuel wiring, the
fuel gauge will not display.
ÙÙ.
Press Select button to back the main screen.
EX. Now the fuel resistance setting is changed
from 100 to 510 .Ù Ù
The fuel gauge resistance setting
In main screen, press down the S
to enter the speed unit
setting.
elect &
Adjust X 3 seconds
Press the S button 10 times to enter the
fuel gauge resistance setting screen.
elect
5
Trouble shooting
The following situation do not indicate malfunction of the meter. Please check the following before taking it in for repair.
If still can't solve the problems according to the steps above, please contact with distributors or us.
Trouble Trouble
Check item Check item
The meter doesn't work
when the power is on.
The meter shows wrong
information.
The power doesn't supply to the meter.
Please make sure the wiring is
connected. The wiring and fuse are not
broken.
The battery is broken or the battery is too
old to supply enough power (DC 12V) to
make the meter work.
Please check the voltage of your
battery, and make sure the voltage is
over DC 12V.
Fuel gauge does not
appear or appear
incorrectly.
Please check your fuel tank.
Is there any fuel inside ?
Please check the wiring.
Do you connect the wiring correctly ?
Please check the setting.
Please refer to the manual 4-4.
It is possible that the permanent power
wire is not connected well.
Please check the red positive wire is
connect well or not.
The odometer and trip
meter is not
accumulated or
accumulated wrong
data.
Speed does not appear
or appear incorrectly.
Please make sure the speed sensor is
connected correctly.
Please check the tire-size setting.
please refer to the manual 4-2.
Tachometer does not
appear or appear
incorrectly.
Please check the RPM sensor wiring is
connected correctly.
Please check the spark plug is R type
or not. If not, please replace the spark
plug with the R type spark plug.
Please check your setting.
Please refer to the manual 4-3.
