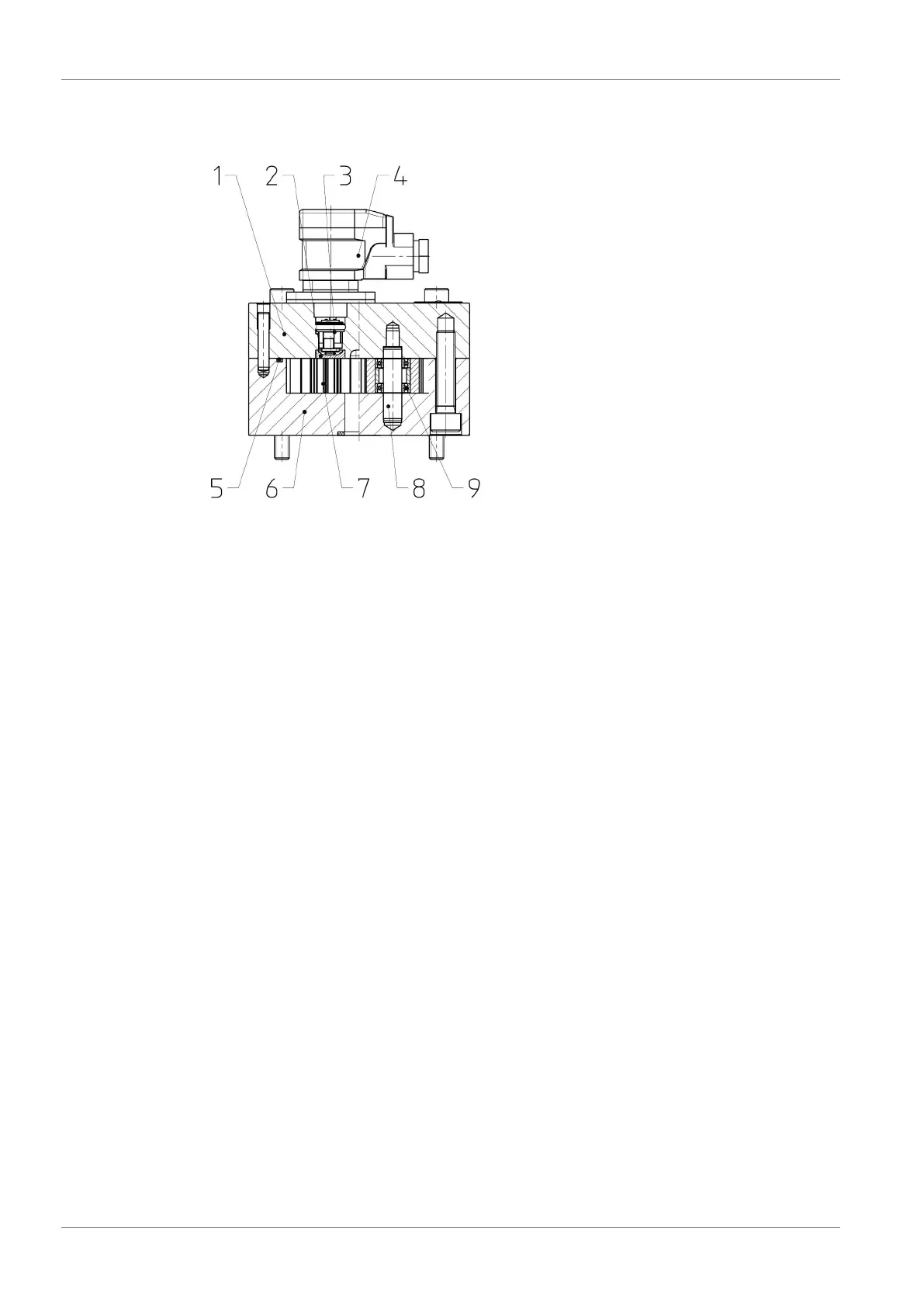

3 | Device description
Kracht GmbH
10 / 46
88046020002
3.2
Basic design
1
Cover
6
Housing
2
Magnet
7
Gears
3
A-magnetic divider
8
Bearing journal
4
Magnetic rotary encoder
9
Bearing
5
O-ring
9
11
Table of Contents
Default Chapter
2
Table of Contents
2
1 General
4
About the Documentation
4
Manufacturer Address
4
Applicable Documents
4
Symbols
5
2 Safety
6
Intended Use
6
Personnel Qualification and Training
6
Basic Safety Instructions
7
Fundamental Hazards
7
3 Device Description
9
Functional Principle
9
Basic Design
10
Type Key
11
4 Technical Data
13
General
13
Overview Nominal Sizes
14
Overview Connection Sizes
15
Flow Resistance Δp
17
Ball Bearings
17
Plain Bearings
20
Operating Pressure
22
Permissible Temperature Range
23
Material Data
24
Weight
25
Dimensions
26
5 Transport and Storage
27
General
27
Storage
27
Storage Conditions
28
6 Installation
29
Important Notes about Explosion Protection
29
Mechanical Installation
30
Preparation
30
Plate Connection
30
Pipe Connection
32
Rotary Encoder
32
Electrical Connection
33
7 Operation Start-Up
34
Safety Instructions for Start-Up
34
Preparation
34
PIN Assignment
34
Signal Lines
34
Further Operation Start-Up
35
8 Removal
36
Safety Instructions for Removal
36
Removal
37
9 Maintenance
38
Safety Instructions for Maintenance
38
Maintenance Work
39
Cleaning - Desposits in the Measuring Device
39
Maintenance Instructions
40
Maintenance Table
41
Inspection: Discharge Flow
42
Inspection: Operating Pressure
42
Inspection: Media Temperature
42
Inspection: Condition of Operating Fluid
42
Audiometric Monitoring: Unusual Noise
42
Cleaning
42
Visual Inspection: Leakages
42
Visual Inspection: Measuring Unit Status
42
Visual Inspection: Condition of Housing Parts
43
Visual Inspection: Bearing Status
43
Replace: Other Seals
43
Cleaning Desposits in the Measuring Device
43
10 Repairs
44
Safety Instructions for Repair
44
General
45
Detecting and Eliminating Failures
46
4
Based on 1 rating
