5 Operation
Additional front/rear control circuit (option)
The front additional control circuits 38 l/min (10 gal/min) or
115 l/min (30.4 gal/min) are provided for the operation of hydraulic
attachments, for example a sweeper or snow blower with additional
“Swiveling ejection” function.
The rear additional control circuit 38 l/min (10 gal/min) is for hydraulic
attachments, for example salt spreaders or tipping trailers.
The front or rear additional control circuits are selected with changeover
tap D. Simultaneous operation is not possible.

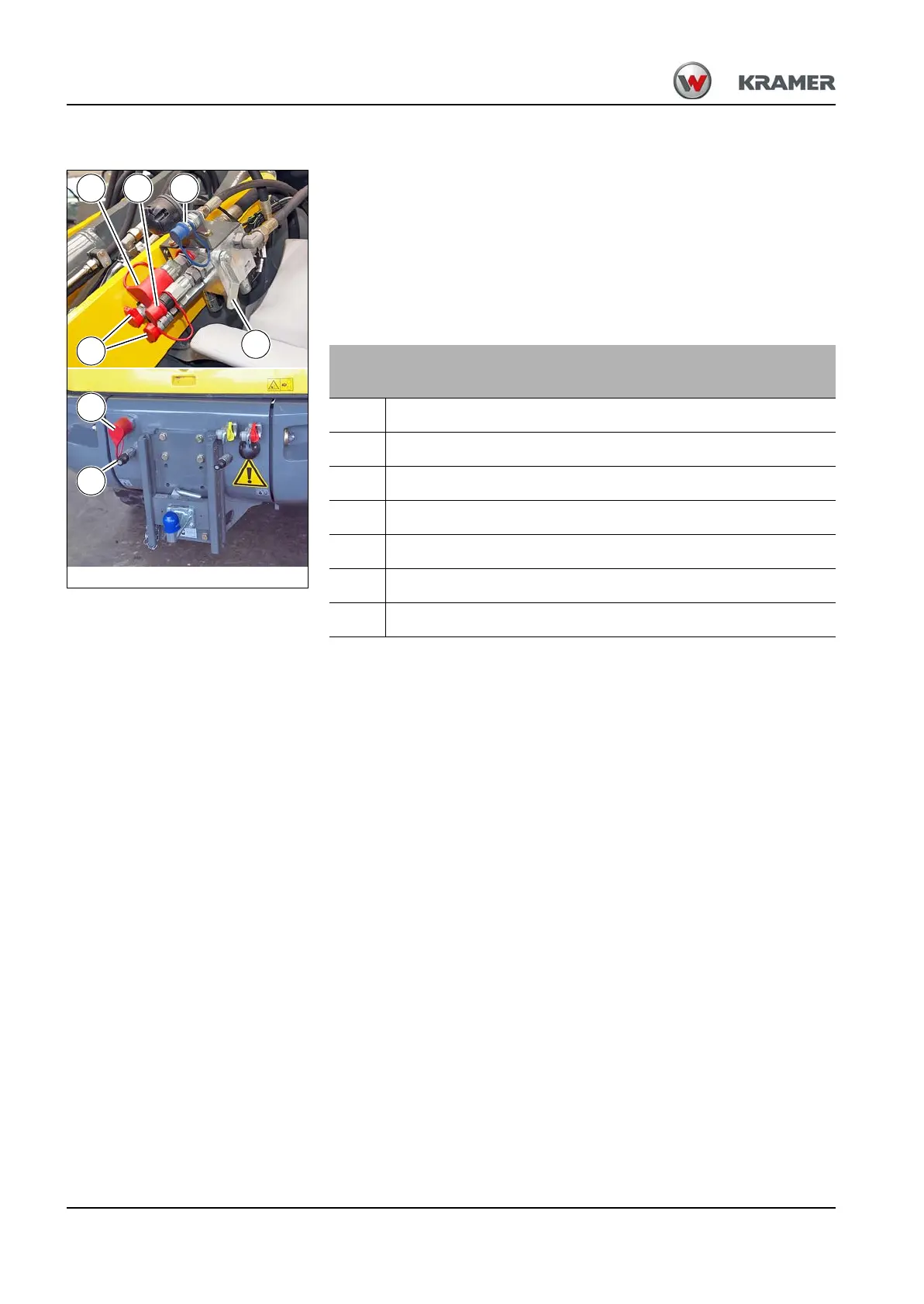

Hydraulic connections on front distributing block (loader unit) and
at rear of machine.
A Front plug coupling (return without pressure)
B Front plug coupling (pressure)
C Plug coupling (leak oil line)
D Changeover tap for connections B (front) or H (rear)
E Front plug coupling (for additional functions)
G Rear plug coupling (return without pressure)
H Rear plug coupling (single-action pressure)
