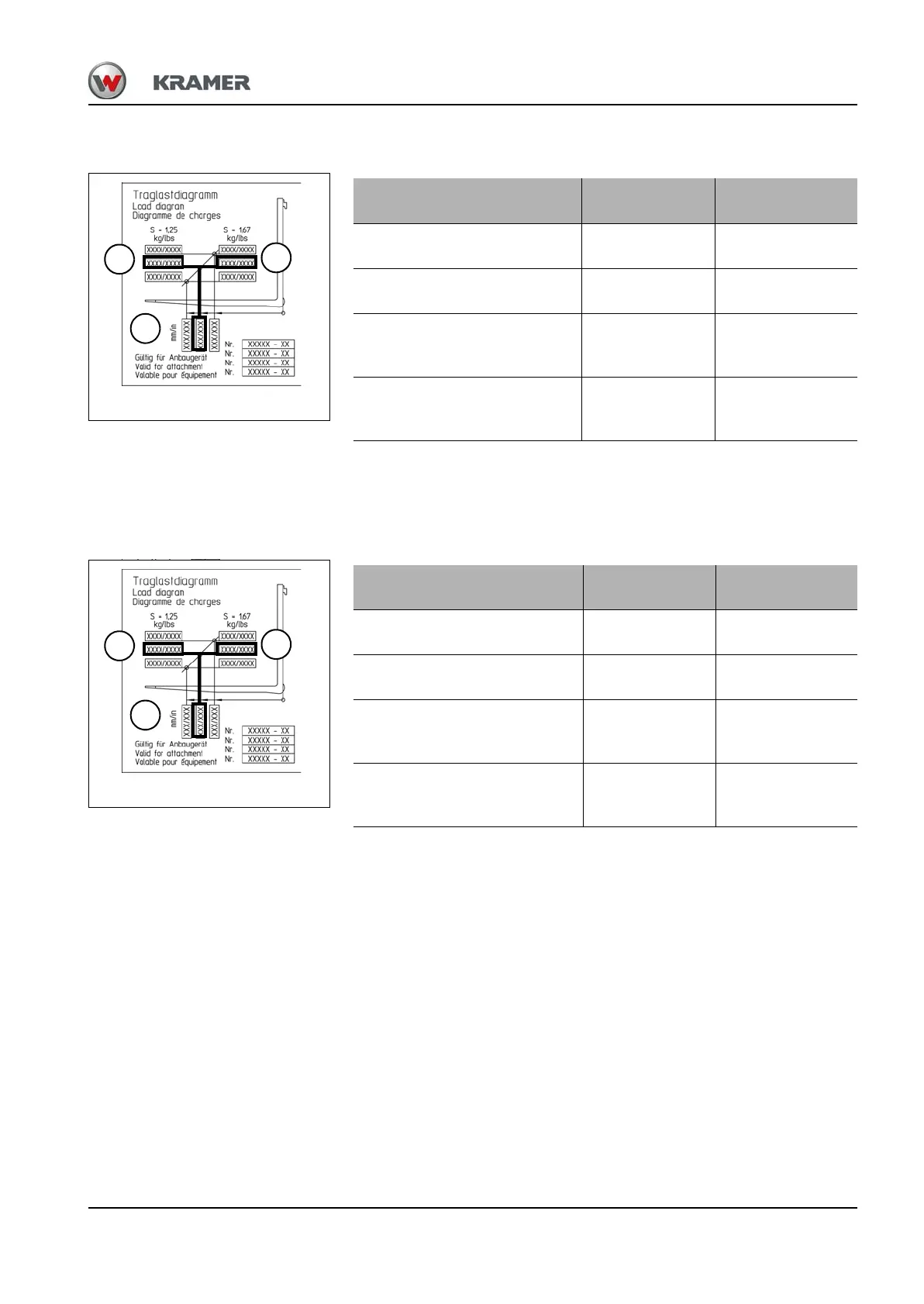

Payload with pallet forks (KRAMER quickhitch)
Payload with pallet forks (VOLVO quickhitch)
B
C
A
Fig. 317
Payload
1
(500 mm (19.68 in)
load distance)
1. Loader unit in horizontal position
352-03S 352-04S / 352-04L
Payload (A)
safety factor 1.25
2500 kg
(5511.6 lb)
2900 kg
(6393.4 lb)
Payload (B)
safety factor 1.67
1850 kg
(4078.6 lb)
2170 kg
(4784.0 lb)
Movable payload
2
Transport position:
Safety factor 1.25
2. The movable payload is only authorized in transport position of the loader unit, and is not specified in
the load diagram. The values may be limited by the permissible load-bearing capacity of the pallet
forks/fork arms.
3100 kg
(6834.3 lb)
3500 kg
(7716.2 lb)
Movable payload
2
Transport position:
Safety factor 1.67
2300 kg
(5070.6 lb)
2600 kg
(5732.0 lb)
B
C
A
Fig. 318
Payload
1
(500 mm (19.68 in)
load distance)
1. Version 352-03 S with pallet forks 1000308375
352-03S 352-04S / 352-04L
Payload (A)
safety factor 1.25
2500 kg
(5511.6 lb)
2550 kg
(5621.8 lb)
Payload (B)
safety factor 1.67
1,850 kg
(4,078.6 lb)
1900 kg
(4188.8 lb)
Movable payload
2
Transport position:
Safety factor 1.25
2. The movable payload is only authorized in transport position of the loader unit, and is not specified in
the load diagram. The values may be limited by the permissible load-bearing capacity of the pallet forks
/ fork arms.
3100 kg
(6834.3 lb)
3100 kg
(6834.3 lb)
Movable payload
2
Transport position
Safety factor 1.67
2300 kg
(5070.6 lb)
2300 kg
(5070.6 lb)
