PT-871/2-KIT, PT-871/2xr-KIT, WP-871xr, WP-872xr, PT-871xr, PT-872xr – Connecting Device
Connecting WP-871xr, and WP-872xr/PT-872xr
For illustrative purposes, the figure below shows PT-872xr as the receiver, but the same
connections apply when using WP-872xr as the receiver.

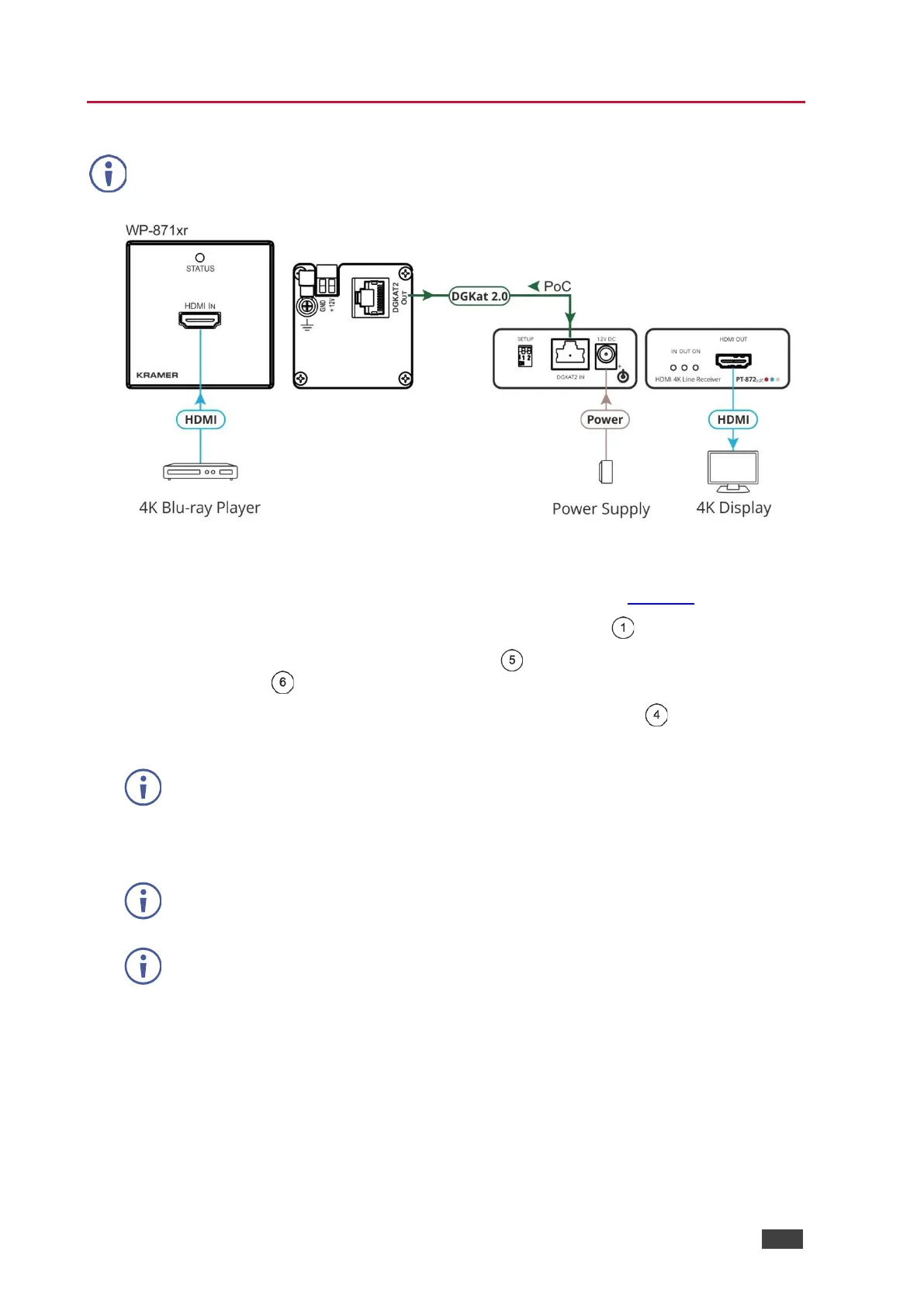

Figure 10: Connecting to WP-871xr and PT-872xr
To connect WP-871xr and WP-872xr/PT-872xr as illustrated in Figure 9:
1. Connect the HDMI video source to the HDMI IN Connector on WP-871xr.
2. Connect the DGKat2 OUT RJ-45 Connector on WP-871xr to the DGKAT2 IN RJ-
45 Connector on the PT-872xr (WP-872xr) receiver using a DGKat 2.0 cable.
3. Connect the HDMI video acceptor to the HDMI OUT Connector on the PT-872xr
(WP-872xr) receiver.
Make sure PT-872xr DIP-switch 1 is set to ON (down = high-compression).
WP-872xr only supports high compression.
4. Connect the power adapter to the PT-872xr (WP-872xr) receiver.
Alternatively, you can connect the WP-871xr power adapter and PT-872xr is
powered by PoC.
We recommend that you use only the power cord that is supplied with the PT-872xr/
(WP-872xr) receiver.
