Your TP-114 1:4 XGA / HD DA /CAT5 Transmitter
5
4 Your TP-114 1:4 XGA / HD DA /CAT5 Transmitter

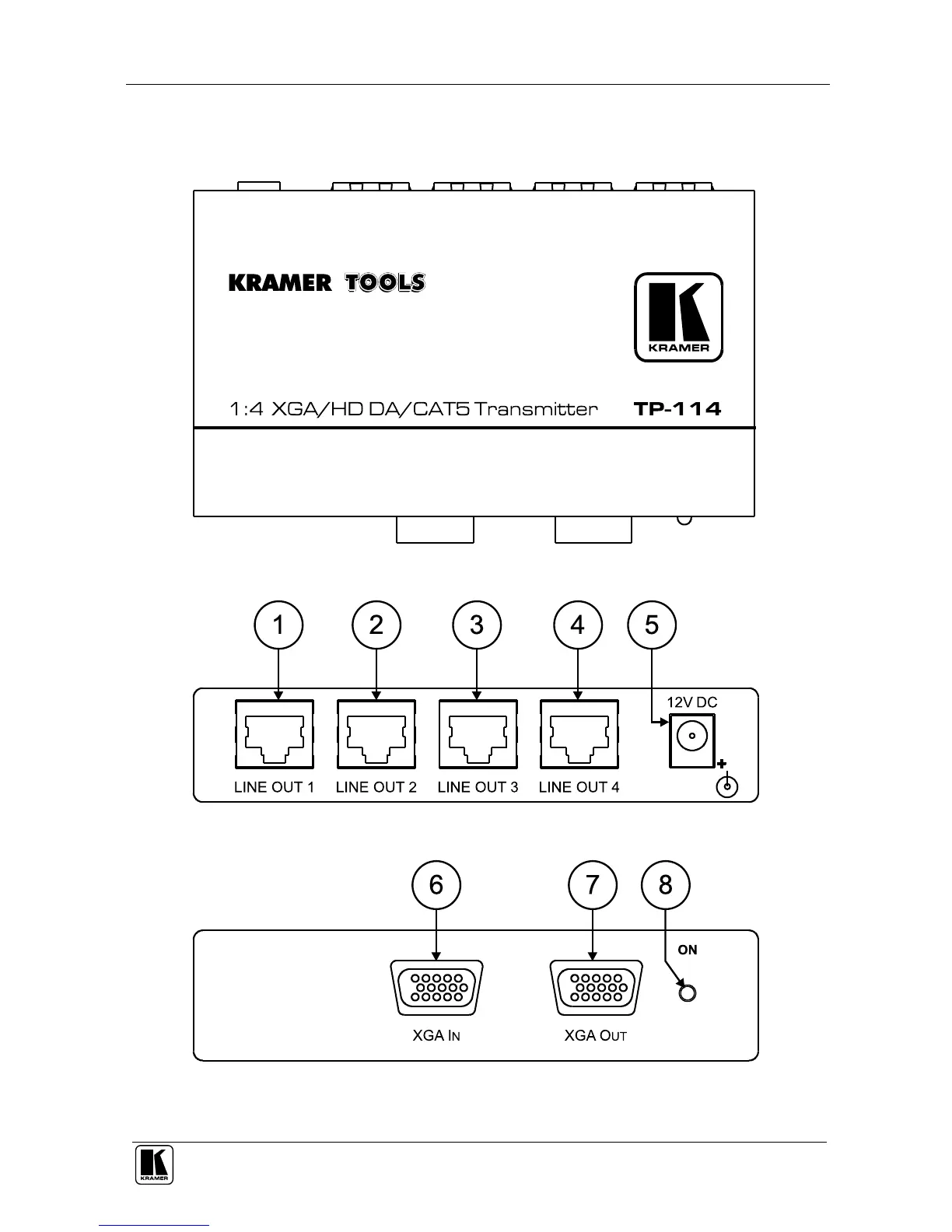

Figure 1, Figure 2, Figure 3 and Table 1 define the TP-114:
Figure 1: TP-114 1:4 XGA / HD DA /CAT5 Transmitter
Figure 2: TP-114 1:4 XGA / HD DA /CAT5 Transmitter (Top Side Panel)
Figure 3: TP-114 1:4 XGA / HD DA /CAT5 Transmitter (Lower Side Panel)
