Your HDMI Line Transmitters/Receiver
8
4.3 Your TP-582R HDMI Line Receiver DA
Figure 3 and Table 3 define the TP-582R:

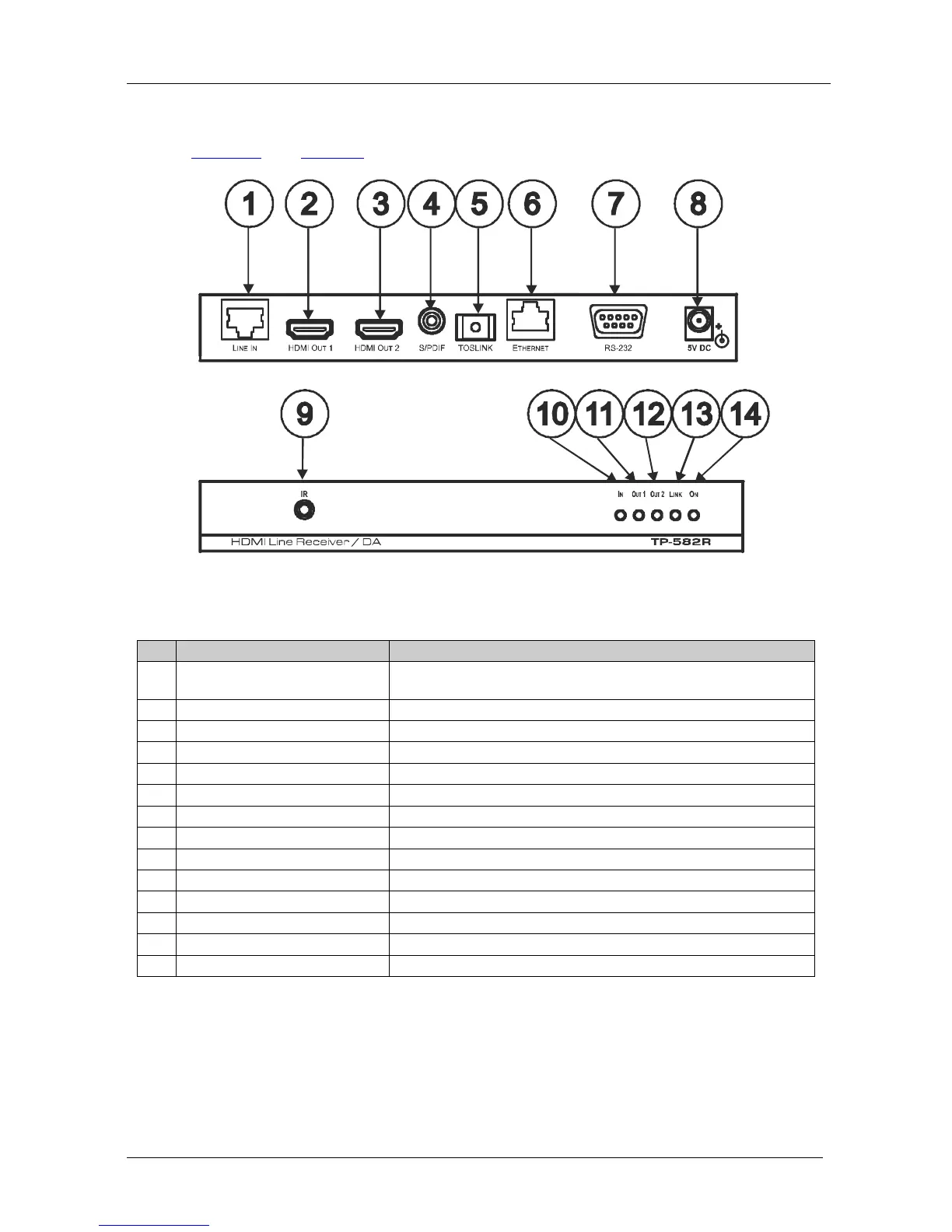

Figure 3: TP-582R HDMI Line Receiver DA
Table 3: TP-582R HDMI Switcher/Line Receiver Features
#
Feature
Function
1
LINE IN RJ-45 Connector
Connects to the CAT 5 OUT RJ-45 connector on the TP-581T or
TP-582T
2
HDMI OUT 1 Connector
Connects to the HDMI acceptor 1
3
HDMI OUT 2 Connector
Connects to the HDMI acceptor 2
4
S/PDIF Connector
Connects to a digital audio acceptor
5
TOSLINK® Connector
Connects to an optical audio acceptor
6
ETHERNET Connector
Connects to a network
7
RS-232 9-pin D-sub Connector
Connects to an RS-232 port
8
5V DC
+5V DC connector for powering the unit
9
IR 3.5mm Mini Jack Connector
Connects to an external infrared transmitter/sensor (receiver)
10
IN LED
Lights when an input device is connected
11
OUT 1 LED
Lights when the HDMI 1 output device is connected
12
OUT 2 LED
Lights when the HDMI 2 output device is connected
13
LINK LED
Lights when the TP connection is active
14
ON LED
Lights when receiving power
