4 Your HDMI Line Transmitters/Receiver
This section describes the:
 TP-581T HDMI Line Transmitter, see Section 4.1
 TP-582T HDMI Switcher/Line Transmitter, see Section 4.2
 TP-582R HDMI Line Receiver DA, see Section 4.3
4.1 Your TP-581T HDMI Line Transmitter

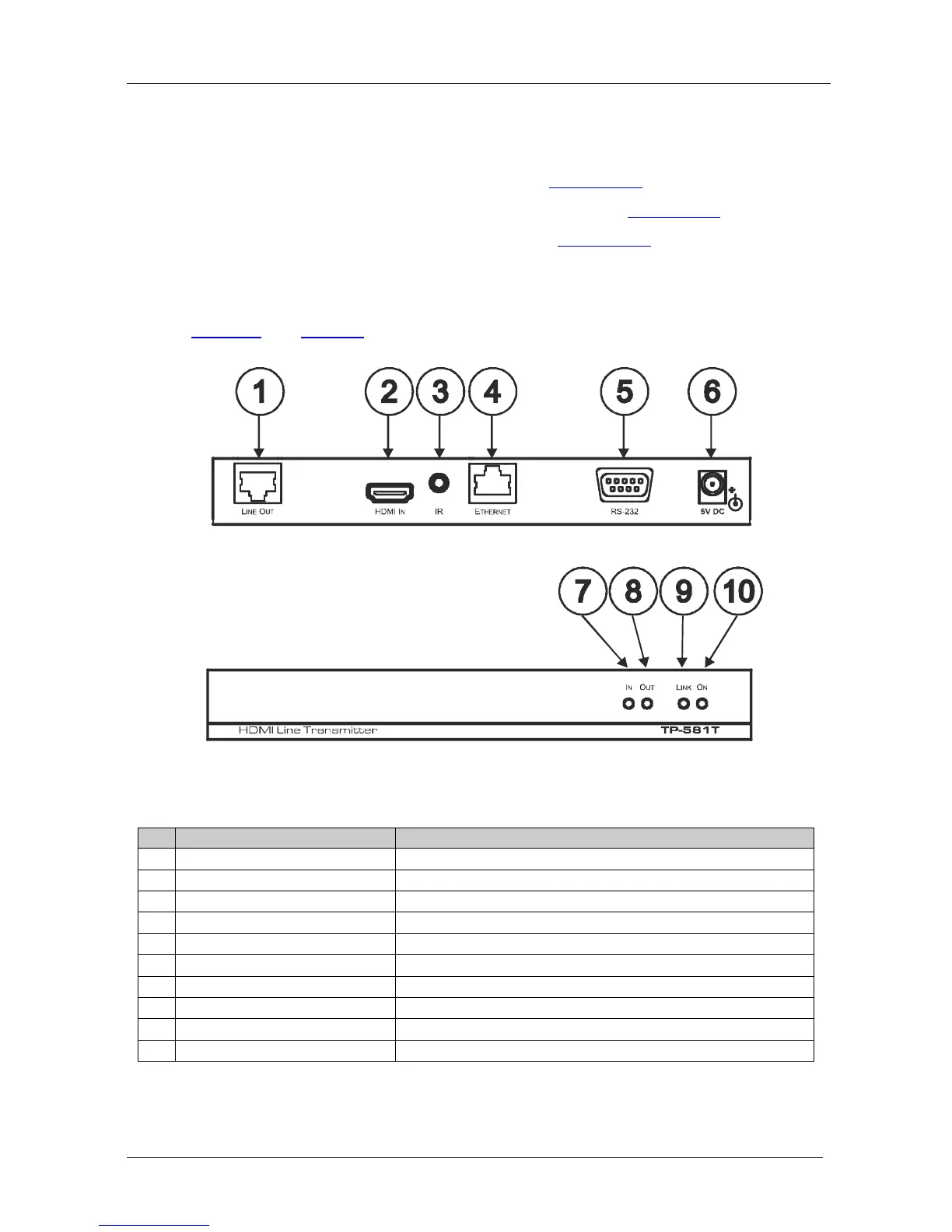

Figure 1 and Table 1 define the TP-581T:
Figure 1: TP-581T HDMI Line Transmitter
Table 1: TP-581T HDMI Line Transmitter Features
#
Feature
Function
1
LINE OUT RJ-45 Connector
Connects to the CAT 5 IN RJ-45 connector on the TP-582R
2
HDMI IN Connector
Connects to the HDMI source
3
IR 3.5mm Mini Jack Connector
Connects to an external infrared transmitter / sensor (receiver)
4
ETHERNET Connector
Connects to a network
5
RS-232 9-pin D-sub Connector
Connects to an RS-232 port
6
5V DC
+5V DC connector for powering the unit
7
IN LED
Lights when an HDMI input device is connected
8
OUT LED
Lights when an HDMI output device is detected
9
LINK LED
Lights when the TP connection is active
10
ON LED
Lights when receiving power
