TP-583Txr, TP-583Rxr, TP-583T, TP-583R – Defining TP-583Txr and TP-583T
4
Defining TP-583Txr and TP-583T
This section defines TP-583Txr and TP-583T.

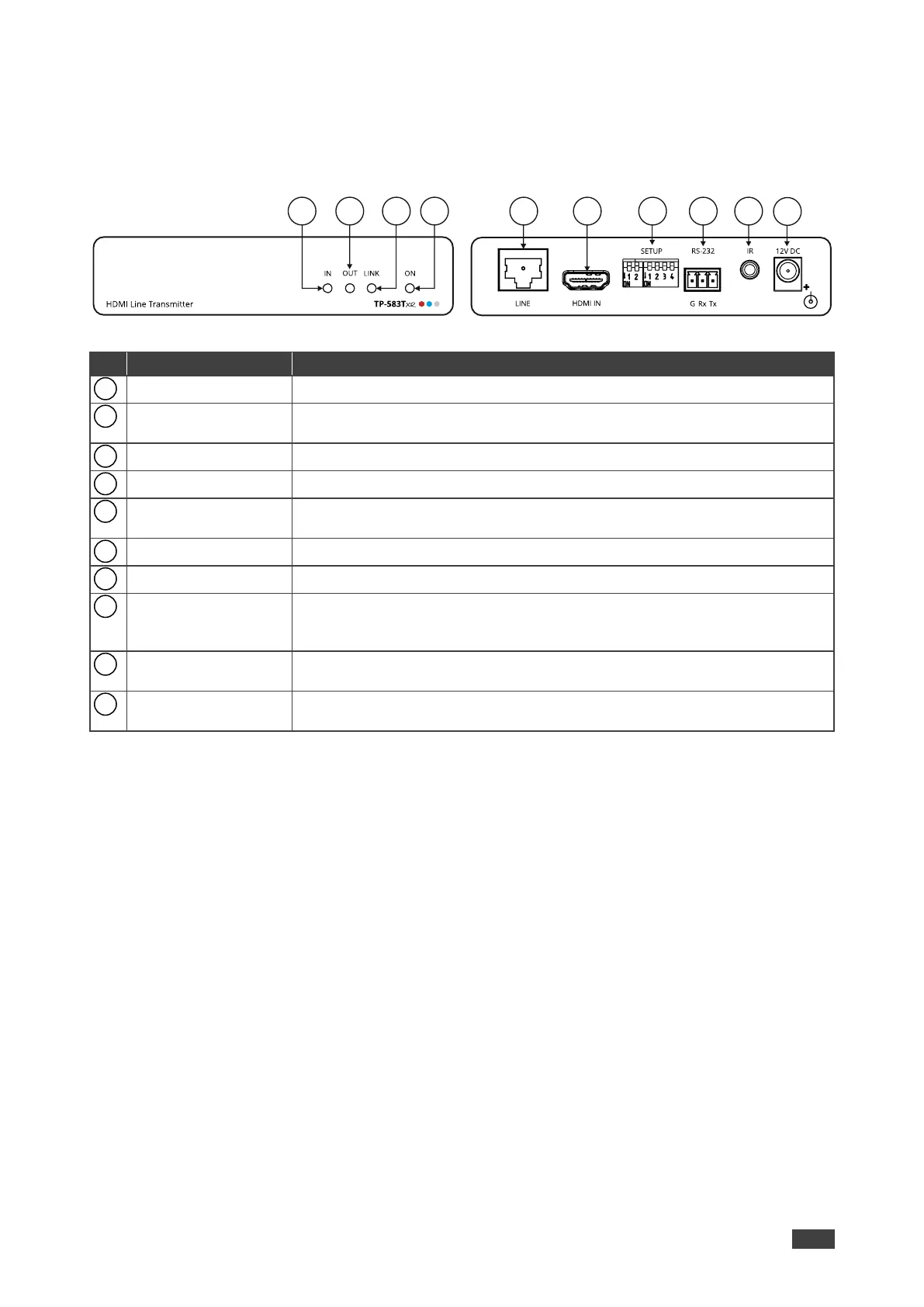

Figure 1: TP-583Txr HDMI Line Transmitter
#
Feature
Function
IN LED
Lights green when an active source device input signal is detected.
OUT LED
Lights green when an active, far-end sink (acceptor) connection is detected
via the HDBT link.
LINK LED
Lights green when an HDBT link is established with the HDBaseT receiver.
ON LED
Lights green when the device receives power.
LINE RJ-45 Connector
Connect to the RJ-45 HDBT LINE connector on a receiver (for example,
TP-583Rxr/R, TP-580Rxr/R and so on).
HDMI™ IN Connector
Connect to an HDMI source.
SETUP DIP-switches
Set the operation DIP-switches.
RS-232 (G, Rx, Tx)
3-pin Terminal Block
Connector
Connect to a controller device (for example, SL-240C) to serially control a
remote device (for example, the HDMI OUT acceptor) that is connected to
TP-583Rxr/TP-583R.
IR 3.5mm Mini Jack
Connector
Connect to an external infrared emitter / sensor.
12V DC Power
Connector
12V DC connector for powering the unit.
1 2 3 4 5 6 7 8 9
10
1
2
3
4
5
6
7
8
9
10
