Wiring the Twisted Pair RJ-45 Connectors
15
15
6 Wiring the Twisted Pair RJ-45 Connectors
When using STP cable, connect/solder the cable shield to the RJ-45 connector
shield.
Figure 8 defines the TP pinout using a straight pin-to-pin cable with RJ-45
connectors.
i
Note, that the cable Ground shielding must be connected/soldered to
the connector shield.
EIA /TIA 568B

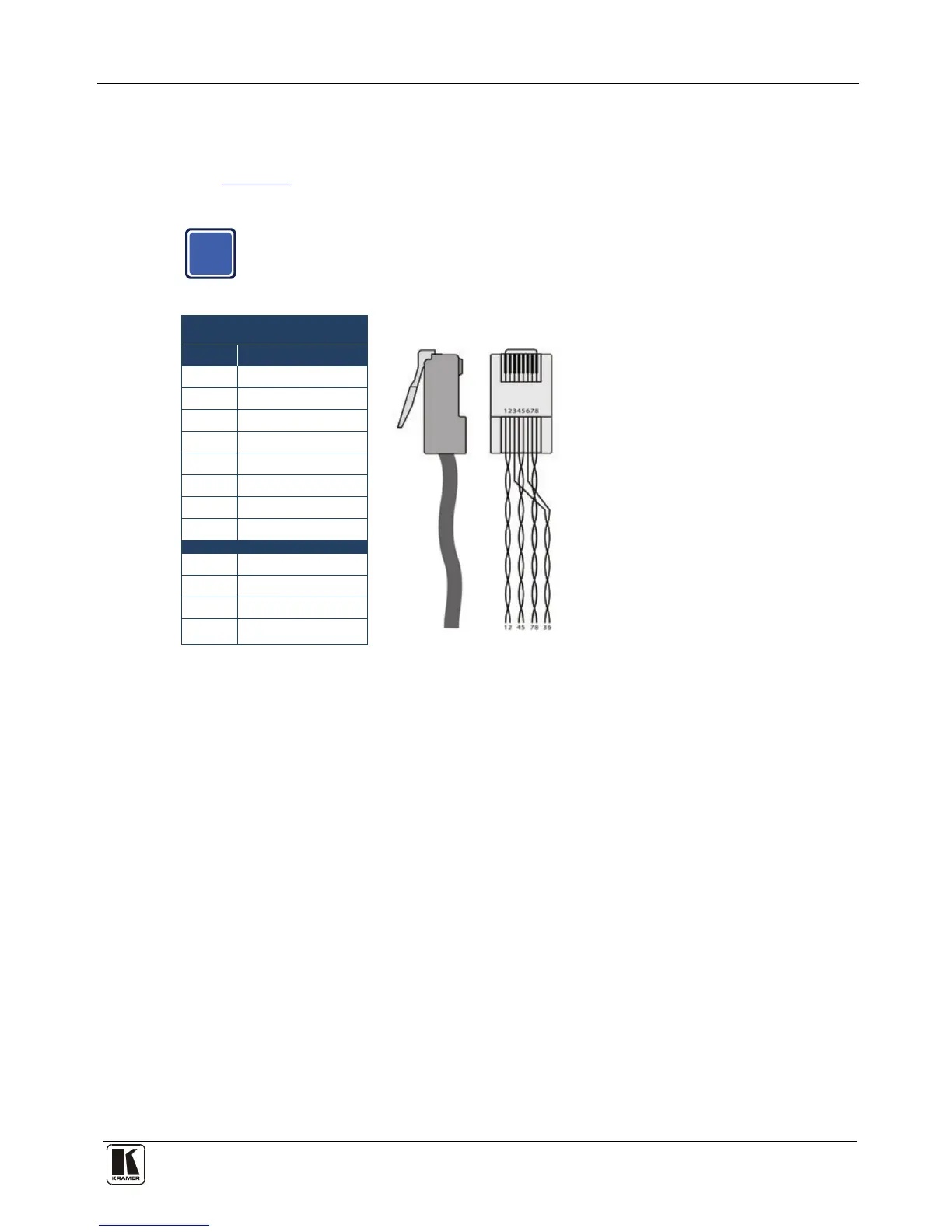

Figure 8: CAT 5 Pinout
PIN Wire Color
1 Orange / White
2 Orange
3 Green / White
4 Blue
5 Blue / White
6 Green
7 Brown / White
8 Brown
Pair 1 4 and 5
Pair 2 1 and 2
Pair 3 3 and 6
Pair 4 7 and 8
