Your VS-211H Automatic HDMI Standby Switcher
4 Your VS-211H Automatic HDMI Standby Switcher

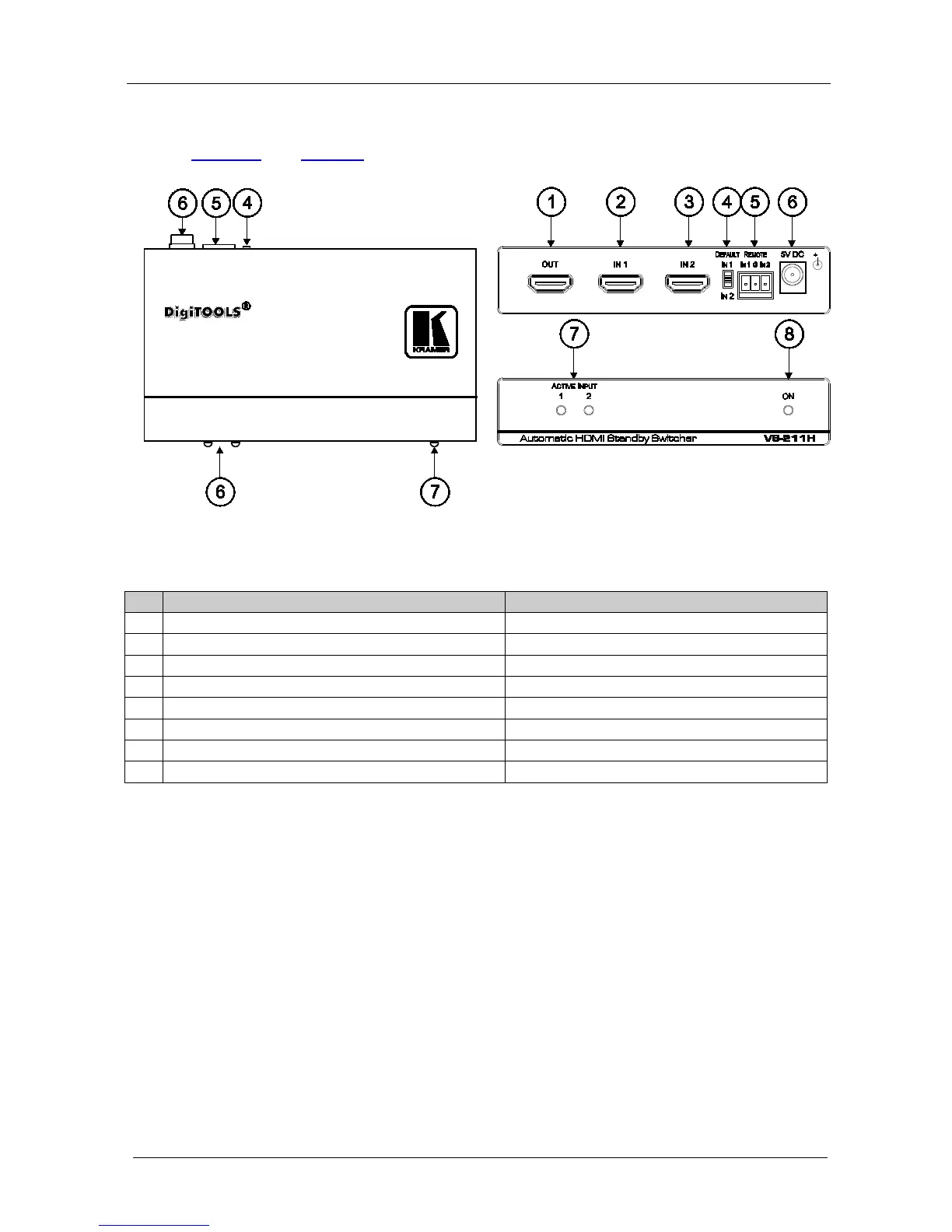

Figure 1 and Table 1 define the VS-211H:
Figure 1: VS-211H Automatic HDMI Standby Switcher
Table 1: VS-211H Automatic HDMI Standby Switcher Features
1 OUT HDMI Connector Connects to the HDMI output acceptor
2 IN 1 HDMI Connector Connects to the HDMI input source 1
3 IN 2 HDMI Connector Connects to the HDMI input source 2
4 DEFAULT INPUT Switch Switches to select the default input (IN 1 or IN 2)
5 REMOTE IN 1 and IN 2 Terminal Block Connectors Connect to a contact closure switch
6 5V DC +5V DC connector for powering the unit
7 ACTIVE INPUT 1,2 LEDs Illuminates when input is active
8 ON LED Illuminates when receiving power
