Using the VS-211H Automatic HDMI Standby Switcher
7
5.3 Connecting the REMOTE Terminal Block Connector
Regardless of the default input switch setting, you can force the switching
of the active input by remote control. To do this, connect the appropriate
REMOTE input terminal block connector pins to a contact closure switch
1
Figure 3
(see ).
• To force IN 1: connect REMOTE IN1 to PIN G (ground)
• To force IN 2: connect REMOTE IN2 to PIN G (ground)
Do not connect both the REMOTE IN1 and the REMOTE IN2
to PIN G simultaneously
Attach PIN IN1 to
PIN G to activate
INPUT 1
Attach PIN IN2 to
PIN G to activate
INPUT 2

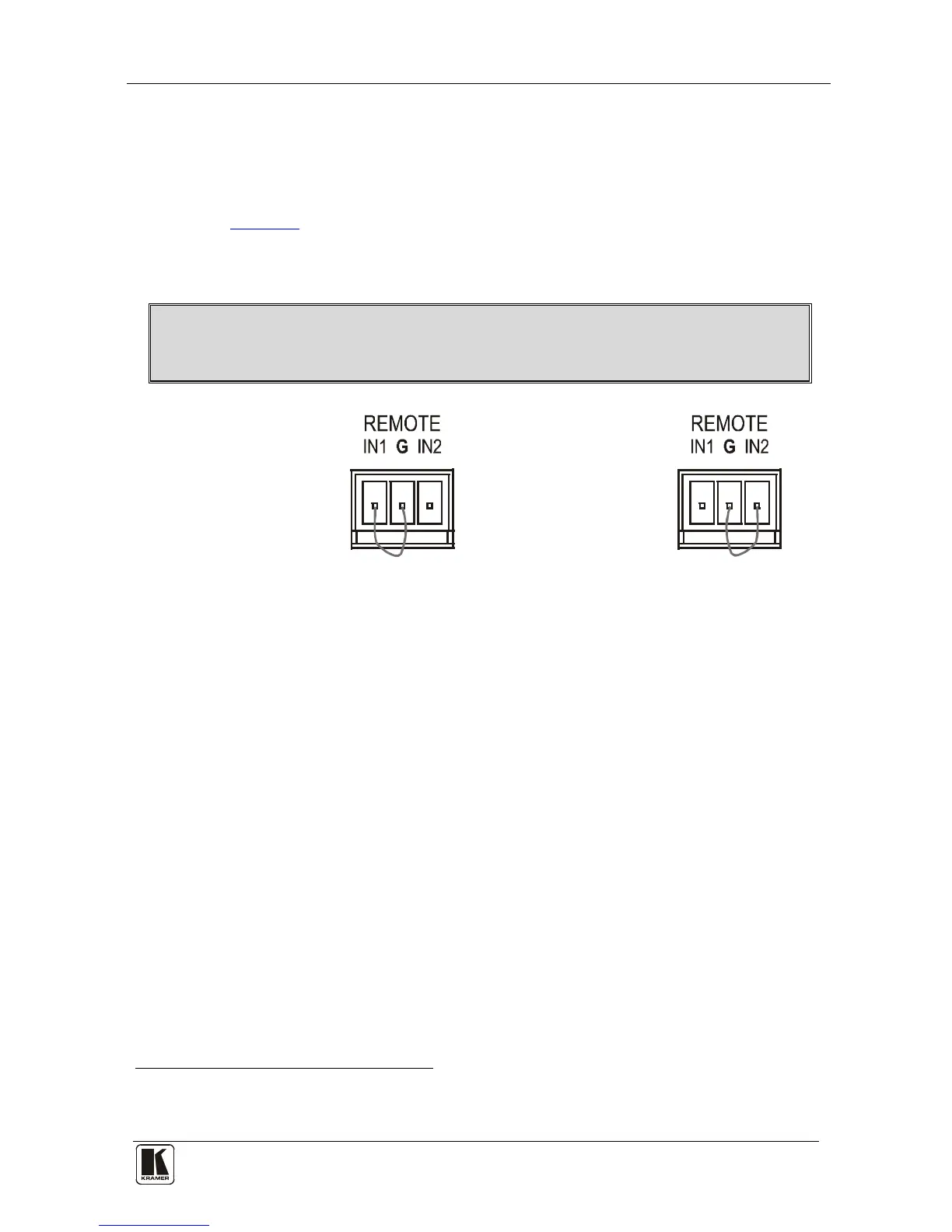

Figure 3: REMOTE Terminal Block Connector
Note: The contact closure setting remains in effect until an event occurs
such as changing the default input switch or connecting or attaching an
HDMI device.
1 Note that the connection should be permanent, since the VS-211H reverts to an automatic switcher when the connection is
removed
