20

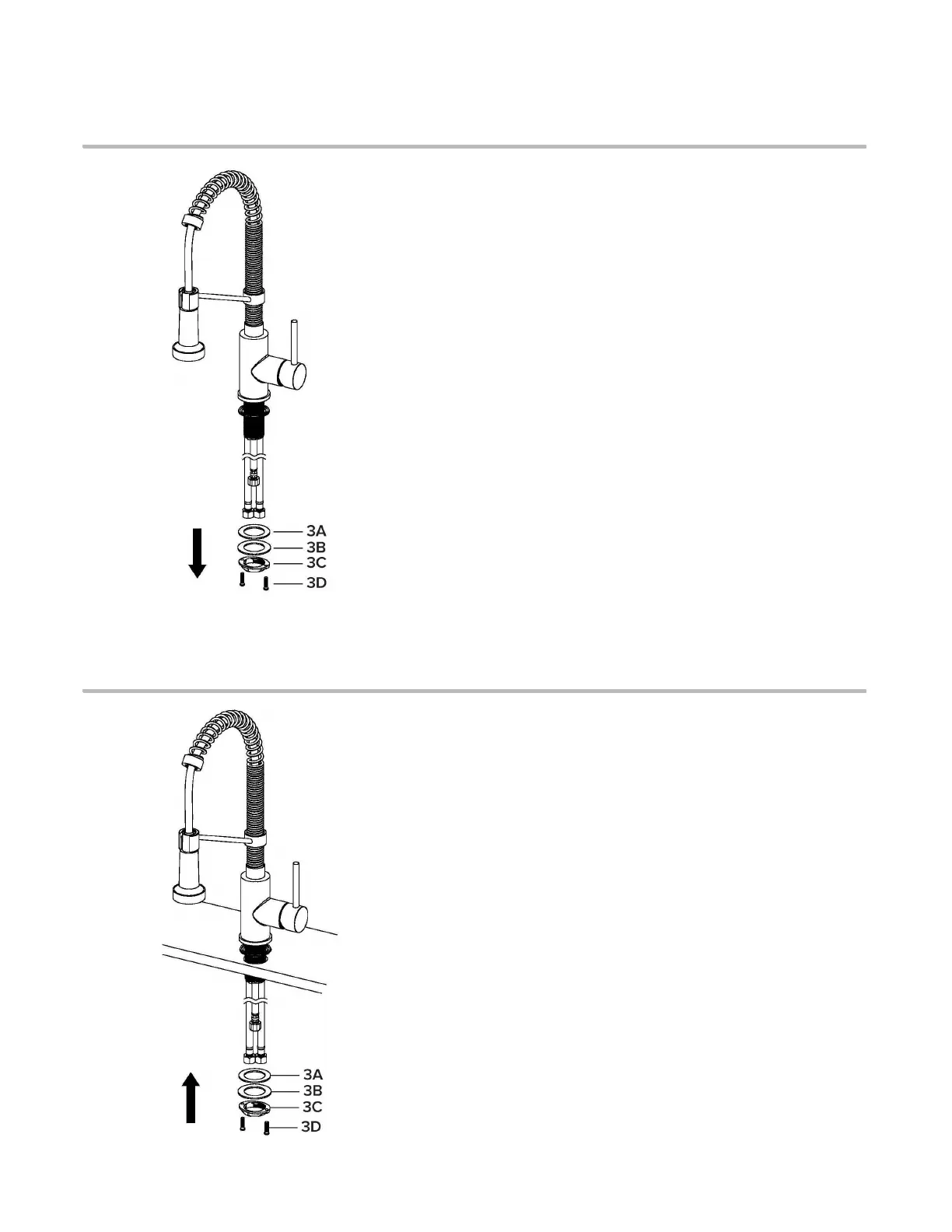

1. Remove mounting hardware
· Remove the mounting screws (3D), mounting nut (3C), metal (3B)
and rubber washer (3A) from the mounting pipe.
2. Install faucet mounting hardware
· Insert faucet body (2) into hole in countertop. Install mounting
hardware (3A, B, C & D) from underneath the countertop.
