Kreg 520PRO - Drilling and Driving Pocket-Hole Screws

6
Operation - Drilling and Driving
Pocket-HoleScrews
1
Drill Pocket Holes
WARNING When drilling, always ensure the workpiece is clamped securely.

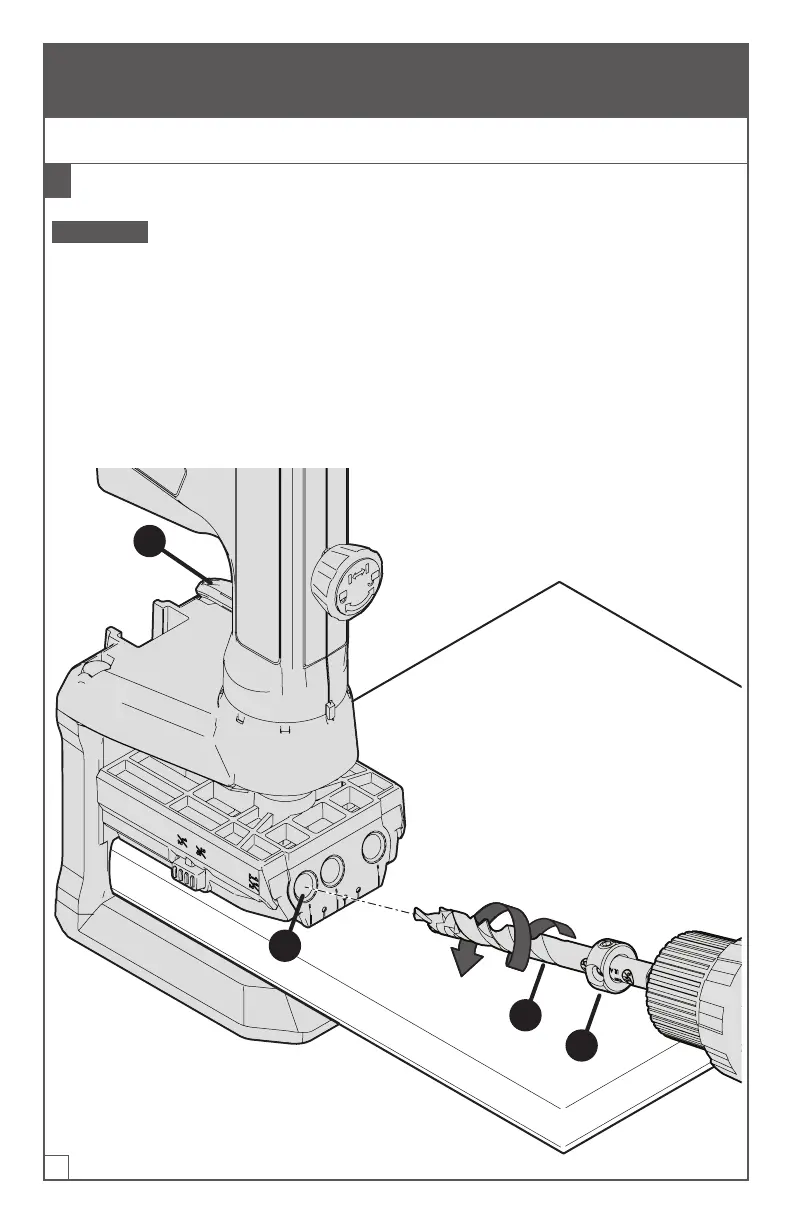

a. Place your prepared drill bit (B) with stop collar (D) into your drill.
b. Insert your drill bit into the drill guide (1) and bring your drill up to speed before
contacting the workpiece to ensure correct rotation of the drill bit.
c. Drill until the stop collar (D) stops going any deeper due to contact between the
stop collar (D) and drill guide (1). Remove the drill bit (B) from the drill guide while
the drill bit is still rotating.
d. When done drilling pocket hole(s), pull the trigger (2) to release the clamping
pressure and remove your workpiece.
1
D
B
2
