Kreg Adaptive Cutting System Parallel Guides User Manual

ASSEMBLE & CALIBRATE

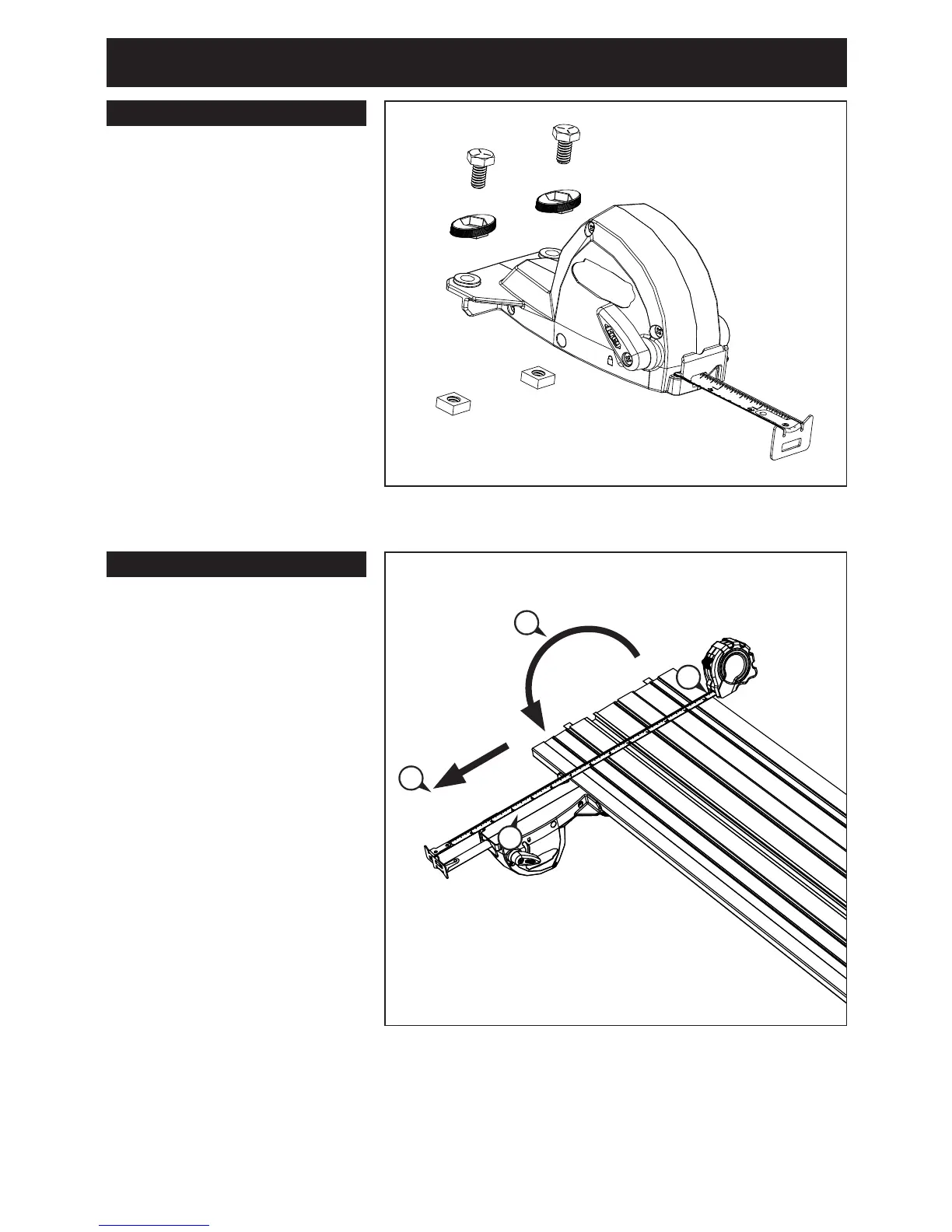

(1) Install two bolts,
handles, and square
nuts in each guide
body. Tighten the
assemblies to draw
the bolt heads into the
handles. Loosen the
assemblies ½ turn so
the nuts will slide into
the guide-track T-slot.
(1) Turn the guide track
upside down. Slide
the square nuts into
the guide track T-slot.
Tighten the knobs.
(2) Using a good-quality
tape rule, push the
end of the tape
against the hook on
the end of the Parallel
Guide tape rule.
(3) Extend both tapes
and align the 14" mark
on your tape rule with
the trimmed edge of
the guide track
anti-chip strip.
(4) Lock the Parallel
Guide tape rule. (The
rule-lock lever covers
the lock symbol on the
guide body.)
Assemble
Calibrate
3
4
2
1
