Kreg Adaptive Cutting System Rip Guides - Calibrate Rip Guides

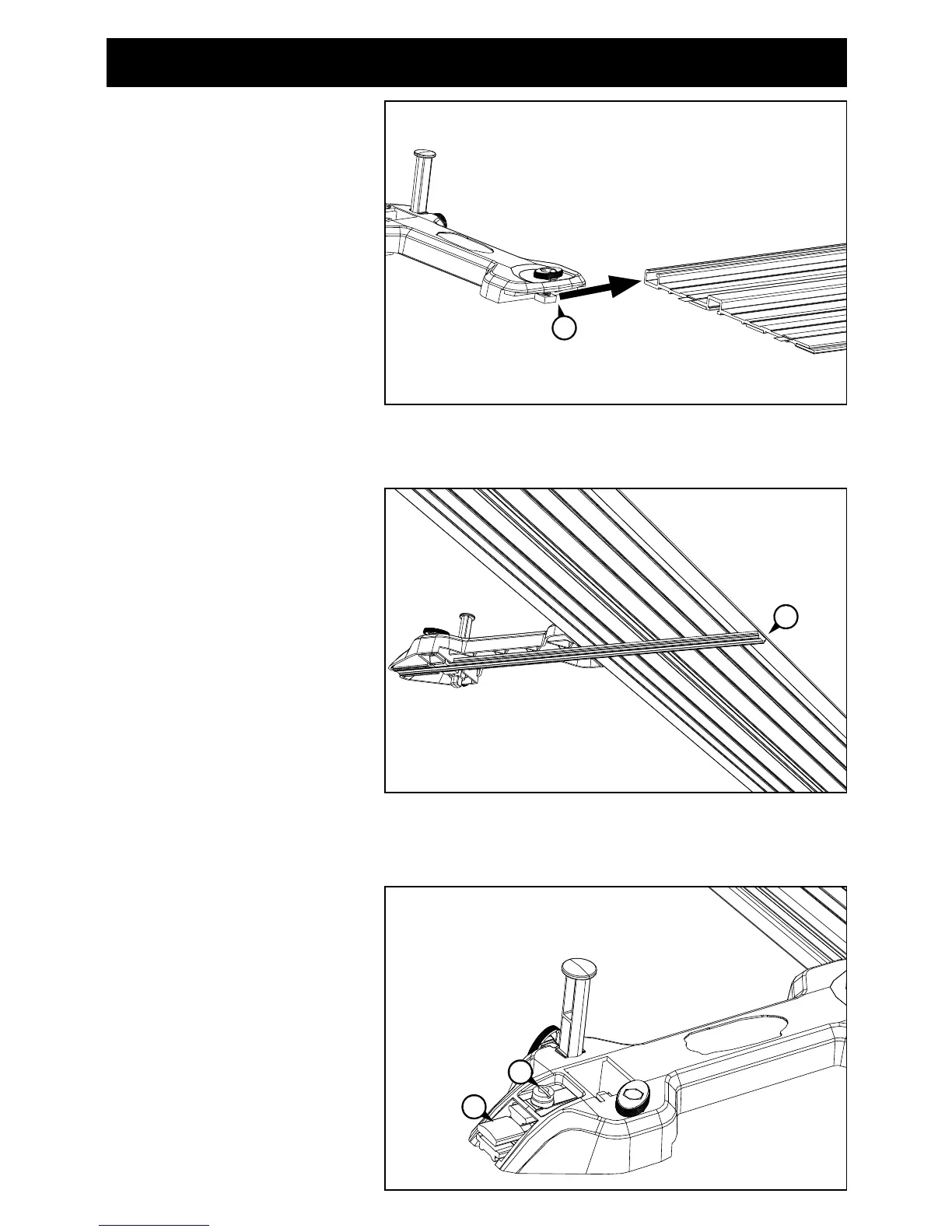

CALIBRATE
(1) Slide the square nut into
the guide track T-slot.
Tighten the knob.
(2) Extend the stop bar
under the guide track
until the end of the bar
aligns with the
trimmed edge of the
anti-chip strip. Tighten
the wedge knob.
(3) Loosen the lens
screw and align the
lens hairline with
the stop-bar zero
mark. Tighten the
screw. Repeat these
steps to calibrate the
second Rip Guide.
1
3
3
2
