Assembly
7.
Rotate the ¼-turn fence-lock handles (15) clockwise (locked position).
If the fence (16) can be moved with moderate pressure, tighten
the fence-lock screws (17). Rotate the handles counterclockwise
(unlocked position) and verify that the fence moves freely.
Should it ever be necessary to disassemble the fence locks, the
fence-lock bases (18) must be oriented with the at area indicated in
the drawing facing the fence.

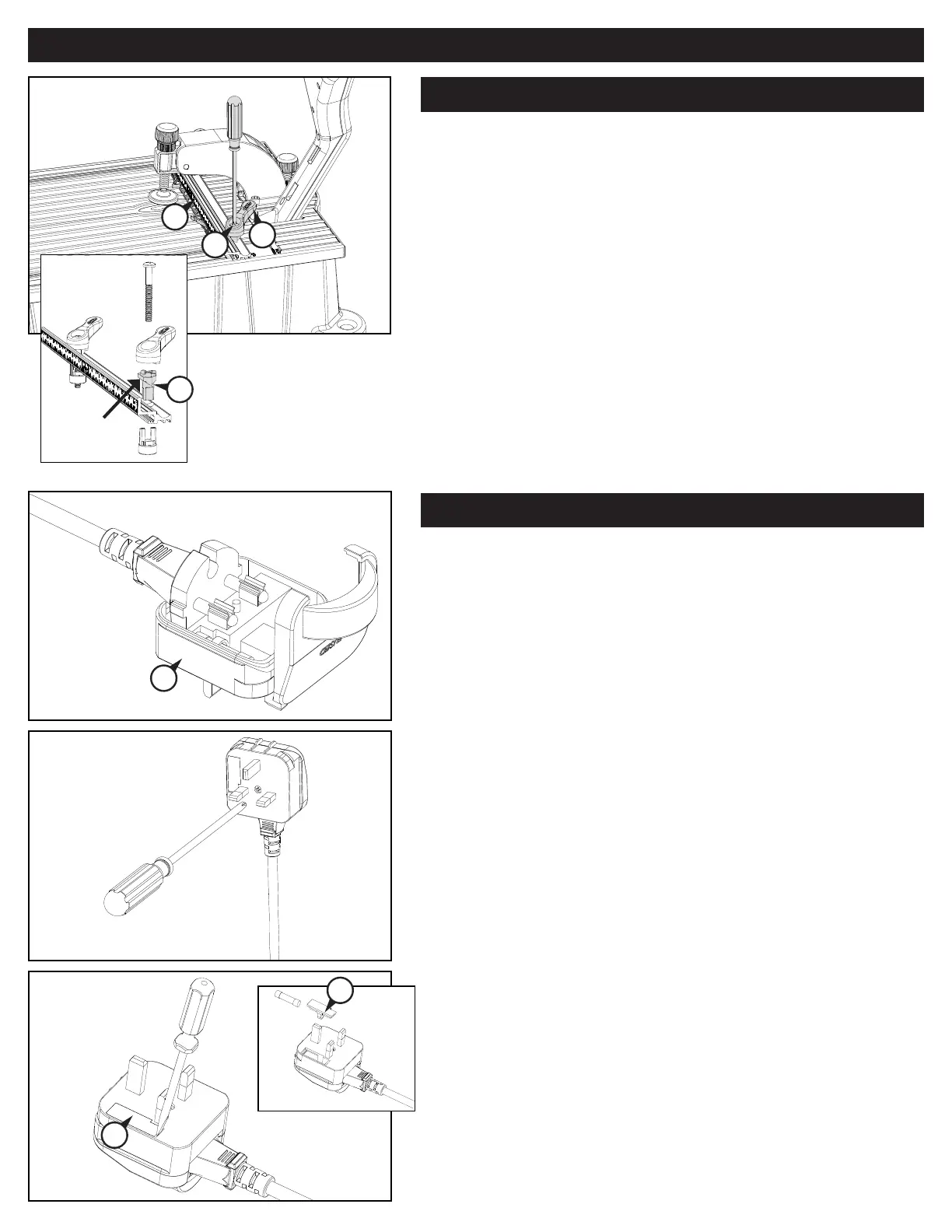

Adjust the fence-lock pressure
16
17
15
18
at area
Open the hinged UK plug converter (19) cover. Position the two-pin
plug that is molded onto the power cord in the converter, snapping
the pins into the terminal clips.
Install the plug converter
The converter features a replaceable fuse. To replace the fuse,
pry the fuse holder (20) out of the converter base with a small
screwdriver. Position a new fuse in the holder and press the holder
into the converter base, making sure the holder is fully seated.
Close the converter cover and secure it by tightening the captured
machine screw located between the horizontal plug blades.
19
20
20
