5
2

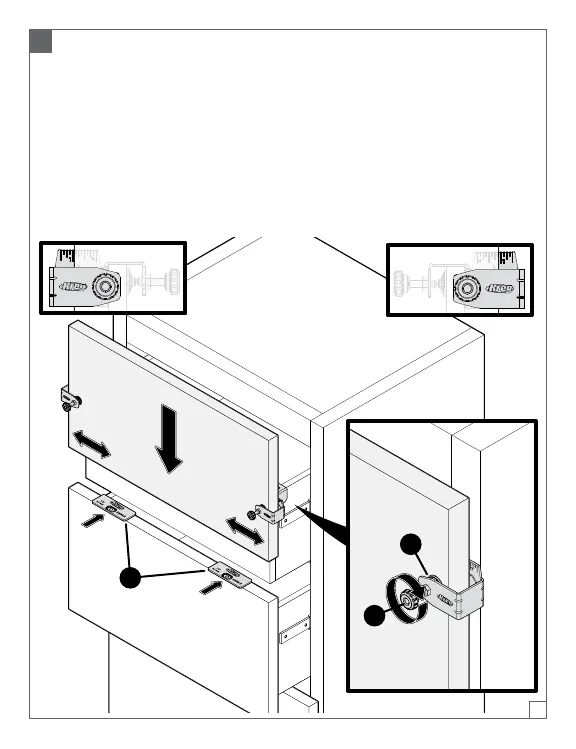

Place Drawer Front
a. Slide the drawer front into the mounting clamps. Use the positioning
indicator measurements to place the drawer front as close to centered as
possible.
b. Tighten front clamping knobs (2) enough to hold in place, but loose enough
to allow adjustment.
c. Using a spacer, tape measure, or the Kreg Setup and Spacer Shim set(C)
(included in -PRO system only) position the drawer front in the exact
desiredlocation while the drawer is closed.
d. Tighten front clamping knobs (2) to hold rmly in position.
B
2
C
To Next Page
