Operation
Before using the Kreg Drawer Front Mounting Jig, ensure that you have at least
1/4" (7 mm) of space on each side between the drawer box and the cabinet
side or face frame.
If the drawer has side mounted slides, the upper edge of the drawer slide must
be at least 1-3/4" (45 mm) down from the top of the drawer box.
1

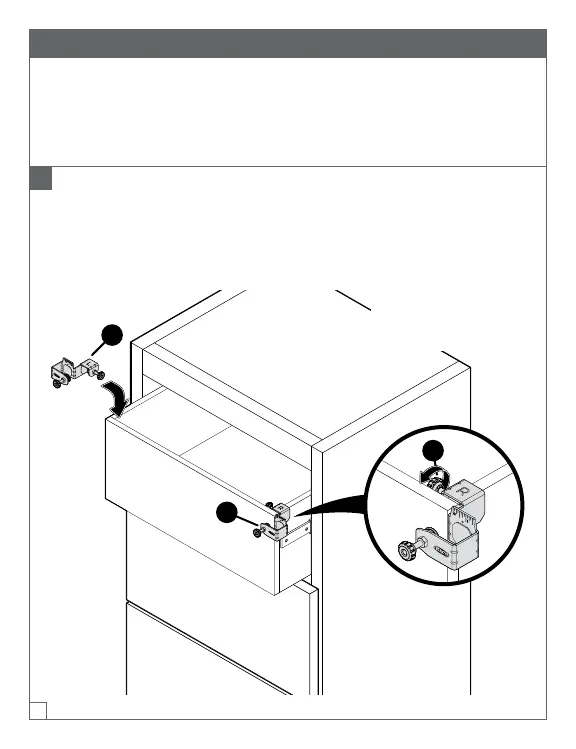

Place Drawer Front Mounting Clamps
a. Place the clamps (A and B) on top of the drawer box.
b. Align the clamps so that the face with the positioning indicator
measurements is ush with the front of the drawer box.
c. Tighten the drawer box clamping knobs (1).
A
B
L for the left side
R for the right side
