Kreg KPHJ920 - Assembly Instructions; Set the Stop Collar; Position the Material Thickness Stop; Configure the Jig

4
Assembly
1

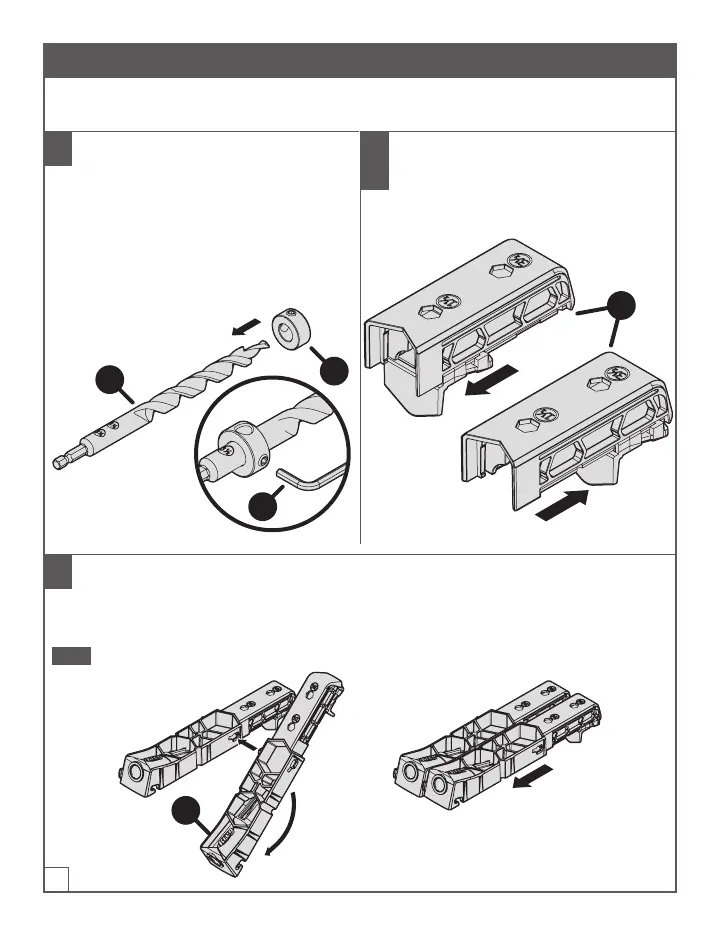

Set the Stop Collar
a. Measure the edge of the workpiece.
b. Slide the easy-set stop collar (D) so
the desired setting on the drill bit (C)
is centered in the easy-set stop collar
window.
c. Tighten the easy-set stop collar (D) with
the hex wrench (F).
F
D
C
2
Position the Material
Thickness Stop
a. Push and slide the material thickness
stop (B) to the desired setting.
B
3
Congure the Jig
a. Insert and rotate the drill guide (A) into the other drill guide.
b. Slide the drill guide forward to join.
Note To remove, pull back and rotate the drill guide to separate.
A
