5
Operation
1

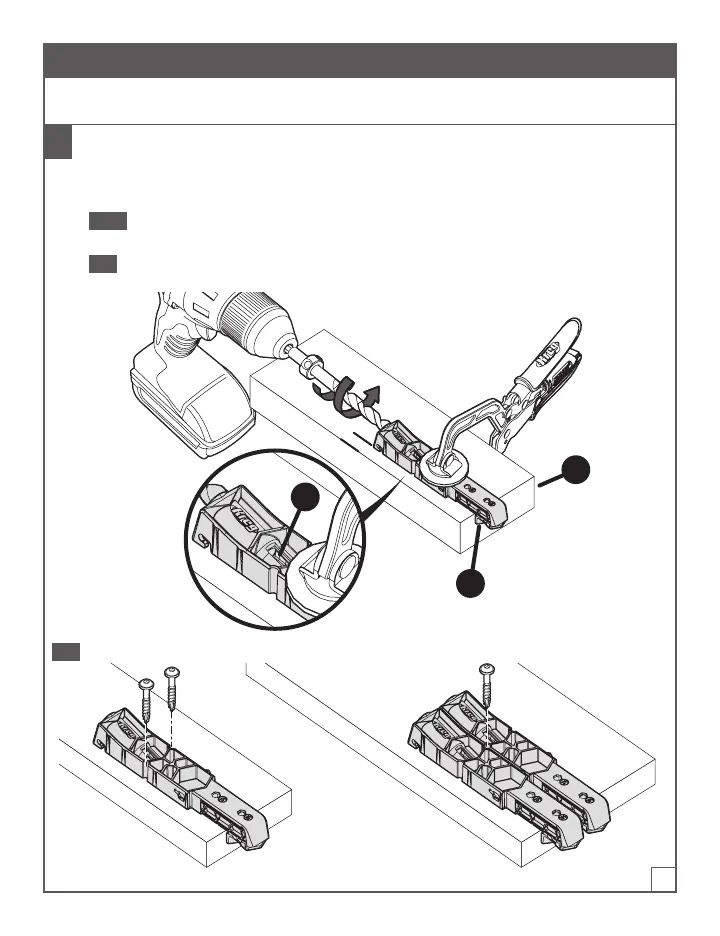

Clamp the Jig and Drill the Holes
a. Align the material thickness stop (B) to the edge of the workpiece (1).
b. Clamp the jig to the piece.
Note Do not block the chip ejection hole (2).
c. Drill the pocket hole.
Tip Place pocket holes at the recommended distance from edge (X) of the workpiece.
Seenext section for recommendations.
X
1
B
2
Tip If you cannot use a clamp, secure the jig with screws in the screw recesses.
