Parts Parts

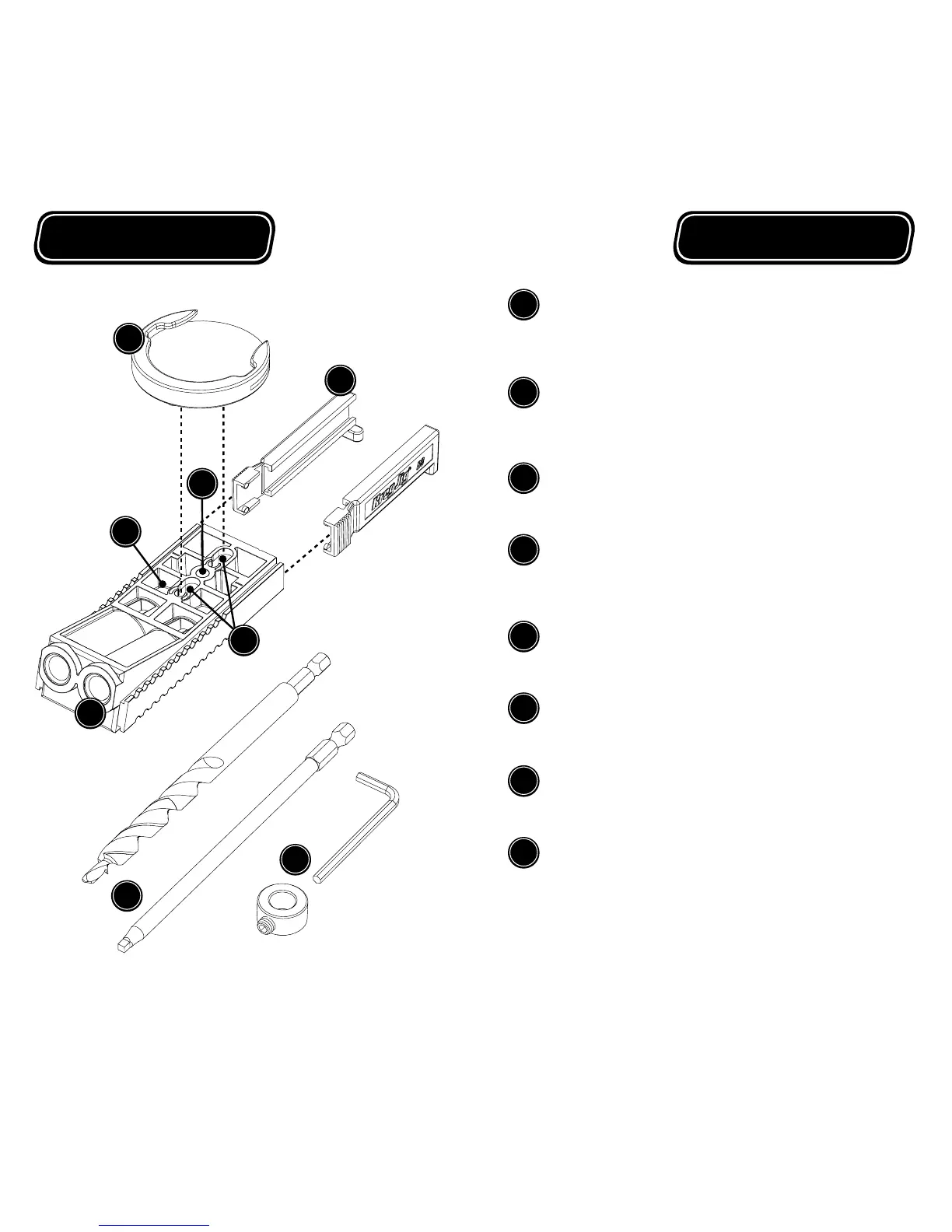

Clamp Pad Adapter:
The adapter accepts the large pad of all Kreg face clamps and
snaps into the back of the jig, turning clamp and jig into one
assembly for fast jig positioning.
A
Drill Guide:
This two-hole drill guide keeps your drilling stroke straight and
true. The hardened steel guides are guaranteed for the life of
the tool.
B
Easy-Press
™
Positioning Sliders:
Adjust these two sliders with a press of your thumb to set the jig
for different workpiece thicknesses.
C
Chip Release Holes:
Two holes at the base of each drill guide allow wood chips to escape
for fast drilling, reduced heat build-up, and longer drill bit life.
D
Mounting Hole:
For tight locations where you can’t use a clamp, secure the jig to
the workpiece by driving a wood screw through this hole.
E
Clamp Adapter Holes:
Two key-hole slots provide tool-less attachment for the clamp pad
adapter.
F
Stop Collar | Hex Spanner:
Set drilling depth by positioning the stop collar on the drill-bit
shank.
G
9.5 mm (⅜″) Stepped Drill Bit | No.2 Square Driver:
The special drill bit, made of hardened high-speed steel, drills the
pocket hole and pilot hole in one operation. The 152 mm [6″]-long
driver bit provides clearance to keep your drill/driver aligned with
the pocket screw.
H
A
B
C
D
F
G
H
E
