Kreg r3 User Manual

4-
www.kregtool.com
2

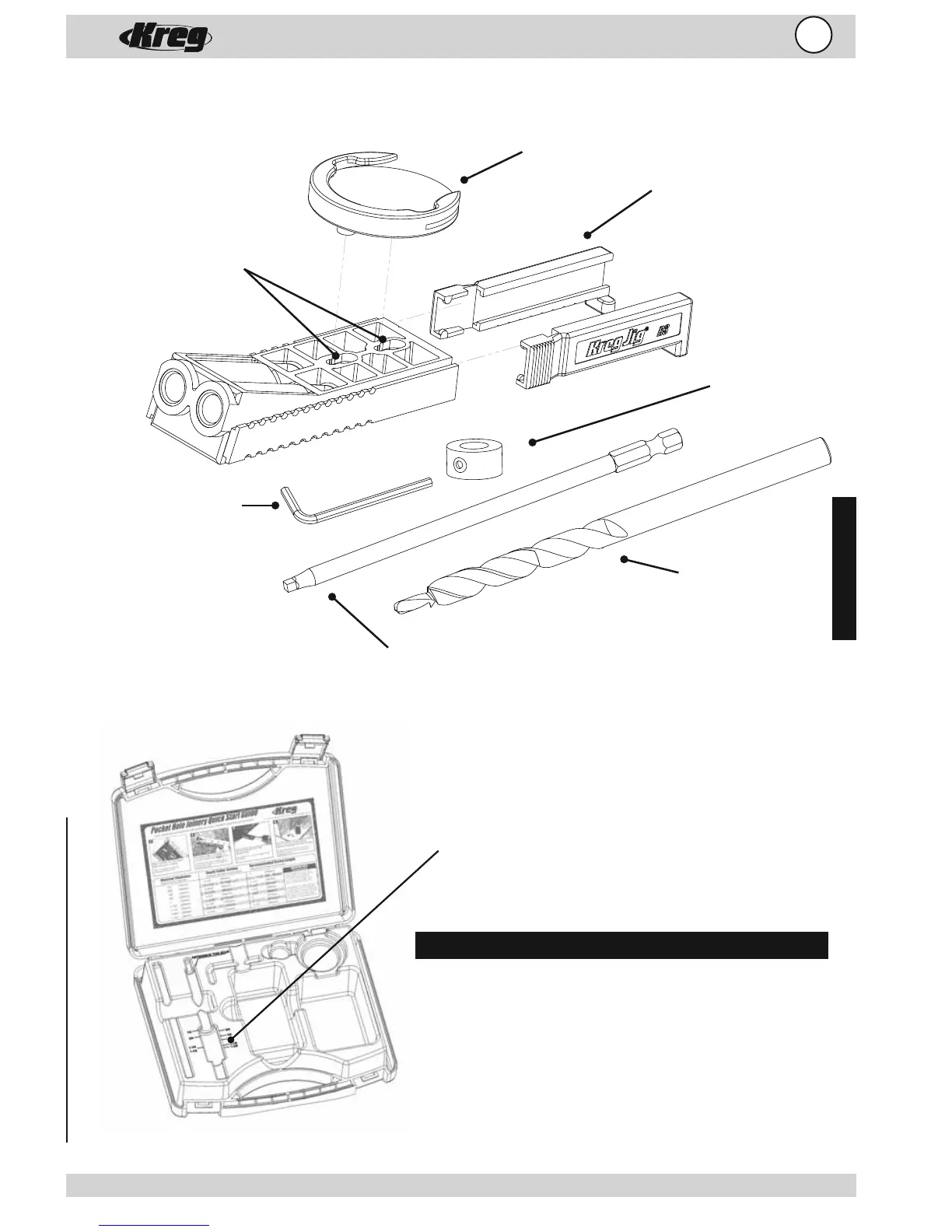

Parts Identifi cation
Mounting holes
allow you to
screw the jig to
the workpiece
for drilling. The
clamp adapter
snaps into these
holes for use
with the
optional face
clamp.
Clamp adapter can be used with the
optional face clamp (not included) for
clamping the jig in place while drilling.
Set the sliders for the
thickness of the
workpiece you’ll be
drilling as indicated on
the jig body.
The square driver bit
drives our specially-
designed Pocket Hole
screws without slipping.
The step drill bit
makes quick work out
of drilling the guide
hole for the screw and
the Pocket Hole in
one quick operation.
Allen wrench
secures the
depth collar on
the drill bit.
KJD ............................................ Step Drill Bit
D6 ............................................... 6”- #2 Square Driver Bit
AW18 .......................................... Allen Wrench
KJSC .......................................... Depth Collar
Sliders ....................................... Sliders
Clamp Adapter .......................... Clamp Adapter
Jig Body with Drill Guides ....... Jig Body with Drill Guides
Part Number Description
Use the handy scale molded into the case
to set the depth collar on the drill bit to the
correct position. The numbers indicate the
thickness of the material you’ll be drilling.
Depth collar fi ts
the drill bit to control
the depth of the
Pocket Hole.
English

Kreg r3 Specifications

General

Type	Pocket Hole Jig
Clamping Method	Toggle clamp
Adjustable Depth	Yes
Drill Bit Size	3/8 inch
Wood Thickness Capacity	1/2 inch to 1-1/2 inch
Pocket Hole Size	3/8 inch
Includes	Stepped Drill Bit, Depth Collar, Allen Wrench, Screws
Material	Plastic
Screw Sizes	#6, #7, #8, #9
