Kreg Straight Edge Guide - Assembly; Prepare the Upper Connector Bars; Assemble the Connector Bars

5
Assembly

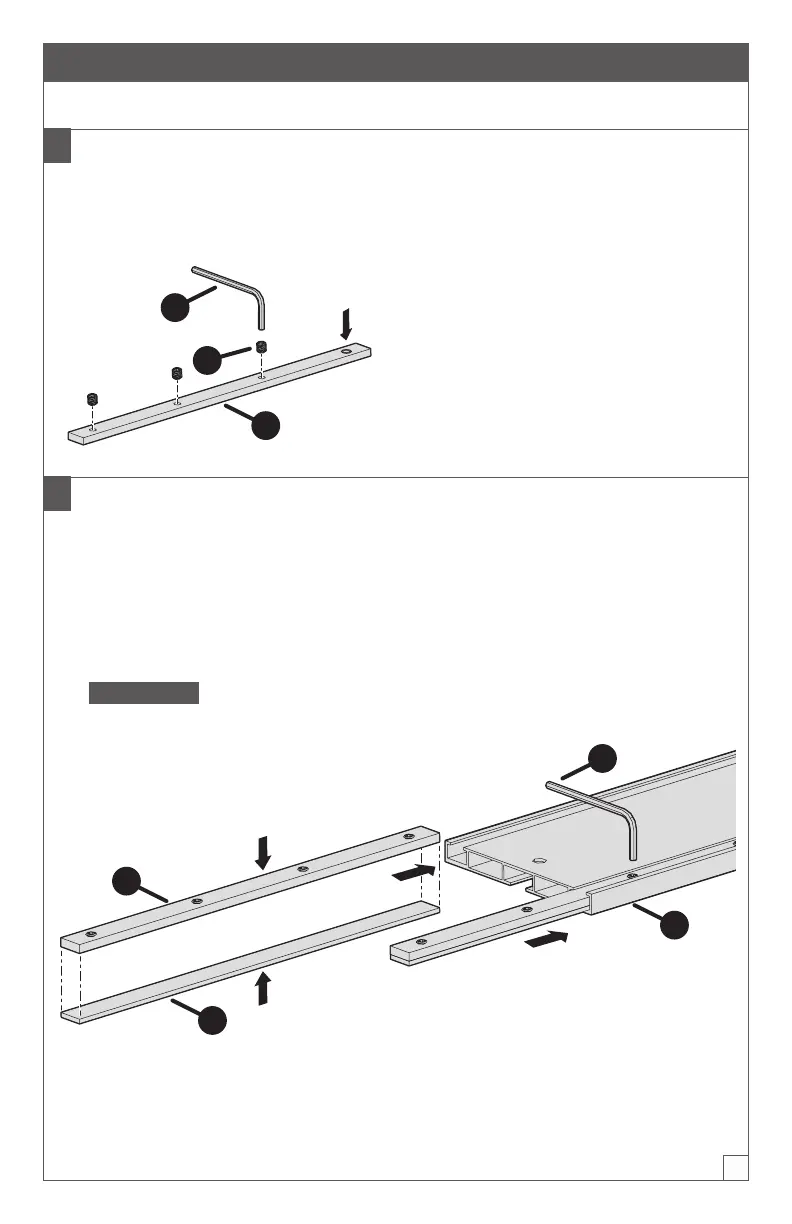

1 Prepare the Upper Connector Bars
a. Thread all of the set screws (AA) into
the upper connector bars (A).
b. Use the hex wrench (DD) to thread
into place.
A
AA
DD
2 Assemble the Connector Bars
a. Place an upper connector bar (A) over a lower connector bar (B) and slide this
assembly into the channel of the guide rail with GripMaxx
™
clamp (C), leaving
about half of the connector bar assembly out of the channel.
b. Repeat for the other channel of the guide rail with GripMaxx
™
clamp (C).
c. Partially snug the screws in the connector bars using the hex wrench (DD). This
ensures the connector bars t snugly into place in the channels.
ATTENTION Do not fully tighten the set screws. This will occur in step 3.
C
B
A
DD
