2.7.9 Temperatures
2.7.10 Hot filling

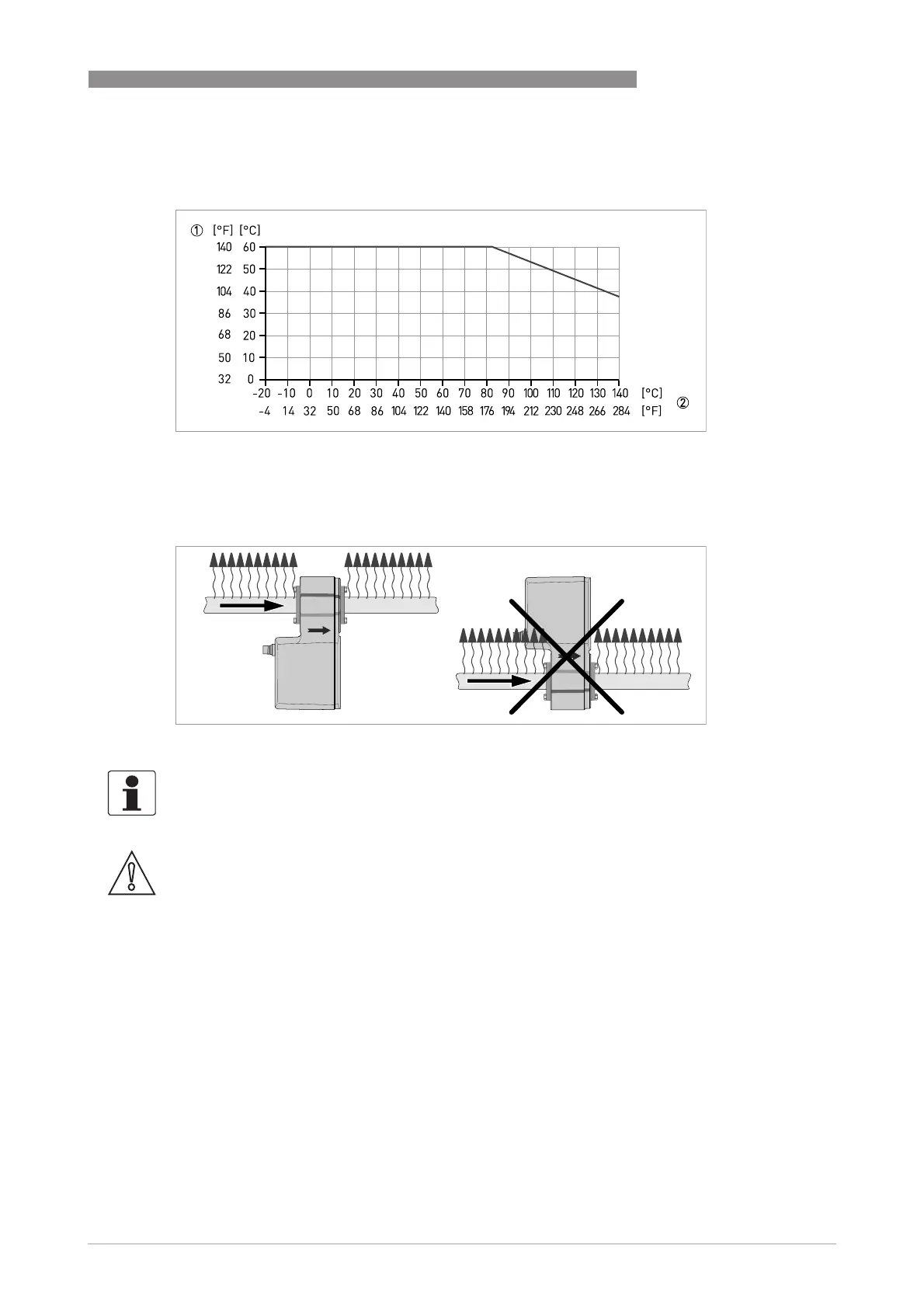

Process temperature vs ambient temperature
1 Ambient temperature
2 Process temperature
Installation position
Figure 2-14: In case of hot fluids
INFORMATION!
Avoid installation near hot product tanks. If possible, try to insulate the flowmeter from radiant
heat sources.
CAUTION!
On high temperature pipes and where temperatures exceed 100
°
C, provide facilities to
compensate for longditudinal expansion of pipeline (due to heat-up). Use flexible pipe elements
(e.g. elbows).
