2 INSTALLATION
8
BATCHFLUX 5500 C
www.krohne.com 05/2014 - 4003386301 - QS BATCHFLUX 5500 R03 en
2.7 Installation conditions
2.7.1 Inlet and outlet
2.7.2 Control valve
2.7.3 Pump
∠α > 2°
1. Drain valve (to empty pipeline)

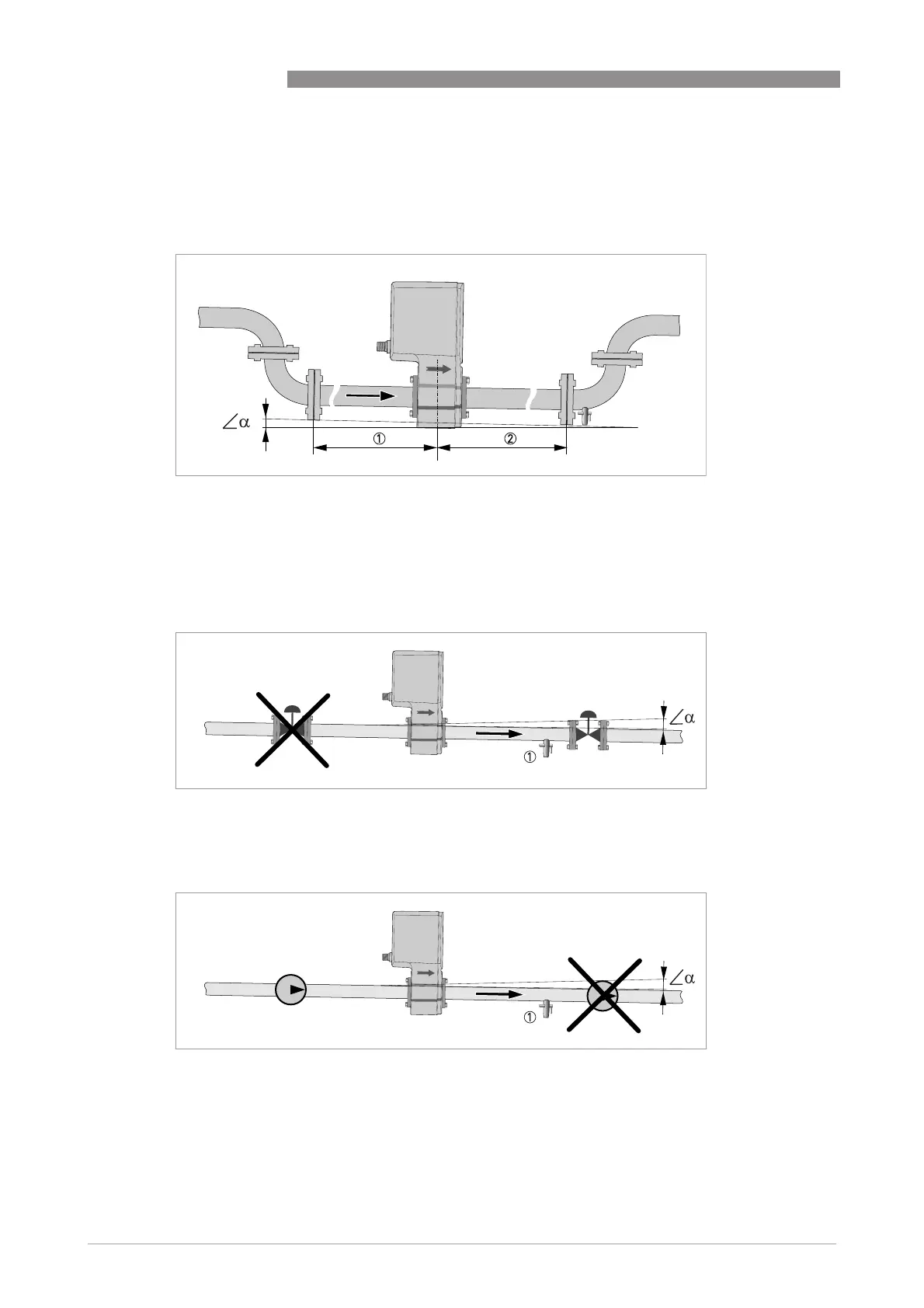

Figure 2-7: Inlet and outlet section
1 ≥ 5 DN
2 ≥ 2 DN
3 Drain valve (to empty pipeline)
3
Figure 2-8: Installation before control valve
Figure 2-9: Installation after pump
