3.3 Electrical connection

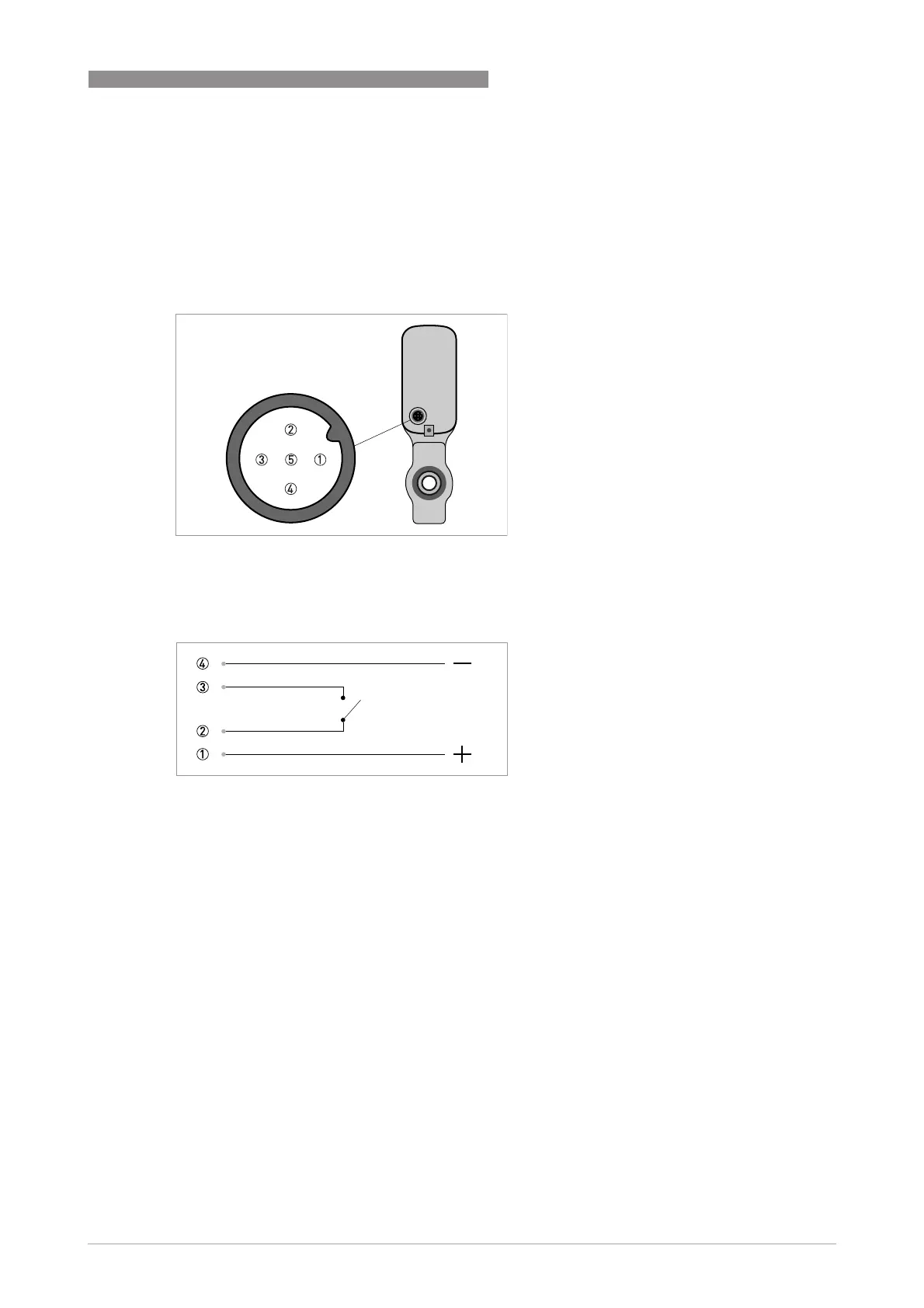

3.3.1 Cable connector M12 - 5 pin
All operating data for the BATCHFLUX 5500 C are preset at the factory. For changing the
parameters and diagnostic purposes BATCHMon plus operation software can be used.
Use one of the following attachment plug types to connect the flowmeter to a third
party system:
• moulded plug, straight or angle-entry form
• integrally extruded plug with cable in various lengths
• moulded plug, straight form, especially suitable for high-interference environments
Possible vendors of these plugs are:
• Binder
• Hirschmann
• Lumberg
• Amphenol
• Coninvers
1 +24 VDC
2 Frequency output
3 Frequency output (ground)
4 Ground
5 To be connected for servicing only
